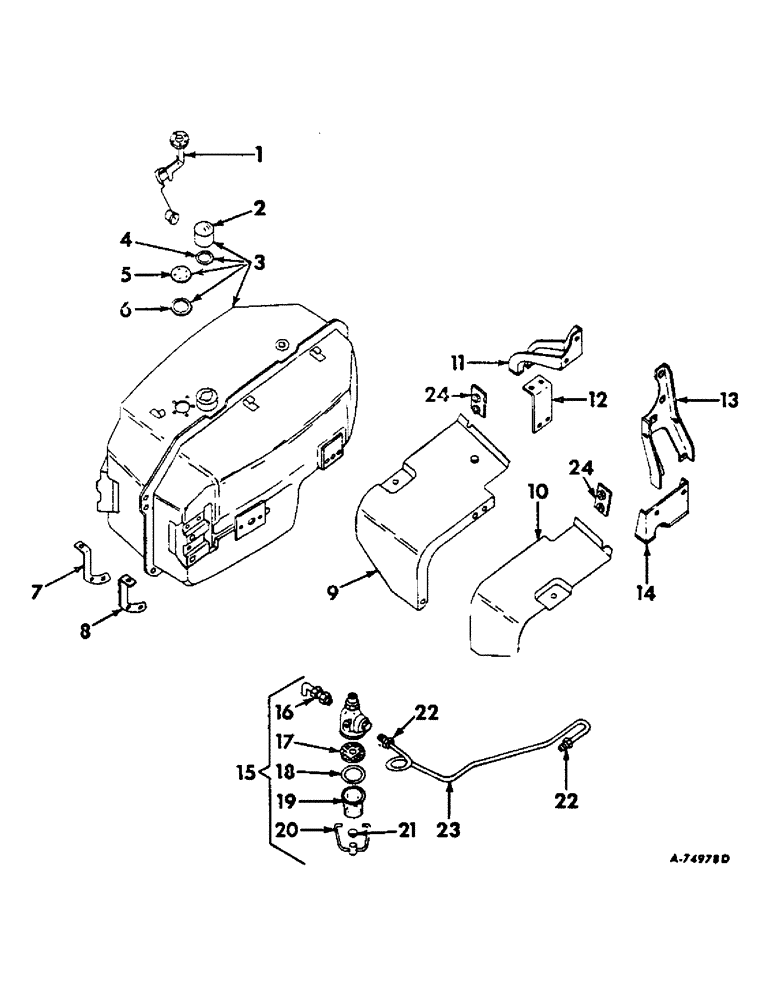

Запчасти Case IH 806 (E-08) - FUEL SYSTEM, FUEL TANK SUPPORTS AND PIPING, GASOLINE ENGINE TRACTORS (02) - FUEL SYSTEM

1

378427R91

GAUGE

SENDING UNIT ASSY, electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

2

361910R91

PLUG

CAP W/GASKET, fuel tank filler

1шт.

3

381379R92

TANK ASSY, fuel

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage, used with .543 -.548 square holes

4шт.

389117R91

NUT

5/16-18 floating cage, used with .582-.587 square hole

4шт.

444686

PLUG

3/8-16 automotive sq-hd pipe

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

4

23977DB

GASKET

fuel tank filler cap

1шт.

5

369155R1

COVER, fuel gauge sending unit opening, tractors w/o electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Cover mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

6

369154R1

GASKET

sending unit and cover

1шт.

7

384196R1

BRACKET, fuel tank rear support, LH

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

8

384197R1

BRACKET, fuel tank rear support, RH

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

9

386117R31

SHIELD ASSY, lower LH heat

1шт.

Also order tab assy, 386119R11 if tractor is already not so equipped.

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 hex-washer-hd cap

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

10

386118R21

SHIELD ASSY, lower RH heat

1шт.

Also order tab assy, 386119R11 if tractor is already not so equipped.

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

3шт.

369222R91

SCREW, 5/16-18 x 5/8 hex-easher-hd cap

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

11

382365R11

SUPPORT ASSY, fuel tank LH front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

12

382363R11

SUPPORT ASSY, fuel tank lower LH front

1шт.

102635

NUT,3/8"-16, G5

2шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

2шт.

13

382367R11

SUPPORT ASSY, fuel tank RH front

1шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

14

382118R11

SUPPORT ASSY, fuel tank lower RH front

1шт.

15

370832R91

STRAINER ASSY.

STRAINER W/NUT, 19985R1, fuel

1шт.

15

370832R91GV

FUEL FILTER

Value, Fuel Strainer

1шт.

15

383653R91

STRAINER ASSY.

STRAINER W/NUT, 19985R1, fuel, tractors with cotton picker

1шт.

16

259403R91

COCK

STEM ASSY, strainer

1шт.

17

13194D

STRAINER ASSY.

SCREEN, strainer

1шт.

18

355888R2

GASKET

strainer

1шт.

19

357957R1

BOWL

strainer, glass

1шт.

19

58839D

BOWL

strainer, metal, tractors with cotton picker

1шт.

20

17564D

HOLDER

BAIL, strainer

1шт.

21

50061D

NUT

strainer

1шт.

22

19985R1

TUBE NUT,1/2"-20

NUT, 1/2-20 hi duty tube fitting

2шт.

23

383169R11

PIPE ASSY, fuel, Serial Range: strainer-carburetor

1шт.

24

386119R11

TAB ASSY, lower heat shield

2шт.
