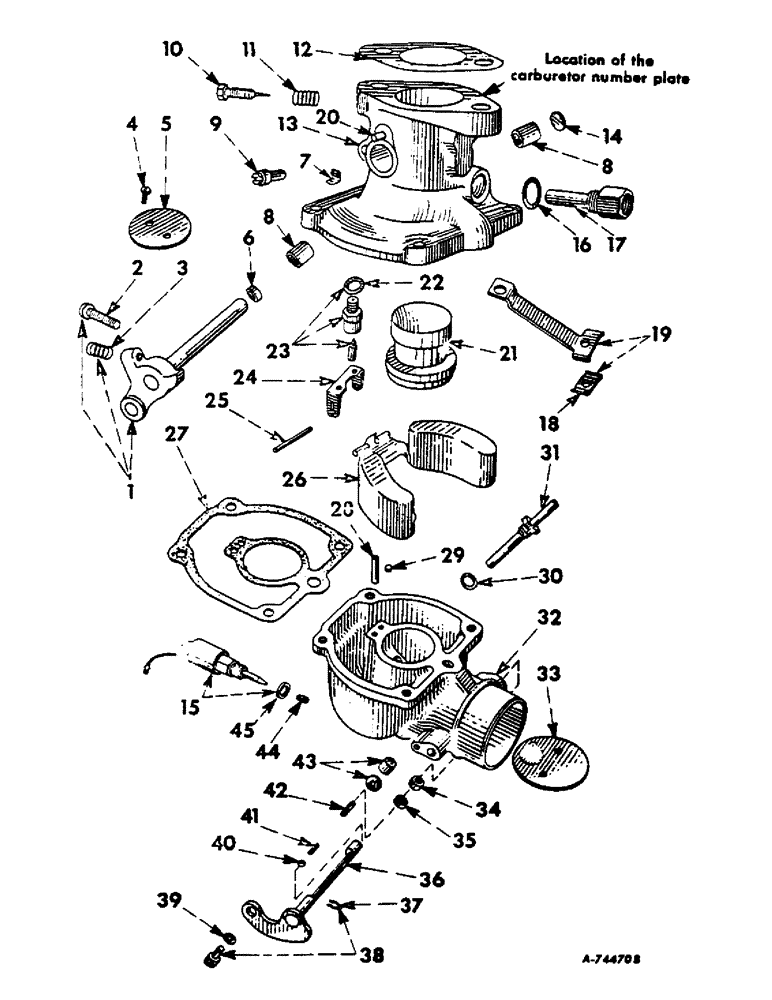

Запчасти Case IH 806 (E-02) - FUEL SYSTEM, CARBURETOR, IH, GASOLINE (02) - FUEL SYSTEM

388425R92

CARBURETOR

I.H. 1-3/8 updraft, less ref. nos. 7, 12, 15 & 45 thru 50 inclusive

1шт.

103026

NUT,3/8"-24, G5

2шт.

2

132128

SCREW, throttle shaft adjusting Slotted Fil Hd, #10-32 x 7/8"

1шт.

3

25484D

SPRING

THROTTLE ADJUSTMENT RETAINER

1шт.

4

47392D

SCREW

throttle butterfly

2шт.

5

54489D

VALVE

BUTTERFLY, throttle

1шт.

6

379598R1

SEAL

throttle shaft dust

1шт.

7

370535R1

CLIP

fuel shut off valve wire

1шт.

8

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

2шт.

9

368142R1

PLUG, idle passage

1шт.

10

362528R1

ADJUSTMENT SCREW

idle adjusting

1шт.

11

351959R1

SPRING

idle adjustment screw retainer

1шт.

12

31336D

GASKET

carburetor

1шт.

13

383009R11

BODY ASSY, throttle, composed of (1) body 383998R1 (NSS), (2) bushing 47390D, (1) pin 45110D, (1) plug 32611D (NSS), (1) plug 57956D, (1) seal 379598R1

1шт.

14

57956D

PLUG

throttle shaft expansion

1шт.

15

384818R92

VALVE

ASSY, fuel shut off

1шт.

16

18377D

GASKET

strainer screen retainer

1шт.

17

29902DX

SCREEN

RETAINER ASSEMBLY, strainer screen

1шт.

18

32596D

FASTENER

CLAMP, starting shutter control

1шт.

120611

NUT,#10 - 32

no. 10-32 sq cd or zn-pltd

1шт.

132119

SCREW

no. 10-32 x 5/8 CD or zn-pltd fil-hd mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

381610R11

SUPPORT

BRACKET ASSY, starting shutter control

1шт.

20

45110D

PIN

throttle stop

1шт.

21

47407D35

VENTURI, single no. 35

1шт.

22

25948D

GASKET

needle valve cage

1шт.

23

47396DAX40

NEEDLE

CAGE ASSY, needle valve

1шт.

24

47394D

SUPPORT

float lever pivot

1шт.

86982776

SCREW,Rd, #4 - 40 x 5/16"

no. 4-40 x 5/16 CD or zn pltd slt-rd-hd mach

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

25

47395D

PIVOT

float lever

1шт.

26

47398DX

FLOAT

& LEVER ASSY

1шт.

27

47388DA

GASKET

fuel bowl

1шт.

28

49798D70

JET

idle metering no. 70

1шт.

29

35606D50

BLEED, main air no. 50

1шт.

30

251583R1

WASHER

GASKET, metering nozzle

1шт.

31

384024R1

NOZZLE CAP

NOZZLE, metering

1шт.

32

381609R11

BOWL ASSY, fuel, composed of (1) bowl 381609R11 (NSS), (1) package 60947D, (1) pin 351588R1, (2) plug 32611D (NSS), (1) retainer 45148D, (1) seal 45149DA

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 automotive sq-hd pipe

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 CD or zn-pltd hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

33

357002R12

SHUTTER

ASSEMBLY, starting

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

no. 6-32 x 1/4 CD or zn-pltd slt-rd-hd mach

2шт.

131044

LOCK WASHER

Lock, #6

2шт.

34

45149DA

SEAL

butterfly dust

1шт.

35

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, dust seal

1шт.

36

382926R91

SHAFT & LEVER ASSY, starting shutter

1шт.

37

363881R1

RETAINER

starting shutter lever swivel

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

no. 8-32 x 3/8 CD or zn-pltd slt-pd-hd mach

1шт.

38

64283DBX

PIVOT ASSY.

SWIVEL ASSEMBLY, starting shutter lever

1шт.

39

32592D

WASHER

WASHER, starting shutter lever swivel

1шт.

40

52791R1

BALL,3/16" Dia, Stainless

friction spring

1шт.

41

46059D

SPRING

starting shutter friction

1шт.

42

351588R1

PIN

starting shutter stop

1шт.

43

60947D

PLUG

PACKAGE, drip hole filler replacement

1шт.

44

384023R1

SEAT, fuel adjustment screw, .074

1шт.

45

381955R1

GASKET

fuel shut off valve

1шт.

387454R92

PACKAGE

carburetor gasket, consists of ref nos. 6, 12, 16, 22, 27, 30, 34, 43, 45 and o-ring 384820R1

1шт.

387460R92

CARBURETOR

PACKAGE, carburetor overhaul, consists of ref nos. 1 thru 4, 8, 10, 11, 14, 17, 23, 25, 26, 35, 40 thru 42, 47 and 48

1шт.
