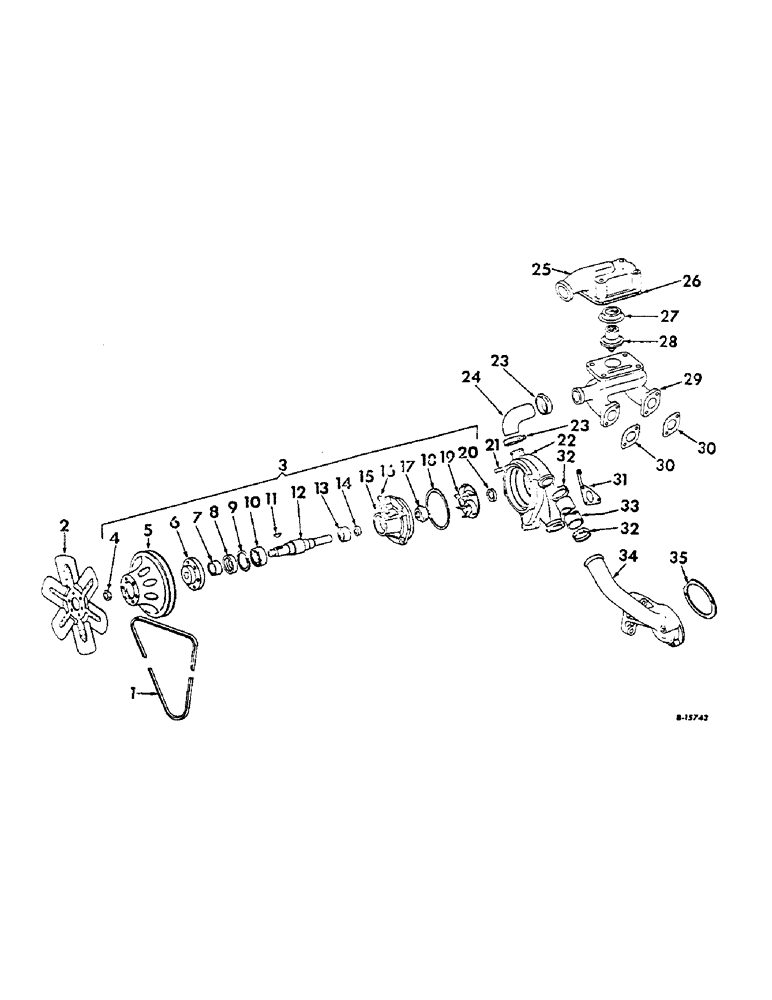

Запчасти Case IH 806 (D-18) - DIESEL ENGINE, FAN, THERMOSTAT AND WATER PUMP, ENGINE SERIAL NO. D-361 22699 AND ABOVE (01) - ENGINE

1

380060R1

V-BELT,0.597" W 66.00" L

Generator and water pump 0.597" W 66.00" L

1шт.

1

385120R2

V-BELT,0.597" W 66.50" L

Alternator generator & water pump 0.597" W 66.50" L

1шт.

2

383668R91

FAN

BLADE ASSY, fan

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

341528R94

PACKAGE

HOUSING ASSY, water pump bearing, less ref. nos. 5 and 18

1шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

18501R1

LOCK NUT,7/8"-14

NUT, 7/8-14 ESNA stop

1шт.

5

341013R1

PULLEY

fan

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

6

341105R1

HUB

fan pulley

1шт.

7

326721R1

SPACER

water pump

1шт.

8

333794R91

SEAL

water pump shaft oil

1шт.

9

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, , brg 2.062", Int, #206

1шт.

10

ST442

BEARING

water pump shaft front ball

1шт.

11

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

12

345081R1

SHAFT

water pump

1шт.

13

ST441

BEARING

water pump shaft rear

1шт.

14

610051C91

SEAL

pump shaft rear oil

1шт.

15

328889R1

CAGE

HOUSING, bearing

1шт.

16

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-soc pipe

1шт.

17

607454C91

PACKAGE

SEAL ASSY, water pump

1шт.

18

285253R1

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

5-1/2 x 5-3/4 x 1/8

1шт.

19

332311R1

IMPELLER

water pump

1шт.

20

265164C91

PACKING RING

SEAT ASSY, water pump seal

1шт.

21

273050R1

STUD

water pump body

4шт.

22

607253C11

BODY

W/FOUR STUDS, 273050R1, water pump

1шт.

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

SCREW, 1/2-13 x 1-7/8 hex-hd cap

1шт.

179890

LATCH

SCREW, 1/2-13 x 2-1/4 hex-hd cap

3шт.

116105

WASHER

17/32 x 1-1/16 copper

4шт.

23

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, hose

2шт.

24

607255C1

HOSE,1.50" ID x 4.65", SAE 20R4 Class SC or IH

Thermostat By-Pass 1.50" ID x 4.65", SAE 20R4 Class SC or IH

1шт.

25

349274R21

HOUSING W/BALL, 88434H & plug, 444660, thermostat

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-soc pipe

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

26

326820R1

GASKET

thermostat housing

1шт.

27

347497R91

SEAL

thermostat, optional w/615175C91

1шт.

27

615175C91

SEAL

thermostat, optional w/347497R91

1шт.

28

326978R91

THERMOSTAT

optional w/702346C1

1шт.

28

7023476C1

THERMOSTAT, optional w/326978R91

1шт.

29

601549C11

ELBOW W/PLUG, 445751, thermostat housing mounting

1шт.

FO445751

PLUG

1/2-14 auto sq-soc pipe

2шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

3шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

30

326818R1

GASKET

elbow

2шт.

31

328892R1

GASKET

water pump

1шт.

32

274087R91

HOSE CLAMP,1.50/2.38 Type F Worm

CLAMP, hose

2шт.

33

407006R1

HOSE

1-3/4 x 2-1/8 x 3-1/4 in. long

1шт.

34

607254C2

HEADER, oil cooler front

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

7шт.

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

337242R1

GASKET

oil, Serial Range: cooler-header

1шт.

609459C92

SERVICE KIT

PACKAGE, water pump service, consists of ref nos. 4, 7 thru 14 18, 19, 20 & 31

1шт.
