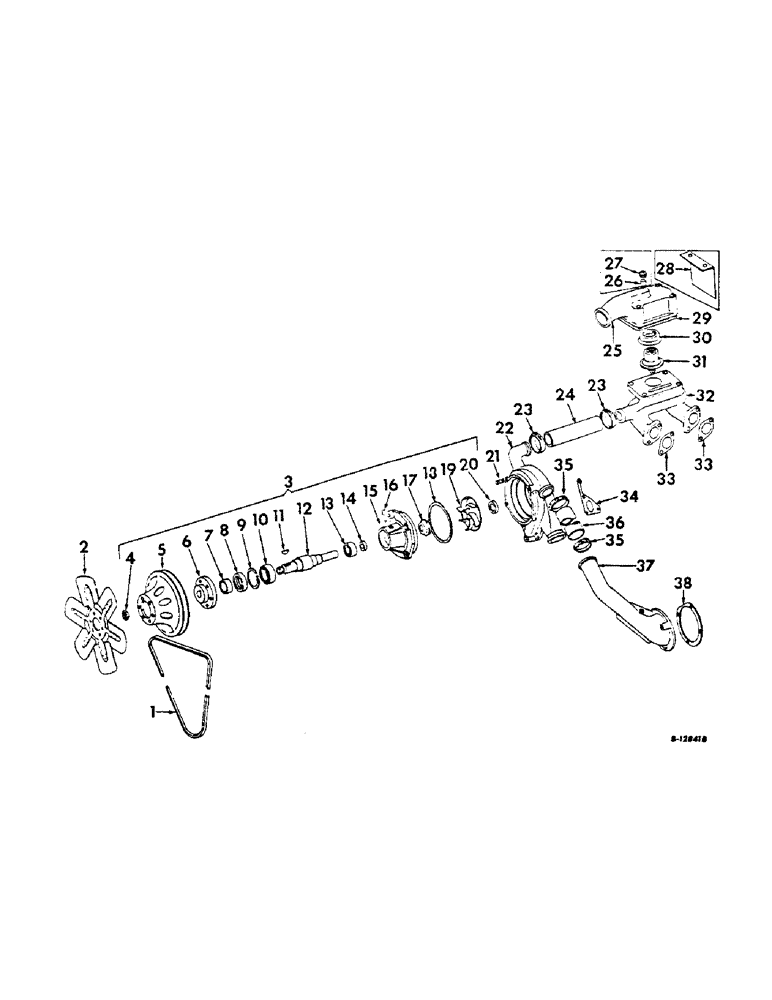

Запчасти Case IH 806 (D-16) - DIESEL ENGINE, FAN, THERMOSTAT AND WATER PUMP, ENGINE SERIAL NO. D-361 22698 AND BELOW (01) - ENGINE

1

380060R1

V-BELT,0.597" W 66.00" L

Fan, generator and water pump 0.597" W 66.00" L

1шт.

1

385120R2

V-BELT,0.597" W 66.50" L

Fan, Generator and water pump, Tractors with alternator generator 0.597" W 66.50" L

1шт.

2

383668R91

FAN

BLADE ASSY, fan

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

341528R94

PACKAGE

HOUSING ASSY, water pump bearing, less ref. nos. 5 and 18

1шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

18501R1

LOCK NUT,7/8"-14

NUT, 7/8-14 ESNA stop

1шт.

5

341013R1

PULLEY

fan

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

6

341105R1

HUB

fan pulley

1шт.

7

326721R1

SPACER

water pump

1шт.

8

333794R91

SEAL

water pump shaft oil

1шт.

9

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, , brg 2.062", Int, #206

1шт.

10

ST715

BEARING

water pump shaft front ball

1шт.

11

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

12

345081R1

SHAFT

water pump

1шт.

13

ST441

BEARING

water pump shaft rear

1шт.

14

610051C91

SEAL

pump shaft rear oil

1шт.

15

328889R1

CAGE

HOUSING, bearing

1шт.

16

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 automotive sq-soc pipe

1шт.

17

603722C91

KIT

SEAL, water pump

1шт.

18

285253R1

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

5-1/2 x 5-3/4 x 1/8

1шт.

19

332311R1

IMPELLER

water pump

1шт.

20

265164C91

PACKING RING

SEAT, water pump seal

1шт.

21

273050R1

STUD

water pump body, will work for 277016R1

1шт.

22

332309R11

BODY

W/FOUR STUDS, 273050R1, water pump, order body, 607253C11 and hose, 607255C1

1шт.

179888

LEVER

SCREW, 1/2-13 x 1-7/8 hex-hd cap

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd cap

3шт.

116105

WASHER

17/32 x 1-1/16 copper

1шт.

23

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, hose

2шт.

24

407003R1

HOSE

1-1/2 x 1-7/8 x 3 in. long

1шт.

25

326821R11

HOUSING

ASSY, thermostat, order housing, 349274R21 and seal, 347497R91, d-361, Serial Range: 501-7489

1шт.

25

349274R21

HOUSING W/BALL, 88434H & plug, 143162, thermostat D-361 7490 up

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 automotive sq-soc pipe

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

26

278988R12

LOCK VALVE

VALVE, vent D-361, Serial Range: 501-16975

1шт.

27

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG, 3/4-14 automotive sq-soc pipe D-361 501 to 16975

1шт.

28

337158R2

SHIELD, thermostat housing heat D-361, Serial Range: 501-13612

1шт.

29

326820R1

GASKET

thermostat housing

1шт.

30

151975R93

OIL SEAL

thermostat D-361, Serial Range: 501-7489

1шт.

30

347497R91

SEAL

thermostat, D-361 7490 up, optional w/615715C91

1шт.

30

615175C91

SEAL

thermostat, optional w/347497R91

1шт.

31

702346C1

THERMOSTAT

optional w/326978R91

1шт.

31

326978R91

THERMOSTAT

optional w/702346C1

1шт.

32

601549C11

ELBOW W/PLUG, 445751, thermostat housing mounting

1шт.

FO445751

PLUG

1/2-14 automotive sq-soc pipe

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

3шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

33

326818R1

GASKET

elbow

2шт.

34

328892R1

GASKET

water pump

1шт.

35

274087R91

HOSE CLAMP,1.50/2.38 Type F Worm

CLAMP, hose

1шт.

36

407006R1

HOSE

1-3/4 x 2-1/8 x 3-1/4 in. long

1шт.

37

328941R1

HEADER, oil cooler front

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

6шт.

66002D

SCREW, 5/16-18 x 2-5/8 hex-hd cap

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

186290

BOLT (SPREADER)

SCREW, 3/8-16 x 6 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

38

326813R1

GASKET

oil, Serial Range: cooler-header

1шт.
