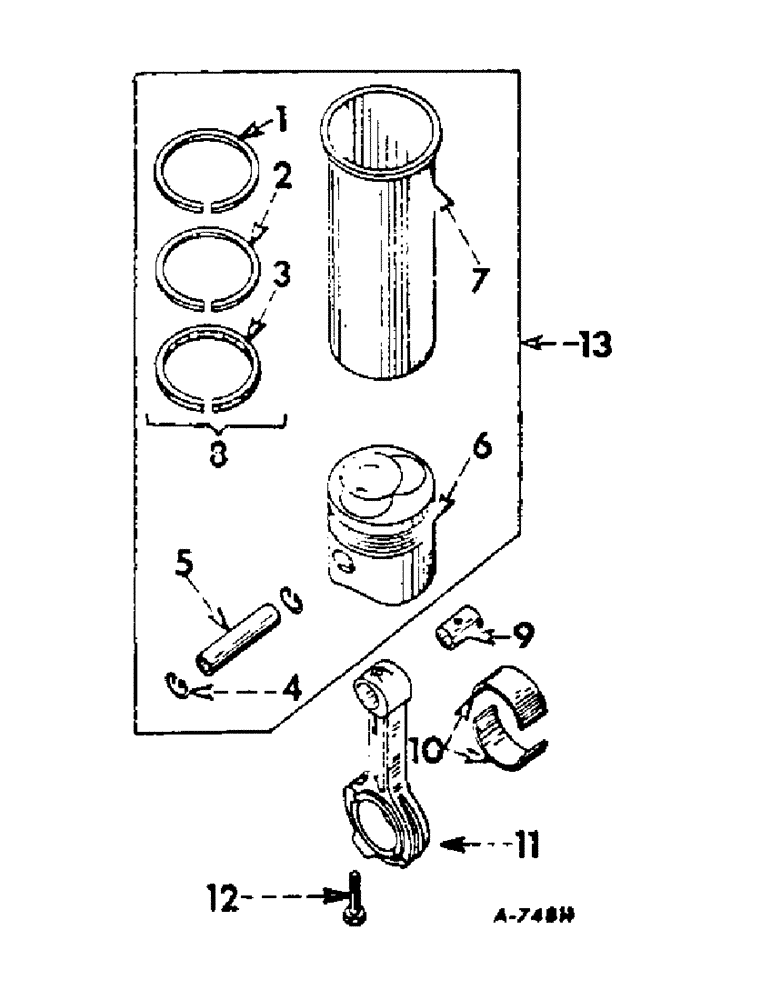

Запчасти Case IH 806 (D-09) - DIESEL ENGINE, CONNECTING RODS AND SLEEVE SETS (01) - ENGINE

1

343429R1

RING, compression piston, top or first groove

6шт.

2

327139R1

PISTON RING

RING, compression piston, second groove

6шт.

3

341341R92

RING, oil piston, third or bottom groove

6шт.

4

326751R1

RING, SNAP

RING, piston pin retaining

12шт.

5

326749R1

PIN

piston, std

6шт.

5

326750R1

PIN

piston, .005 O/S

6шт.

6

345250R2

PISTON

SS marking

6шт.

7

349114R11

SLEEVE

cylinder, S2 marking

6шт.

7

349386R11

SLEEVE

cylinder, S1 marking

6шт.

7

349094R11

BUSHING

SLEEVE, cylinder, .002 U/S

6шт.

7

349387R11

SLEEVE CYLINDER

SLEEVE, cylinder, .010 O/S

6шт.

8

601134C91

PACKAGE

RING SET, piston, consists of twelve compression ring and six oil regulating rings

1шт.

9

326562R1

BUSHING

piston pin

6шт.

10

323962R11

CRANKSHAFT BEARING

BEARING ASSY, connecting rod, 2 halves, std

6шт.

10

341573R11

BEARING

ASSY, connecting rod, 2 halves, .002 U/S

6шт.

10

341576R11

BEARING

ASSY, connecting rod, 2 halves, .010 U/S

6шт.

10

341579R11

CRANKSHAFT BEARING

BEARING ASSY, connecting rod, 2 halves, .020 U/S

6шт.

10

341582R11

BEARING

ASSY, connecting rod, 2 halves, .030 U/S

6шт.

11

341113R93

ROD

W/TWO BOLTS, 326563R2 and bushing, 326562R1, connecting

6шт.

11

735239C91

REMAN-CONNECTING ROD

Reman for New PN 341113R93

6шт.

11

1928151C1

CORE-ROD CONNECTING

Return Number

6шт.

12

326563R2

BOLT (SPREADER),1/2" - 20 x 2.1"

BOLT, connecting rod

12шт.

13

601071C92

PISTON ASSY.

SLEEVE ASSY, cylinder, S2 marking, composed of (1) pin 326749R1, (1) piston 345250R2, (2) ring 326751R1, (1) ring 327139R1, (1) ring 341341R92, (1) ring 343429R1, (1) sleeve 349114R11

1шт.

13

601070C92

SLEEVE ASSY

cylinder, S1 marking, composed of (1) pin 326749R1, (1) piston 345250R2, (2) ring 326751R1, (1) ring 327139R1, (1) ring 341341R92, (1) ring 343429R1, (1) sleeve 349386R11

1шт.
