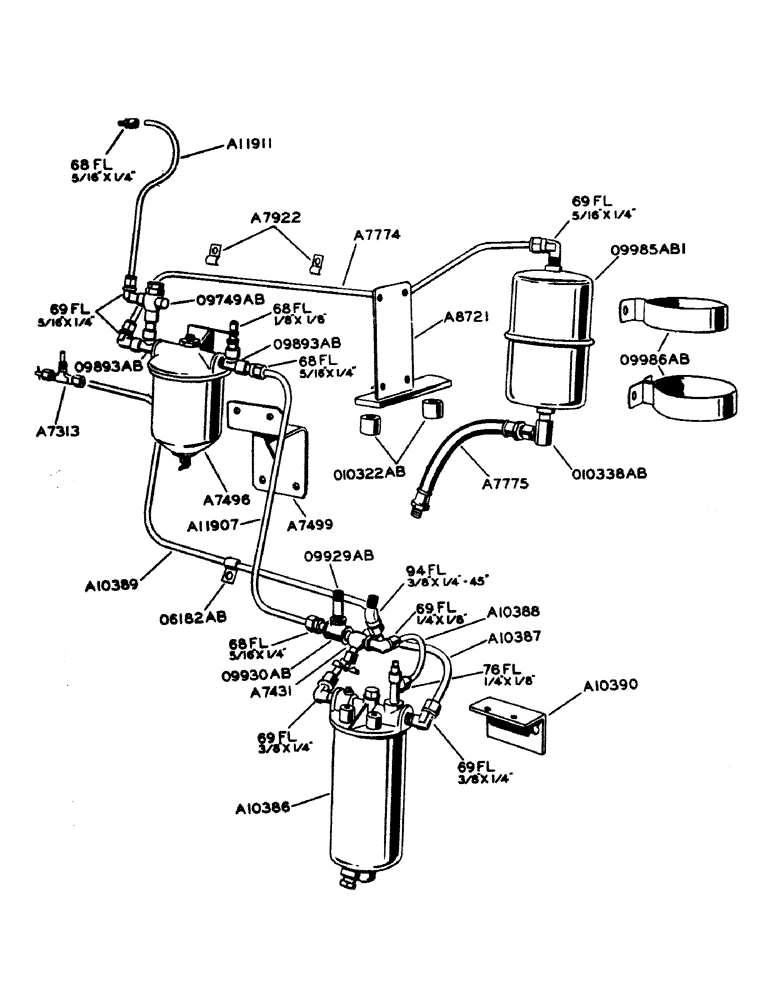

Запчасти Case IH 800 (062) - POWRCEL DIESEL ENGINE, FUEL FILTERS & TUBES, SINGLE PLUNGER FUEL PUMP, 1ST STAGE FUEL FILTER & TUBES (02) - ENGINE

A7313

VALVE

needle, fuel tank

1шт.

A7431

VALVE

needle (A10386 filter)

1шт.

A10386

SPARE PART

FILTER, first stage fuel

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" N.C. hex bolt w/lockwasher

2шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. TEE #76FL (1/4" tube x 1/8" P.T.) (connects filter to vacuum gauge and bleeder by-pass tubes)

1шт.

A10387

TUBE

first stage filter to fuel pump (w/2-60FL sleeves and 2-61FL nuts)

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. ELBOW #69FL (3/8" tube x 1/4" P.T.) (connects tube to first stage filter)

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. 45 deg. elbow #94FL (3/8" tube x 1/4" P.T.) (connects tube to fuel pump)

1шт.

A10388

TUBE

first stage filter bleeder by-pass (w/2-60FL sleeves and 2-61FL nuts)

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. ELBOW #69FL (1/4" tube x 1/8" P.T.) (connects tube with A7431 needle valve)

1шт.

A10389

TUBE, fuel tank to A10386 filter (w/2-60FL sleeves and 2-61FL nuts)

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. ELBOW #69FL (3/8" tube x 1/4 P.T.) (connects tube to first stage filter)

1шт.

A10390

BRACKET

for A10386 first stage filter

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 7/8" N.C. hex bolt w/lockwasher

2шт.

O6182AB

CLIP, for tube from fuel tank to first stage filter

1шт.

O9929AB

X

NIPPLE, brass pipe, connects 09930AB tee to fuel pump (1/4" x 1-1/2")

1шт.

O9930AB

X

TEE, 1/4" brass female, for fuel pump

1шт.

A7496

HEAD

FILTER, second stage fuel, and tubes

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.F. hex bolt w/hex nut and lockwasher, second stage fuel filter and tubes

2шт.

A7499

BRACKET, second stage filter, fuel, and tubes

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.C. hex bolt w/lockwasher, second stage fuel filter and tubes

2шт.

A7774

TUBE, second stage to final stage filter (5/16") (w/2-60FL sleeves and 2-61FL nuts), fuel

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. ELBOW #69FL (5/16" tube x 1/4" P.T.) (both ends of tube), second stage fuel filter

2шт.

A7922

CLIP

for A7774 tube, second stage fuel filter

2шт.

A11907

TUBE, fuel pump to second stage filter (w/2-60FL sleeves and 2-61FL nuts)

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. CONNECTOR #68FL (5/16" tube x 1/4" P.T.) (both ends of tubes), second stage fuel filter

2шт.

A11911

TUBE, relief valve to fuel tank (5/16") (w/2-60FL sleeves and 2-61FL nuts), second stage filter

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. ELBOW #69FL (5/16" tube x 1/4" P.T.), second stage fuel filter

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. CONNECTOR #68FL (5/16" tube x 1/4" P.T.) (connects tube to fuel tank), second stage filter

1шт.

O9749AB

VALVE, relief (American Bosch #VA7928A), second stage fuel filter and tubes

1шт.

O9893AB

TEE, second stage filter (1/4"), fuel, and tubes

2шт.

NSS

NOT SOLD SEPARAT

1/4" to 1/8" brass reducing bushing, second stage fuel filter and tubes

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. CONNECTOR #68FL (1/8" tube x 1/8" P.T.), second stage fuel filter

1шт.

A7775

FUEL HOSE,0.38" ID x 9.25"

Final Stage Filter To Fuel Pump, And Tubes 0.38" ID x 9.25"

1шт.

A8721

BRACKET, final stage filter, fuel, and tubes

1шт.

NSS

NOT SOLD SEPARAT

7/16" x 2" N.C. hex bolt w/lockwasher, final stage fuel filter and tubes

2шт.

O9985AB1

FILTER, final stage fuel, and tubes

1шт.

O9986AB

CLAMP, final stage filter, fuel, and tubes

2шт.

NSS

NOT SOLD SEPARAT

5/16" x 1/2" N.C. hex bolt w/plain washer, final stage fuel filter and tubes

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.F. hex bolt w/hex nut, final stage fuel filter and tubes

3шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" N.C. rhd. mach. screw w/hex nut, final stage fuel filter and tubes

2шт.

O10322AB

SPACER, final stage filter bracket, fuel, and tubes

2шт.

O10338AB

UNION

90 deg. adapter, connects A7775 hose to final stage filter, fuel, and tubes

1шт.
