Запчасти Case IH 800 (011) - POWRDYNE GAS ENGINE, VALVES, PUSH RODS AND CAMSHAFT (02) - ENGINE

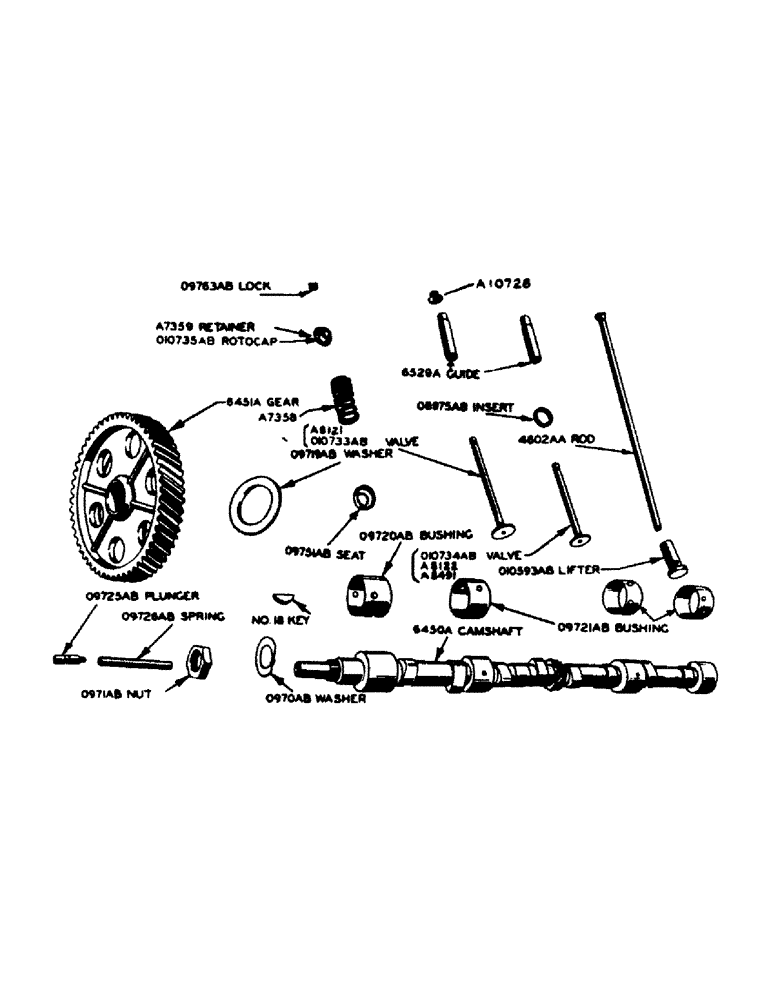

Схема запчастей Case IH 800 - (011) - POWRDYNE GAS ENGINE, VALVES, PUSH RODS AND CAMSHAFT (02) - ENGINE

Артикул

Название

Примечание

Количество

A7205

LIFTER, push rod (.010" oversize) (see 010593AB) (for taper end push rod)

8шт.

A7358

SPRING

inlet and exhaust valve

8шт.

A7359

RETAINER, inlet valve spring

4шт.

A8121

VALVE, inlet (for low cost fuel)

4шт.

A8122

VALVE, exhaust (for low cost fuel)

4шт.

A8491

VALVE, exhaust (stellite face) (for A8493 cylinder head for LP- gas and gasoline at high altitude)

4шт.

A8492

INSERT, exhaust valve seat (for A8493 cylinder head for LP-gas and gasoline at high altitude)

4шт.

A10726

SEAL

SHIELD, oil, rubber, intake valve stem (for gasoline and low cost fuel)

4шт.

A21060

ROD

push (round end) (use w/A21105 screw and A21061 lifter)

8шт.

A21061

LIFTER, push rod (std. size) (for round end push rod) (use w/A21105 screw and A21060 rod)

8шт.

6450A

CAMSHAFT

1шт.

P/N# 6450A per note in the 400 series tractor hard copy catalog was scrapped out of system in April 1984. CAM (db)

1шт.

6451A

X

GEAR, camshaft

1шт.

NSS

NOT SOLD SEPARAT

No. 18 Woodruff key

1шт.

6529A

GUIDE, inlet and exhaust valve

8шт.

4602AA

ROD

push (taper end) (see A21060)

8шт.

O970AB

X

LOCKWASHER, camshaft nut

1шт.

O971AB

X

NUT, camshaft (1-1/8" hex N.C. thrd)

1шт.

O8975AB

INSERT, exhaust valve seat (for A8123, A8933 and 4968AA cylinder head)

4шт.

O9719AB

WASHER, camshaft thrust

1шт.

O9720AB

BUSHING, camshaft, front

1шт.

O9721AB

BUSHING, camshaft, second, third and rear

3шт.

O9725AB

X

PLUNGER, camshaft thrust

1шт.

O9726AB

X

SPRING, camshaft thrust plunger

1шт.

O9751AB

X

SEAT, inlet and exhaust valve spring

8шт.

O9763AB

LOCK, valve spring retainer (2 required per valve)

16шт.

O10593AB

HYDRAULIC LIFT

LIFTER, push rod (standard size) (see A7205) (for taper end push rod)

8шт.

O10733AB

VALVE, inlet (for gasoline and LP-gas)

4шт.

O10734AB

VALVE, exhaust (for gasoline with 4968AA cylinder head)

4шт.

O10735AB

ROTOCAP, exhaust valve

4шт.

Выбрано товаров: 30
