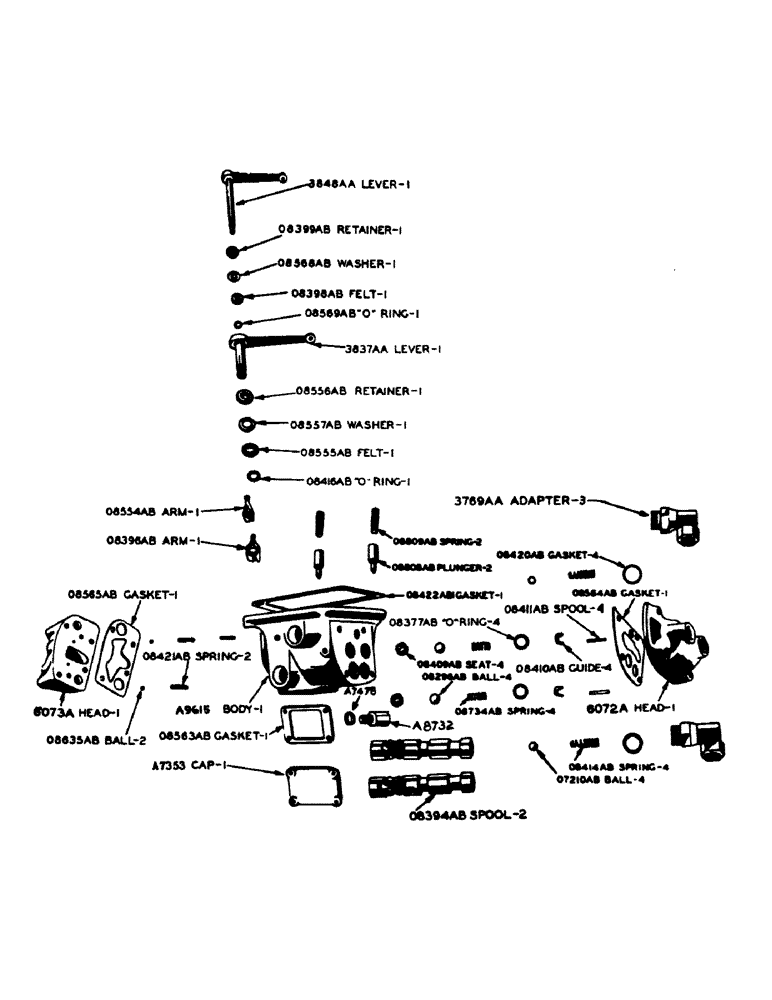

Запчасти Case IH 800 (192) - HYDRAULIC FLOAT VALVE AND PUMP ASSEMBLY, FOR TRACTORS WITHOUT EAGLE HITCH (08) - HYDRAULICS

A7353

CAP

hydraulic valve body

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" N.C. flat hd. mach. screw w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" N.C. rhd. mach. screw w/lockwasher

3шт.

A7475

X

CAP, hydraulic float valve opening (use A8732)

1шт.

A7478

GASKET

float valve opening cap

1шт.

A8732

CAP

hydraulic float valve opening

1шт.

A9612

SPARE PART

BODY (use A9615)

1шт.

A9615

SUPPORT

BODY, hydraulic valve (consists of 1 - A9612 body, 4 - 08409AB seats, 1 - 09572AB sleeve and 5 - 1/8" hex socket head pipe plugs) (does not include relief valve)

1шт.

A10905

Hydraulic dual valve and 12 gal. per minute pump assembly complete (for tractors without eagle hitch)

1шт.

6072A

X

HEAD, hydraulic valve, R.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" N.C. hex bolt w/lockwasher

3шт.

6073A

HEAD, hydraulic valve, L.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-3/4" N.C. hex bolt w/lockwasher

4шт.

3769AA

X

ADAPTER, swivel angle

3шт.

3837AA

X

LEVER AND SHAFT, spool shifter, lower

1шт.

3848AA

LEVER

AND SHAFT, spool shifter, upper

1шт.

4198AA

X

REGULATOR, cylinder speed

1шт.

O7210AB

X

BALL, hydraulic valve return (1/2" dia.)

4шт.

O8296AB

X

BALL, valve outlet (5/8" dia.)

4шт.

O8377AB

X

"O"RING, valve outlet ball check

4шт.

O8394AB

X

SPOOL, hydraulic valve

2шт.

O8396AB

X

ARM, spool shifter, for 3848AA lever (see 08554AB)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" N.F. fillister hd. mach. screw w/lockwasher

1шт.

O8398AB

X

WASHER, felt, spool shifter shaft, upper (see 08555AB)

1шт.

O8399AB

X

RETAINER, spool shifter shaft upper felt washer (see 08556AB)

1шт.

O8409AB

X

SEAT, outlet ball check

4шт.

O8410AB

X

GUIDE, outlet ball check spring

4шт.

O8411AB

X

SPOOL, auxiliary

4шт.

O8414AB

X

SPRING, return ball check

4шт.

O8416AB

X

"O"RING, spool shifter shaft, lower

1шт.

O8420AB

X

GASKET, swivel angle adapter

4шт.

O8421AB

SPRING

relief valve ball

2шт.

O8422AB1

X

GASKET, hydraulic valve body

1шт.

O8554AB

X

ARM, spool shifter, for 3837AA lever (see A8396AB)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" N.F. fillister hd. mach. screw w/lockwasher

1шт.

O8555AB

X

WASHER, felt, spool shifter shaft, lower (see 08398AB)

1шт.

O8556AB

X

RETAINER, spool shifter shaft lower felt washer (see 08399AB)

1шт.

O8557AB

X

WASHER, spool shifter shaft seal, for 08555AB felt

1шт.

O8563AB

GASKET, valve body cap

1шт.

O8564AB

X

GASKET, hydraulic valve head, R.H.

1шт.

O8565AB

X

GASKET, hydraulic valve head, L.H.

1шт.

O8568AB

X

WASHER, spool shifter seal, for 08398AB felt

1шт.

O8569AB

X

"O"RING, spool shifter shaft, upper

1шт.

O8635AB

X

BALL, relief valve (1/4" dia.)

2шт.

O8734AB

X

SPRING, outlet ball check

4шт.

O8808AB

PLUNGER, spool

2шт.

O8809AB

X

SPRING, spool plunger

2шт.
