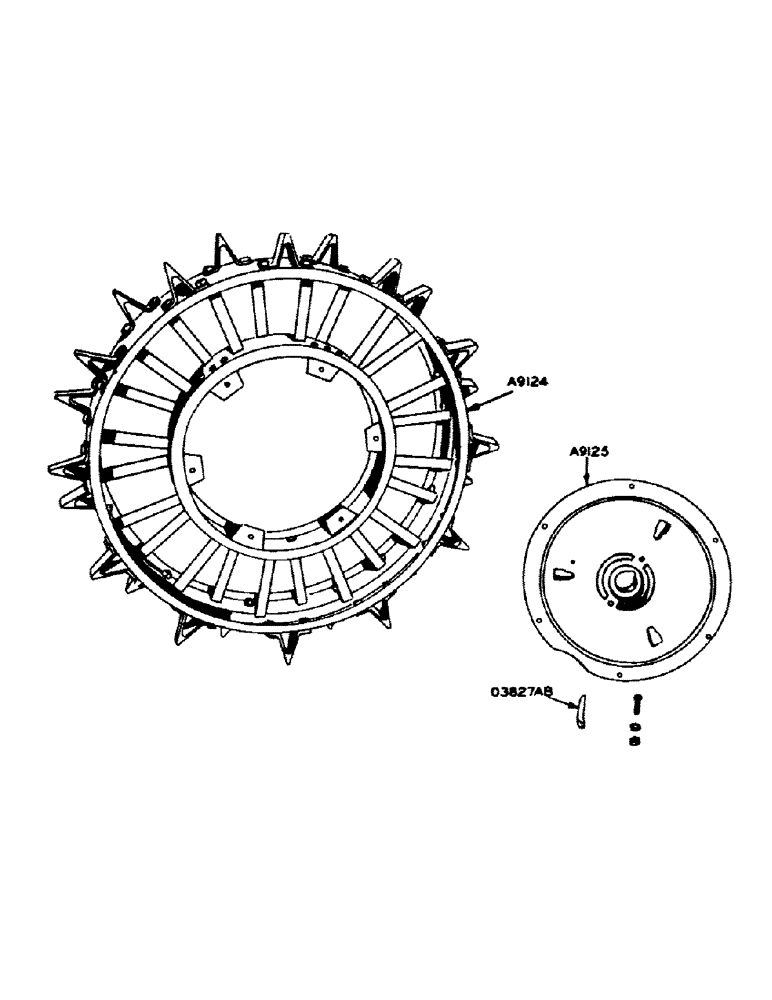

Запчасти Case IH 800 (138) - STEEL REAR WHEEL, FOR STANDARD 4-WHEEL TRACTORS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
A9124
WHEEL, rear, 11-1/8" x 50" dia. (used with 6486A or A9125 cast center wheel)
2шт.
NSS
NOT SOLD SEPARAT
5/8" x 2-1/4" N.F. hex bolt w/hex nut and lockwasher
12шт.
A9125
WHEEL, cast center, for A9124 rear wheel
2шт.
A9240M
LUGS, set of (48) cast iron spade, for A9124 rear wheel (consists of 48 - 4538A lugs and 96 - 3/4" x 2" mach. bolts w/hex nuts and lockwasher) (machy. item), steel, for Standard 4-wheel tractor
1шт.
A9241M
LUGS, set of (24) cast iron spade, for A9128 or A9131 extension rims (consists of 24 - 4538A lugs, 36 - 3/4" x 2" mach. bolts and 12 - 3/4" x 2-1/2" mach. bolts w/hex nuts and lockwashers) (machy. item),for steel rear wheels, for Standard 4-wheel tractor
1шт.
A9243M
LUGS, set of (48) steel spade, for rear wheels (consists of 48 - 01505AB and 96 - 3/4" x 1-1/2" N.C. mach. bolts w/hex nuts and lockwashers) (machy. item), for Standard 4-wheel tractor
1шт.
A9244M
LUGS, set of (24) steel spade, for extension rims (consists of 24 - 01505AB lugs, 36 - 3/4" x 1-1/2" mach. bolts and 12 - 3/4" x 2" mach. bolts w/hex nuts and lockwashers) (machy. item), for rear wheels, for Standard 4-wheel tractor
1шт.
A9254M
LUGS, set of (48) steel spade, for rear wheels (consists of 48 - 02802AB lugs and 96 - 3/4" x 1-1/2" mach. bolts with hex nuts and lockwashers) (machy. item), for Standard 4-wheel tractor
1шт.
A9255M
LUGS, set of (24) steel spade, for extension rims (consists of 24 - 02802AB lugs, 36 - 3/4" x 1-1/2" mach. bolt and 12 - 3/4" x 2" mach. bolts w/hex nuts and lockwashers) (machy. item), for rear wheels, for Standard 4-wheel tractor
1шт.
4538A
LUG, 6" cast iron spade, for A9124 rear wheel (see A9240M), steel, for Standard 4-wheel tractor
48шт.
NSS
NOT SOLD SEPARAT
3/4" x 2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for Standard 4-wheel tractor
96шт.
4538A
LUG, 6" cast iron spade, for A9128 or A9131 extension rims (see A9241M), for steel rear wheels, for Standard 4-wheel tractor
24шт.
NSS
NOT SOLD SEPARAT
3/4" x 2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for Standard 4-wheel tractor
36шт.
NSS
NOT SOLD SEPARAT
3/4" x 2-1/2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for Standard 4-wheel tractor
12шт.
O1505AB
LUG, steel spade, for rear wheel (5" high x 3-1/2" wide) (see A9243M), for Standard 4-wheel tractor
48шт.
NSS
NOT SOLD SEPARAT
3/4" x 1-1/2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for Standard 4-wheel tractor
96шт.
O1505AB
LUG, steel spade, for extension rims (5" high x 3-1/2" wide) (see A9244M), for rear wheels, for Standard 4-wheel tractor
24шт.
NSS
NOT SOLD SEPARAT
3/4" x 1-1/2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for Standard 4-wheel tractor
36шт.
NSS
NOT SOLD SEPARAT
3/4" x 2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for Standard 4-wheel tractor
12шт.
O2802AB
LUG, 6" steel spade, for rear wheels (see A9254M), for Standard 4-wheel tractor
48шт.
NSS
NOT SOLD SEPARAT
3/4" x 1-1/2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for Standard 4-wheel tractor
96шт.
O2802AB
LUG, 6" steel spade, for extension rims (see A9255M), for rear wheels, for Standard 4-wheel tractor
24шт.
NSS
NOT SOLD SEPARAT
3/4" x 1-1/2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for Standard 4-wheel tractor
36шт.
NSS
NOT SOLD SEPARAT
3/4" x 2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for Standard 4-wheel tractor
12шт.
Выбрано товаров: 24
