Запчасти Case IH 800 (132) - STEEL REAR WHEEL, FOR GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

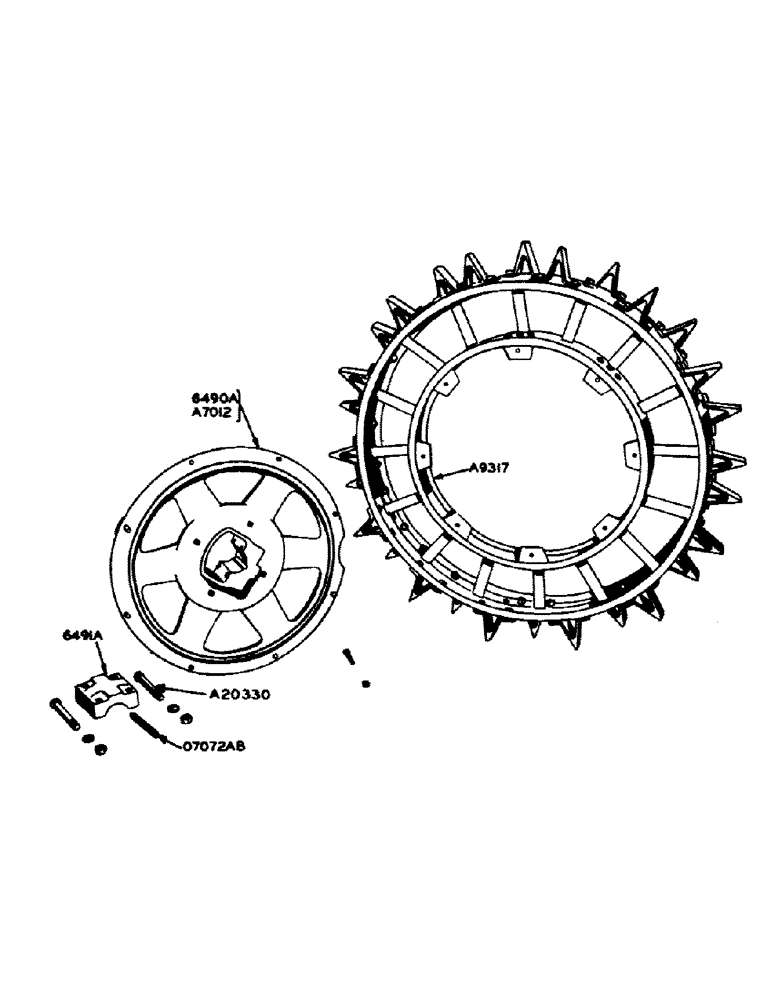

Схема запчастей Case IH 800 - (132) - STEEL REAR WHEEL, FOR GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A7012

WHEEL, cast center, with 649A cap and 4 - A20330 bolts, nuts and lockwashers

2шт.

A9317

WHEEL, rear, 8-1/4" x 54" dia. (used with 6490A cast center wheel)

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.F. hex bolt with hex nut and lockwasher

16шт.

A20330

KIT

BOLT, rear wheel hub

8шт.

NSS

NOT SOLD SEPARAT

7/8" N.F. hex nut

8шт.

NSS

NOT SOLD SEPARAT

7/8" Std. lockwasher

8шт.

6490A

WHEEL, rear (use A7012)

1шт.

6491A

CAP, rear wheel hub (A7012)

2шт.

4538A

LUG, 6" cast iron spade, for A9317 rear wheel (see 45AA), steel, for General Purpose tractors

56шт.

NSS

NOT SOLD SEPARAT

3/4" x 2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels for General Purpose tractors

112шт.

4538A

LUG, 6" cast iron spade, for A9318 extension rim (see 43AA), for steel rear wheels for General Purpose tractors

28шт.

NSS

NOT SOLD SEPARAT

3/4" x 2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels for General Purpose tractors

42шт.

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels for General Purpose tractors

14шт.

43AA

LUGS, set of (28) cast iron spade, for A9318 extension rims (consists of 28 - 453A lugs, 42 - 3/4" x 2" mach. bolts and 14 - 3/4" x 2-1/2" mach. bolts with hex nuts and lockwashers) (machy. item), for steel rear wheels, for General Purpose tractors

1шт.

44AA

LUGS, set of (28) steel spade, for A9318 extension rims (consists of 28 - 01505AB lugs, 42 - 3/4" x 1-1/2" mach. bolts and 14 - 3/4" x 2" mach. bolts with hex nuts and lockwashers) (machy item), for rear wheels, for General Purpose tractors

1шт.

45AA

LUGS, set of (56) cast iron spade, for A9317 rear wheel (consists of 56 - 4538A lugs and 112 - 3/4" x 2" N.C. mach. bolts with hex nuts and lockwashers) (machy. item), steel, for General Purpose tractors

1шт.

46AA

LUGS, set of (56) steel spade, for A9317 rear wheels (consists of 56 - 01505AB lugs and 112 - 3/4" x 1-1/2" N.C. mach. bolts and hex nuts and lockwashers) (machy. item), for General Purpose tractors

1шт.

489AA

LUGS, set of (56) steel spade, for A9317 rear wheels (consists of 56 - 02802AB lugs and 112 - 3/4" x 1-1/2" N.C. mach. bolts with hex nuts and lockwashers) (machy. item), for General Purpose tractors

1шт.

557AA

LUGS, set of (28) steel spade, for A9318 extension rims (consists of 28 - 02802AB lugs, 42 - 3/4" x 1-1/2" N.C. mach. bolts, 14 - 3/4" x 2" N.C. mach. bolt with hex nut and lockwasher) (machy. item), for rear wheels, for General Purpose tractors

1шт.

O1505AB

LUG, steel spade, for A9317 rear wheel (5" high x 3-1/2" wide) (see 46AA), for General Purpose tractors

56шт.

NSS

NOT SOLD SEPARAT

3/4" x 1-1/2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for General Purpose tractors

112шт.

O1505AB

LUG, steel spade, for A9318 extension rim (5" high x 3-1/2" wide) (see 44AA), for rear wheels, for General Purpose tractors

28шт.

NSS

NOT SOLD SEPARAT

3/4" x 1-1/2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for General Purpose tractors

42шт.

NSS

NOT SOLD SEPARAT

3/4" x 2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for General Purpose tractors

14шт.

O2802AB

LUG, 6" steel spade, for A9317 rear wheels (see 489AA), for General Purpose tractors

56шт.

NSS

NOT SOLD SEPARAT

3/4" x 1-1/2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for General Purpose tractors

112шт.

O2802AB

LUG, 6" steel spade, for A9318 extension rim (see 557AA), for rear wheels, for General Purpose tractors

28шт.

NSS

NOT SOLD SEPARAT

3/4" x 1-1/2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for General Purpose tractors

42шт.

NSS

NOT SOLD SEPARAT

3/4" x 2" N.C. mach. bolt w/hex nut and lockwasher, lugs for steel rear wheels, for General Purpose tractors

14шт.

Выбрано товаров: 29
