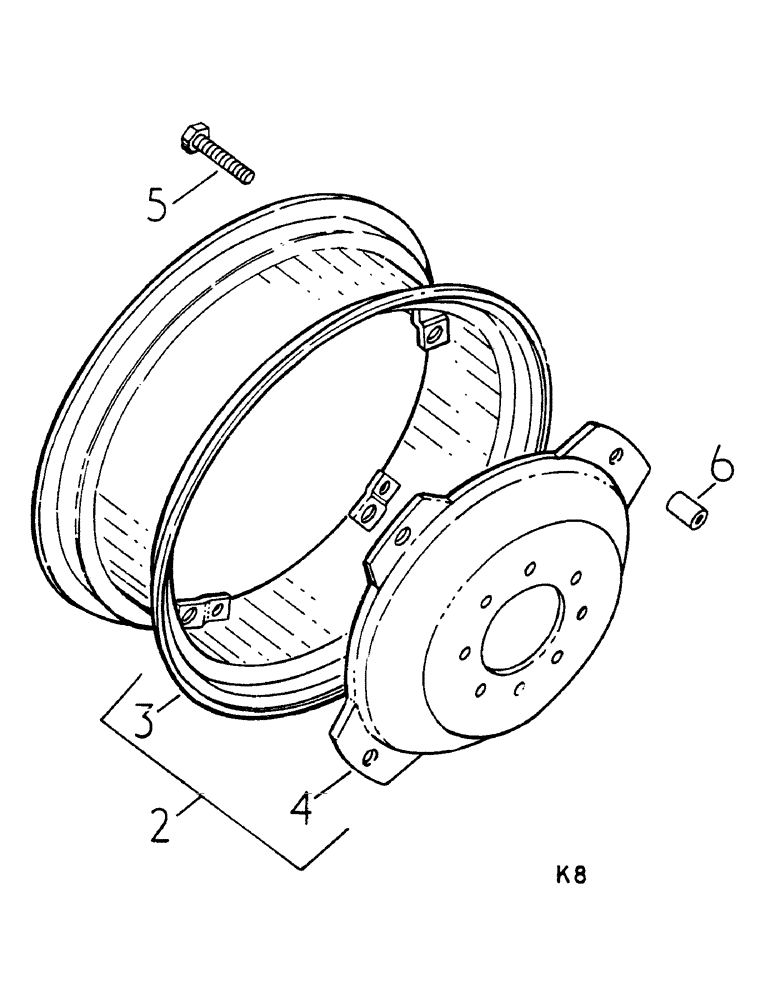

Запчасти Case IH 785 (15-008) - FRONT WHEEL, 4-WHEEL DRIVE Wheels & Traction

1

TIRE ASSY

1шт.

2

1004591C91

WHEEL ASSY

W7-24 FRONT

2шт.

2

1014686C93

SPARE PART ASSY W8-24 FRONT

2шт.

2

1014646C93

SPARE PART ASSY, W9-24 FRONT, ORDER 2 OFF CORRESPONDING NAGBOL FRONT WHEELS

2шт.

2

3125942R91

WHEEL ASSY.

CPTE, W/7-24, FRONT NAGBOL

1шт.

1500205C1

RIM

WHEEL W/LUGS

1шт.

1500208C1

DISC

WHEEL

1шт.

1500209C1

BOLT

6шт.

1500210C1

NUT

6шт.

1500211C1

WASHER

6шт.

2

3125943R91

WHEEL ASSY

CPTE, W/8-24, FRONT NAGBOL

1шт.

1500206C1

RIM

WHEEL W/LUGS

1шт.

1500208C1

DISC

WHEEL

1шт.

1500209C1

BOLT

6шт.

1500210C1

NUT

6шт.

1500211C1

WASHER

6шт.

2

3125944R91

WHEEL ASSY.

CPTE, W/9-24, FRONT NAGBOL

1шт.

1500207C1

RIM

WHEEL W/LUGS

1шт.

1500208C1

DISC

WHEEL

1шт.

1500209C1

BOLT

6шт.

1500210C1

NUT

6шт.

1500211C1

WASHER

6шт.

3

1004592C1

RIM

USED W/WHEEL 1014591C91

2шт.

3

1002008C1

RIM

WHEEL USED W/WHEEL 1014686C93

2шт.

3

1060391C1

RIM

WHEEL USED W/WHEEL 1014646C93

1шт.

4

1004593C1

DISC, WHEEL

KIMCO SERVICE ONLY

2шт.

5

1002000C1

WHEEL BOLT

KIMCO SERVICE ONLY

1шт.

5

1500605C1

BOLT,M16 x 1.5 x 88mm

KIMCO REWORKED WHEELS

8шт.

6

1014946C1

NUT

8шт.

1014377C1

WASHER

8шт.

3147863R91

RIM

WHEEL ASSY, W10-24

2шт.

3147865R1

DISC, WHEEL

24 INS

2шт.

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

12шт.

425-1110

NUT,5/8"-18, G5

12шт.

492-11062

BEARING WASHER,5/8"

12шт.

1502033C91

WHEEL

ASSY, W10-24

2шт.

1502034C1

DISC, WHEEL

2шт.

1502035C1

RIM

WHEEL ASSY, WHEEL

2шт.

1500210C1

NUT

5/8 UNF

12шт.

1500209C1

BOLT

5/8 X 78 MM

12шт.

1502036C1

WASHER

OPTIONAL

12шт.

1500774C91

WHEEL

ASSY, W8-24

2шт.
