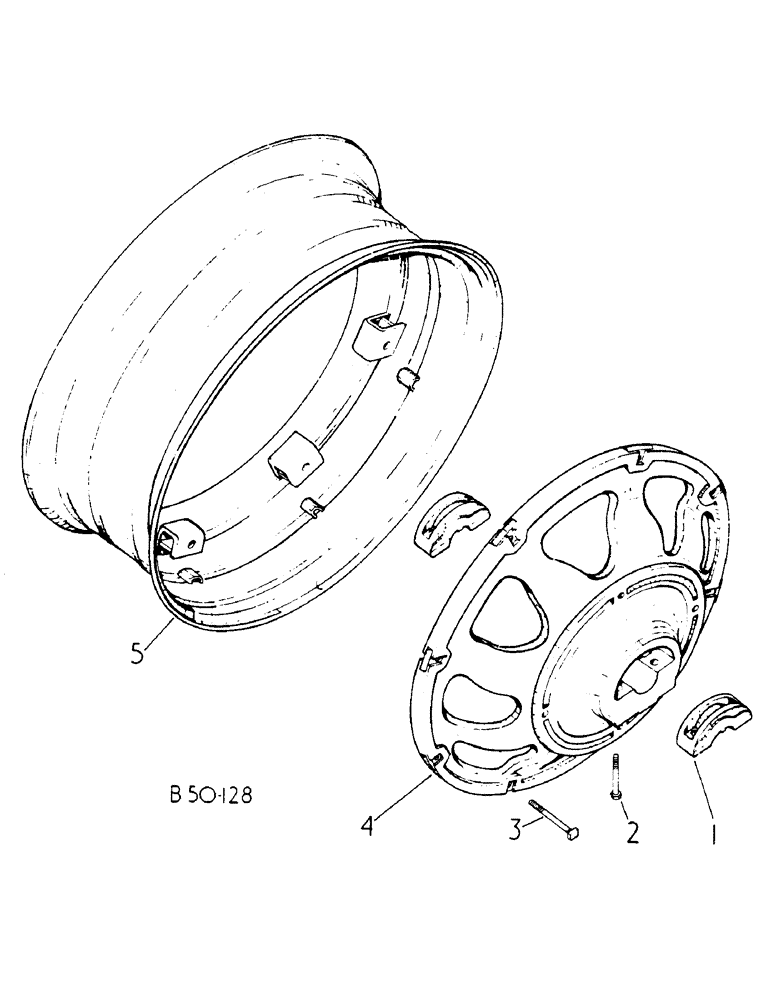

Запчасти Case IH 785 (15-006) - REAR WHEEL RIM AND DISC, CAST Wheels & Traction

1

389539R1

CLAMP

REAR WHEEL HUB

4шт.

2

14-1480

BOLT,Hex, 7/8" - 14 x 5", Gr 5

7/8-19 X 4-3/4 HEX HD CAP

8шт.

3

381727R1

SCREW

BOLT, RIM CLAMP W/9-42

16шт.

3

3073516R1

BOLT

RIM CLAMP W/14-38

16шт.

363018R1

NUT

16шт.

4

3069092R1

DISC

WHEEL, REAR, CAST

2шт.

5

3073513R91

RIM

WHEEL ASSY, REAR WHEEL W11-38

2шт.
