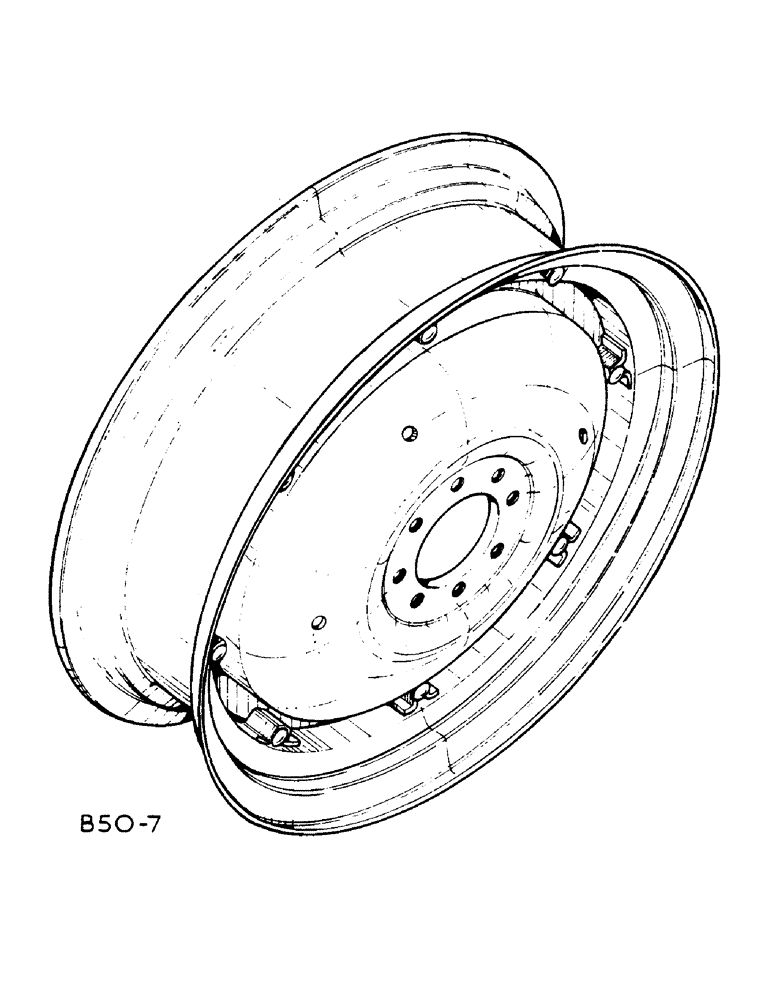

Запчасти Case IH 785 (15-004) - REAR WHEELS Wheels & Traction

1

527256R1

WHEEL ASSY W11-36 REAR, FOR 12-4-36 AND 13-6-36 TYRE

2шт.

406949R1

RIM

W/LUG W 11-36 REAR WHEEL

2шт.

406942R1

DISC

REAR WHEEL

2шт.

1

527253R91

WHEEL

ASSY DW 14-30 REAR, FOR W14-30/16.9-3, 15-30/18-30 TYRE

2шт.

406944R1

RIM

WHEEL W/LUG DW 14-30 REAR WHEEL

2шт.

406942R1

DISC

REAR WHEEL

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

REAR WHEEL DISC

16шт.

406953R1

NUT

REAR WHEEL DISC BOLT

16шт.

406952R1

WASHER

REAR WHEEL DISC BOLT

16шт.

1

3113432R91

WHEEL

ASSY W15L-30 REAR, FOR W 15-30 TYRE

2шт.

3116540R1

RIM

WHEEL W/LUG

2шт.

3116404R1

DISC

REAR WHEEL

2шт.

3116403R1

BOLT (SPREADER)

REAR WHEEL DISC

12шт.

102639

NUT,5/8"-11, G5

12шт.

934233R1

LOCK WASHER

LOCK 5/8

12шт.

1

3113316R91

WHEEL

ASSY, FOR 12-38/13.6-38 TYRE

2шт.

3113462R1

RIM

W/LUGS W11-38 REAR WHEEL

2шт.

3113463R1

DISC, WHEEL

REAR

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

REAR WHEEL RIM MTG

16шт.

406952R1

WASHER

REAR WHEEL RIM MTG BOLT

16шт.

406953R1

NUT

REAR WHEEL RIM MTG BOLT

16шт.

1

3113317R91

WHEEL

ASSY, W14-34 REAR, FOR 14-34 TYRE

2шт.

3113464R1

RIM

WHEEL W/LUG W 14-34 REAR WHEEL

2шт.

406948R1

WHEEL DISC

REAR

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

REAR WHEEL DISC

16шт.

406952R1

WASHER

REAR WHEEL RIM MTG BOLT

16шт.

406953R1

NUT

REAR WHEEL RIM MTG

16шт.
