Запчасти Case IH 785 (12-047) - CONNECTING ROD, PISTON AND SLEEVE Power

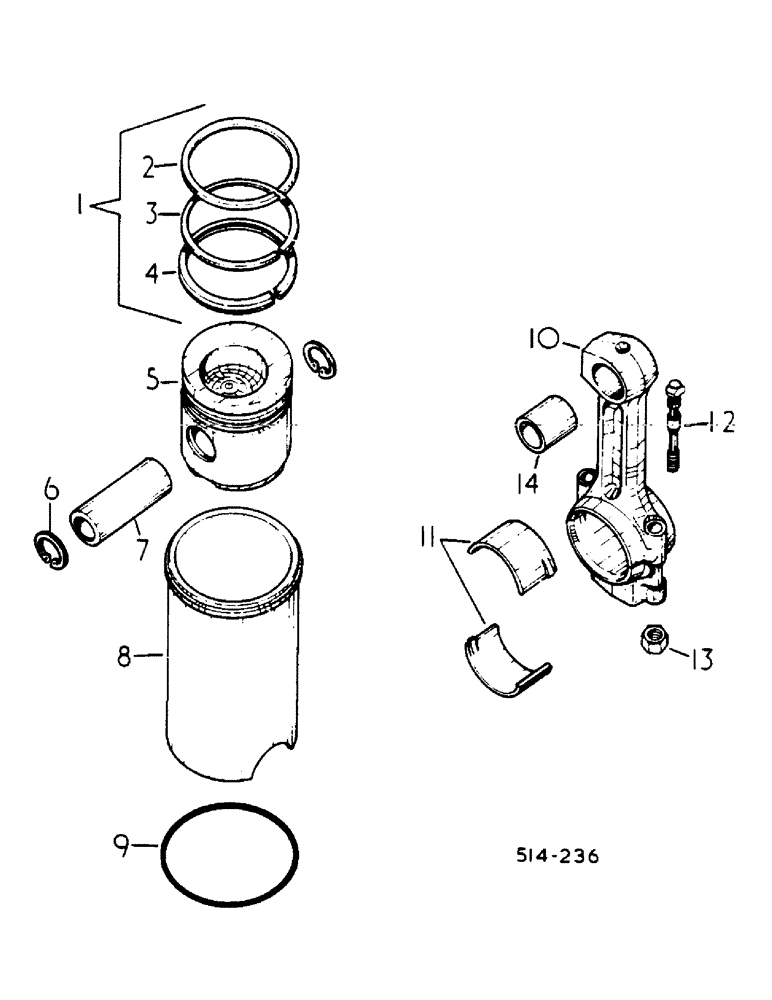

Схема запчастей Case IH 785 - (12-047) - CONNECTING ROD, PISTON AND SLEEVE Power
4
12
5
9
14
10
6
1
8
3
7
11
13
2

Артикул

Название

Примечание

Количество

1

3218669R91

PISTON RING SET

USED W/3 RING PISTONS

1шт.

2

RING, COMPRESSION, FIRST, USED W/3 RING PISTONS, ORDER SET 3218669R91

4шт.

3

RING, COMPRESSION, SECOND, USED W/3 RING PISTONS, ORDER SET 3218669R91

4шт.

4

RING, COMPRESSION, THIRD, USED W/3 RING PISTONS, ORDER SET 3218669R91

4шт.

5

3218668R93

PISTON

ASSY, W/SLEEVE, 3 PISTON RING

4шт.

6

933327R1

SNAP RING,M36, Int

PISTON PIN RETAINER

8шт.

7

3055217R2

PISTON PIN

PISTON

4шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE, CYL

4шт.

9

3228344R1

SEALING RING,5mm Thk x 110mm ID

CYLINDER SLEEVE, BLACK W/FOUR RED STRIPES, UP TO ENG. SERIAL NO. 123040

4шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

CYLINDER SLEEVE, BLACK W/FOUR GOLD STRIPES, ENG. SERIAL NO. 123041 UP

4шт.

10

3055030R24

ROD, CONNECTING

ASSY, CONNECTING W/TWO BOLTS AND BUSHING

4шт.

11

3055351R91

BEARING ASSY

ASSY, CONNECTING ROD

4шт.

12

3055033R11

BOLT

Connecting rod w/nut

8шт.

13

NSS

NOT SOLD SEPARAT

NUT, CONNECTING ROD BOLT

8шт.

14

3132018R1

BUSHING

PISTON PIN

4шт.

Выбрано товаров: 15
