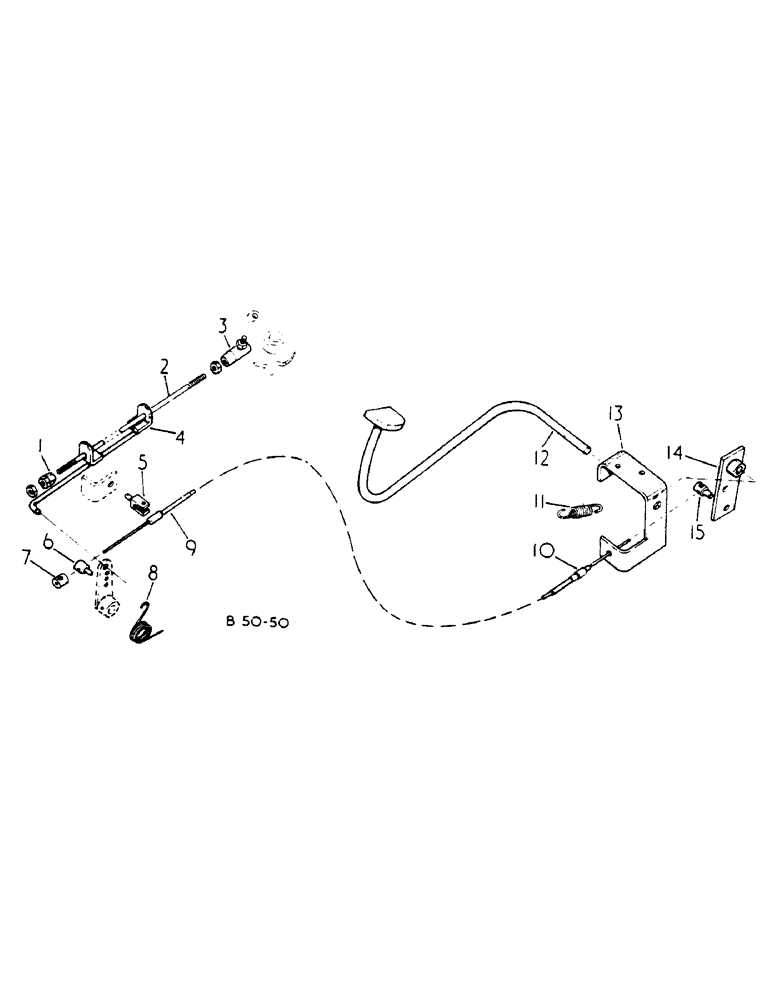

Запчасти Case IH 785 (12-036) - FOOT ACCELERATOR, MACHINES FITTED W/CAB Power

1

528776R1

NUT

FOOT ACCELERATOR PICK-UP ROD SWIVEL

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

2

528775R1

ROD

FOOT ACCELERATOR

1шт.

3

191474

BALL JOINT

1/4 UNF

1шт.

3

192227

BALL JOINT

1/4 UNF

1шт.

3

27258R1

BALL JOINT

1/4 UNF

1шт.

4

3121956R1

ROD ASSY.

BELL CRANK PULL

1шт.

934606R1

COTTER PIN,M1.6 x 16

1.6 X 16 MM COTTER

1шт.

933347R1

WASHER,M8 x 16 x 1.6

8.8 X 17 X 1.6 MM

1шт.

5

534621R1

CLAMP

SWIVEL

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

120217

LOCK WASHER,#10

1шт.

454065

SCREW,Hex Hd, #10-32 x 3/4"

NO. 10-32 X 3/4 HEX HD MACH

1шт.

453284

NUT,#10-32

NO. 10-32 HEX

1шт.

6

3121958R1

PIVOT

FOOT ACCELERATOR CABLE

1шт.

933346R1

WASHER,M6 x 12 x 1.6

6.4 X 12.5 X 1.6 MM

1шт.

934787R1

COTTER PIN,M1.6 x 10

1.6 X 10 MM COTTER

1шт.

7

3121959R1

STOP

FOOT ACCELERATOR CABLE END

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

NO. 8-32 X 3/8 FILL SLT MACH

1шт.

8

539012R1

SPRING

TORSION

1шт.

9

3112807R2

CABLE

1шт.

10

677516R1

BUSHING

1шт.

11

704526R1

SPRING

ACCEL. BELL CRANK ARM RETURN

1шт.

12

3121948R2

PEDAL

ASSY, FOOT ACCELERATOR

1шт.

13

3121950R2

BRACKET

PEDAL ASSY, FOOT ACCELERATOR

1шт.

181593

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

5/16-24 X 5/8 HEX HD

2шт.

120368

NUT,5/16"-24, G5

2шт.

14

3121953R1

ARM

ASSY, ACCELERATOR BELL CRANK

1шт.

15

396388R1

PIVOT

ACCELERATOR ARM

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

1шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 1/16 X 1/2 COTTER

1шт.

446179

WASHER,#12

1/4 X 1/2 X .036

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 X 3/8 FIL. HD SLT MACH

1шт.
