Запчасти Case IH 785 (12-028) - FUEL SHUTOFF CONTROLS, UP TO 785/12358 Power

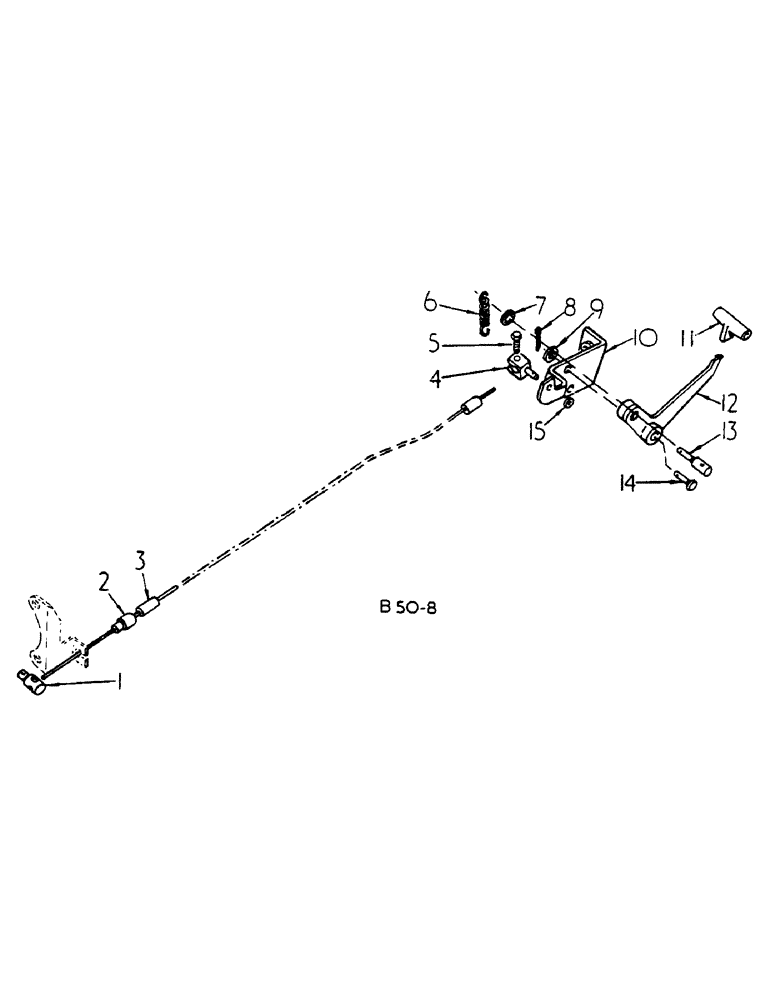

Схема запчастей Case IH 785 - (12-028) - FUEL SHUTOFF CONTROLS, UP TO 785/12358 Power
1
3
12
5
13
2
7
9
8
6
4
14
10
15
11

Артикул

Название

Примечание

Количество

1

396388R1

PIVOT

FUEL SHUTOFF LEVER SWIVEL

1шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 1/16 X 1/2

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 X 3/8 SLT FL HD

1шт.

446179

WASHER,#12

1/4 X 1/2 X .036

1шт.

2

677516R1

BUSHING

FUEL SHUTOFF CONTROL CABLE

1шт.

3

529001R1

CABLE

FUEL SHUTOFF CONTROL, BOSCH INJECTION

1шт.

3

3125552R1

CABLE

FUEL SHUTOFF CONTROL, SEKURA 382.415

1шт.

4

534621R1

CLAMP

CABLE SWIVEL

1шт.

4

536852R1

CLAMP

CABLE SWIVEL, OPTIONAL

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

453284

NUT,#10-32

10-32 HEX MACH SCREW

1шт.

120217

LOCK WASHER,#10

1шт.

5

454065

SCREW,Hex Hd, #10-32 x 3/4"

10-32 X 3/4 HEX HD MACH

1шт.

6

528998R2

SPRING

FUEL SHUTOFF CONTROL CABLE

1шт.

7

528999R1

CIRCLIP

RETAINER, FUEL SHUTOFF CONTROL CABLE SPRING

1шт.

7

531714R1

CIRCLIP

RETAINER, FUEL SHUTOFF CONTROL CABLE SPRING, OPTIONAL

1шт.

8

648002

KNIFE

1/8" x 3/4"

1шт.

9

469668R1

WASHER

3/8 X 13/32 X .060

1шт.

10

528992R1

BRACKET

ASSY, FUEL SHUTOFF LEVER

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

11

3121392R1

KNOB

FUEL SHUTOFF CONTROL CABLE

1шт.

12

531335R1

ARM ASSY.

FUEL SHUTOFF CONTROL

1шт.

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

SPARE PART 8/32 X 5/8 SLT FL HD

1шт.

13

528997R1

BRACKET, PIVOT

PIVOT BRACKET SWIVEL, FUEL SHUTOFF CONTROL CABLE

1шт.

14

23369R1

HEADED PIN,3/8" x 7/8"

1шт.

15

446179

WASHER,#12

1/4 X 1/2 X .036

1шт.

Выбрано товаров: 26
