Запчасти Case IH 785 (04-016) - BRAKE CYLINDERS AND CONNECTIONS, 3075 UP, 278-541 UP (5.1) - BRAKES

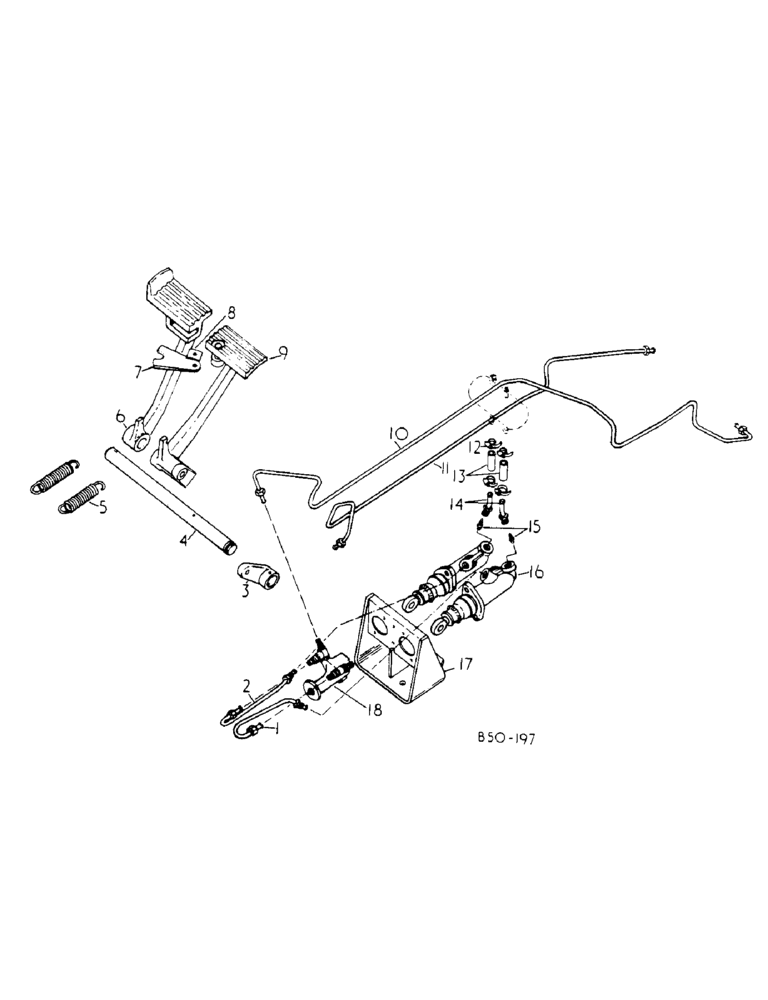

Схема запчастей Case IH 785 - (04-016) - BRAKE CYLINDERS AND CONNECTIONS, 3075 UP, 278-541 UP (5.1) - BRAKES
4
17
16
15
7
10
18
9
14
2
13
3
1
12
5
11
6
8

Артикул

Название

Примечание

Количество

1

530851R2

TUBE

EQUALIZER LH

1шт.

2

530852R1

TUBE

EQUALIZER RH

1шт.

3

3125228R1

ARM

R.H., BRAKE PEDAL

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

up to s/n 12564, 278 up to s/n 800 5/16" x 1 1/2", Coiled

1шт.

3

1500755C1

ARM

R.H,. BRAKE PEDAL

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1/4" x 1 1/2", Coiled

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

WOODRUFF 1/4 X 7/8, S/N 12565 UP, 278 S/N 801 UP

1шт.

4

3125229R1

SHAFT

PEDAL SUPPORT, SYNCHROMESH DRIVE TRACTORS, UP TO S/N 12564, 278 UP TO S/N 800

1шт.

4

1500753C1

SHAFT

PEDAL SUPPORT, S/N 12565 UP, 278 S/N 801 UP

1шт.

5

3125230R1

SPRING

BRAKE PEDAL RETURN

2шт.

6

399741R4

PEDAL

R.H. BRAKE

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

up to s/n 12564, 278 up to s/n 800 5/16" x 1 3/4", Coiled

1шт.

6

1500752C1

PEDAL

R.H. BRAKE

1шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

WOODRUFF 1/4 X 7/8, S/N 12565 UP, 278 S/N 801 UP

1шт.

399744R1

BOLT

BOLT, BRAKE PEDAL ADJUSTING

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

7

43751DB

LATCH, PEDALS

PLATE, BRAKE LOCK

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 X 1-1/4 SMALL B-HD SOLID

1шт.

8

51293D

SPRING

BRAKE PEDAL LOCK TENSION

1шт.

9

3125226R91

PEDAL ASSY.

LH BRAKE

1шт.

Bushing used to mount pedal is 539834R1 per notes in catalogs.

1шт.

399744R1

BOLT

BOLT, BRAKE PEDAL ADJUSTING

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1шт.

10

66093C1

BRAKE LINE

BRAKE, LH, 784

1шт.

10

3129260R1

TUBE ASSY.

BRAKE, LH, 785

1шт.

11

66094C1

BRAKE LINE

BRAKE RH

1шт.

12

3125239R1

COLLAR

WORM DRIVE HOSE

4шт.

13

3125843R1

HOSE,7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

2шт.

14

3125836R1

TUBE ASSY.,23, 35 mm Length

BRAKE CYLINDER SUPPLY

2шт.

15

537849R2

SCREEN

AND ORIFICE ASSY, BRAKE RESERVOIR TUBE

2шт.

16

527542R92

CYLINDER

ASSY, BRAKE MASTER

2шт.

16

527542R92GV

BRAKE CYLINDER

Value, Brake, Master Cylinder Assy.

2шт.

(P/N 527542R92) - Seal Kit for Brake Master 3125824R1

1шт.

16

71925C1

HOSE

SPARE PART MASTER BRAKE CYL. RETAINING

1шт.

16

71926C1

BELLOWS

INSULATOR, BRAKE CYLINDER DUST

1шт.

16

3125824R1

SEAL KIT

KIT, SEAL, AS REQUIRED

1шт.

17

3125224R1

BRACKET

ASSY, BRAKE CYL.MOUNTING, SYNCHROMESH DRIVE TRACTORS

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

4шт.

103320

LOCK WASHER,5/16"

4шт.

18

530374R92

VALVE

ASSY, BRAKE EQUALIZER

1шт.

530393R1

WASHER, EQUALIZER VALVE

2шт.

9411128

TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run

ADJ.STR.THRU.90 DEG

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

68434C3

SEAL PACKAGE

EQUALIZED VALVE O-RING SERVICE

1шт.
