Запчасти Case IH 785 (10-072) - HYDRAULIC TRAILER BRAKE, 785 (07) - HYDRAULICS

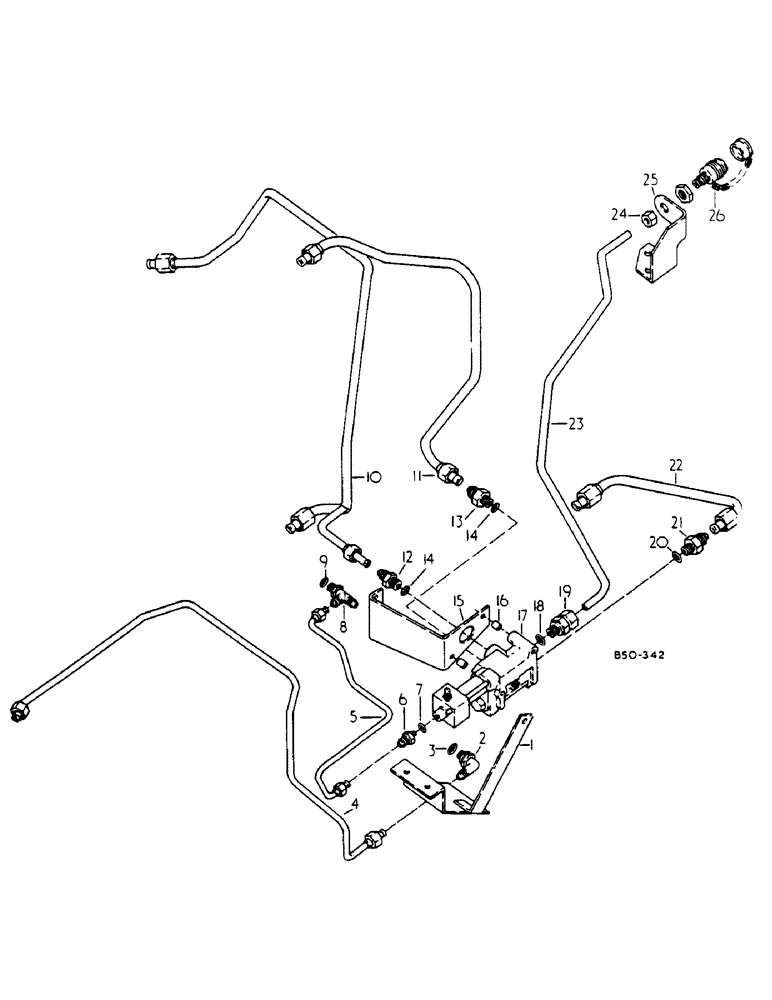

Схема запчастей Case IH 785 - (10-072) - HYDRAULIC TRAILER BRAKE, 785 (07) - HYDRAULICS
18
24
16
17
21
7
1
22
25
14
13
10
6
4
2
12
20
5
14
8
19
26
15
11
3
23

Артикул

Название

Примечание

Количество

1

1500676C1

GUARD ASSY.

ROCK

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, 5/16-18 X 3/4 HEX HD

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

3шт.

2

530052R2

VALVE

ASSY, ELBOW PS CHECK

1шт.

530056R1

WASHER

1шт.

9410059

LOCK NUT,Blkhd, 9/16"-18

NOT USED W/WEST PULLMAN VALVES

1шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not used with West Pullman valves

1шт.

4

1500683C1

TUBE

ASSY, PS PRESSURE REAR, NOT USED W/WEST PULLMAN VALVES

1шт.

5

1500679C1

TUBE ASSY.,6.35 mm OD, 2049, 205 mm Length

BRAKE TO VALVE L.H.

1шт.

6

1500680C1

ADAPTER,M10 x 1 x 7/16"-20, 37º Fl

7/16-20

1шт.

7

1500681C1

O-RING

1шт.

8

9417128

FITTING

TEE

1шт.

9

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

1500669C1

TUBE ASSY.,15.8 mm OD, 325.5, 140.2 mm Length

DRAFT CONTROL RETURN

1шт.

11

1500667C1

TUBE ASSY.

DRAFT CONTROL PRESSURE

1шт.

12

1500662C1

ADAPTER,M18 x 1.5 x 3/4"-16, 37 Degree Fl

M18 X 1.5 1/2 TUBE

1шт.

13

1500661C1

ADAPTER,M18 x 1.5 x 7/8"-14, 37 Degree Fl

M18 X 1.5 5/8 TUBE

1шт.

14

1500663C1

O-RING

2шт.

15

1500658C1

BRACKET

VALVE SUPPORT

1шт.

185282

BOLT, 3/8-16 X 3-1/4 HEX HD

2шт.

16

23323H

SPACER,1/4" Pipe x 1/2"

2шт.

17

1500659C91

VALVE

ASSY, TRAILER BRAKE, BOSCH REF 0538008316

1шт.

17

1500660C91

VALVE

ASSY, TRAILER BRAKE, HAILWOOD AND ACKROYD H80641

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

120376

NUT,5/16"-18, G5

WASHER, 5/16 LOCK

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

1500663C1

O-RING

1шт.

19

1500673C1

ADAPTER,M18 x 1.5 x M12 Tube w/Nut

1шт.

20

1500663C1

O-RING

1шт.

21

1500661C1

ADAPTER,M18 x 1.5 x 7/8"-14, 37 Degree Fl

M18 X 1.5 5/8 TUBE

1шт.

22

1500664C1

TUBE ASSY.,15.88 mm OD, 235, 136 mm Length

SPARE PART MCV TO BRAKE VALVE

1шт.

23

1500668C1

TUBE,12 mm OD, 397, 316.7 mm Length

SPARE PART BRAKE VALVE TO COUPLING

1шт.

24

1500671C1

NUT

1шт.

1500670C1

SLEEVE

OLIVE

1шт.

25

1500675C1

BRACKET

COUPLING SUPPORT

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, 1/2-13 X 2 HEX HD CAP, NOT USED W/WEST PULLMAN VALVES

2шт.

26

3131463R91

QUICK MALE COUPLING

1шт.

1135283R1

CAUTION DECAL

CAUTION, NOT ILLUSTRATED

1шт.
