Запчасти Case IH 785 (10-012) - HYDRAULIC LUB PUMP, SYNCHROMESH DRIVE (07) - HYDRAULICS

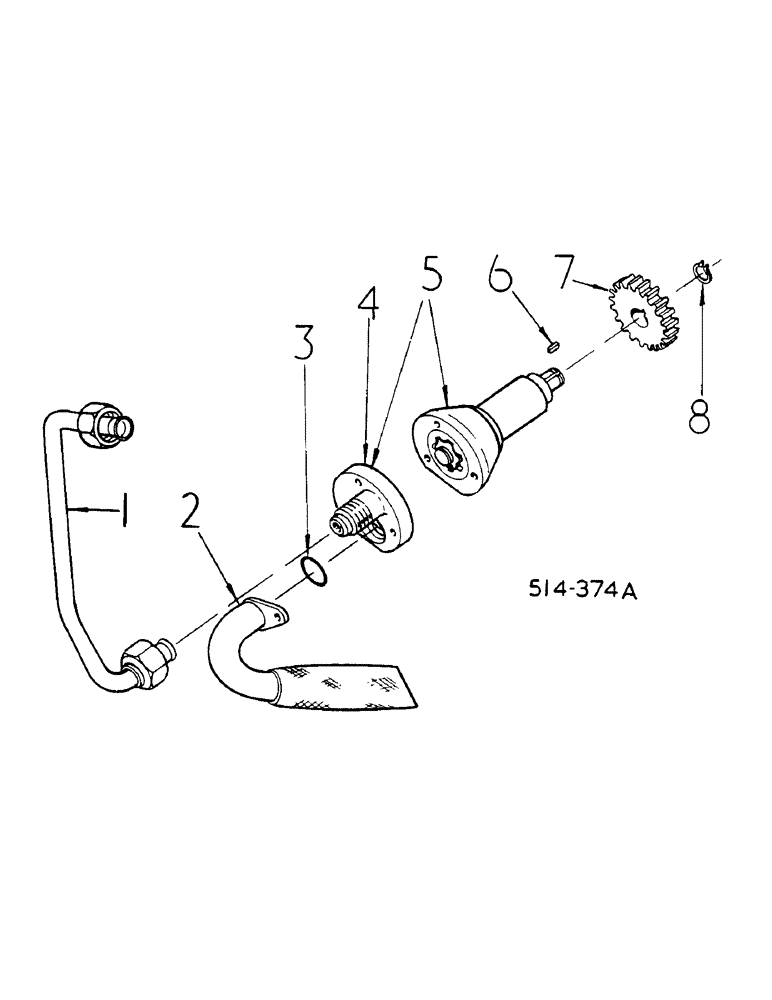

Схема запчастей Case IH 785 - (10-012) - HYDRAULIC LUB PUMP, SYNCHROMESH DRIVE (07) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

527423R1

PRESSURE PIPE

ASSY, TRANSFER PUMP OUTLET

1шт.

2

529099R1

SUCTION PIPE

TUBE, TRANSFER PUMP

1шт.

3

574069R1

O-RING,0.750" ID x .062"

3/4 X 7/8 X 1/16

1шт.

4

529275R2

PLATE

END, USED W/PUMP 528504R1

1шт.

4

3123727R1

PLATE

END, USED W/PUMP 3123726R91

1шт.

5

528504R1

PUMP

ASSY, TRANSFER

1шт.

5

3123726R91

PUMP, HYDRAULIC

ASSY, TRANSFER, OPTIONAL

1шт.

139371

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

5/16-18 X 1/2 HEX SOC HD

1шт.

527424R1

SCREW

TRANSFER PUMP RETAINING

1шт.

6

529100R1

BUCKET TOOTH KEY

TRANSFER PUMP

1шт.

7

528095R1

PINION

GEAR, TRANSFER PUMP DRIVEN, 21T

1шт.

8

3042123R1

RING, SNAP

RING SNAP DRIVEN GEAR RETAINING

1шт.

Выбрано товаров: 12
