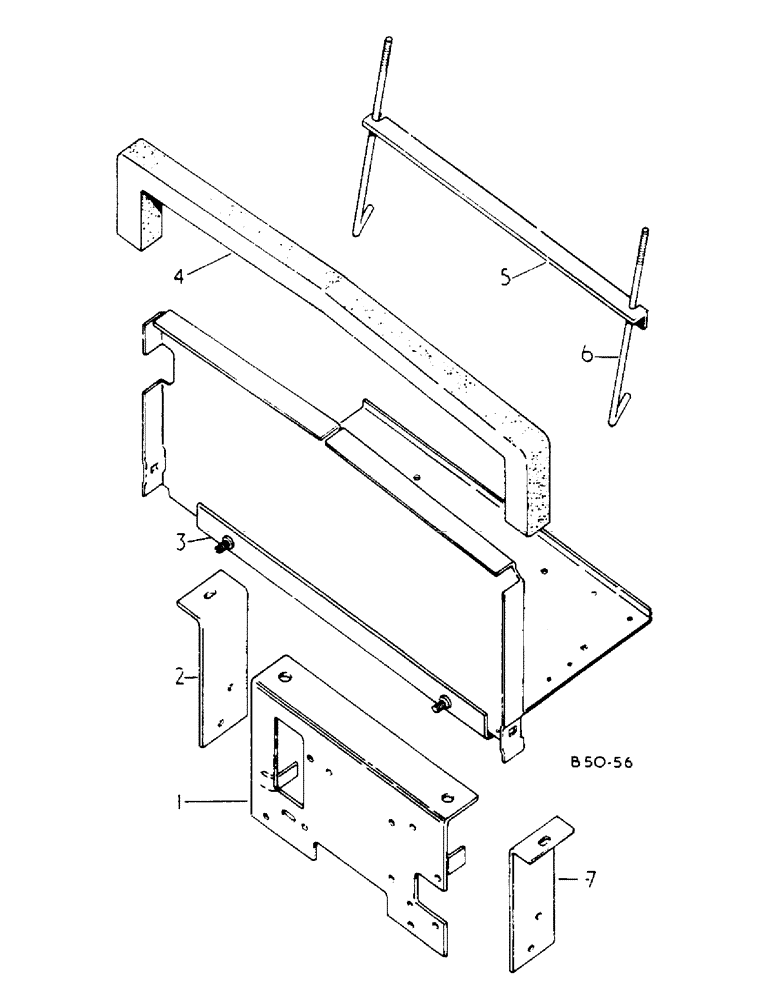

Запчасти Case IH 785 (08-051) - BATTERY TRAY, MACHINES FITTED W/CAB (06) - ELECTRICAL

1

3123057R1

SUPPORT

ASSY, BATTERY

1шт.

1

538054R1

SUPPORT

ASSY, BATTERY

1шт.

3121629R1

NUT

RETAINER, SUPER DE-LUXE CAB

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

3116893R1

SUPPORT

SPARE PART BATTERY TRAY R.H.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

21872R1

WASHER

.406 X .625 X .054 PLAIN

1шт.

3

3123055R1

TRAY ASSY.

BATTERY

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

3/8-16 X 5/8 HEX HD CAP

1шт.

103321

LOCK WASHER,3/8"

1шт.

20893R1

WASHER

11/32 X 1 X .120

2шт.

80681

LOCK WASHER,5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

3121629R1

NUT

RETAINER

2шт.

120393

BEARING WASHER,5/16", SAE

.344 X .688 X .051

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

4

402203R1

GASKET

BATTERY HEAT SHIELD

1шт.

5

3121178R1

BRACKET

BATTERY HOLD DOWN

1шт.

6

529968R2

ROD

BATTERY HOLD DOWN

2шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X .051 C-Z

2шт.

120376

NUT,5/16"-18, G5

2шт.

7

3116892R1

SUPPORT

BATTERY TRAY L.H.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

21872R1

WASHER

.406 X .625 X .054 PLAIN

1шт.

103319

LOCK WASHER,1/4"

Not Illustrated

1шт.

109084

NUT,1/4"-20, G5

Power Steering Pipe Clamp, Not Illustrated

1шт.

3125822R1

CABLE CLIP

SPARE PART 22 MM DIA., OPTIONAL, NOT ILLUSTRATED

1шт.

3125823R1

CLIP

CABLE 19 MM DIA., NOT ILLUSTRATED

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Not Illustrated

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

Not Illustrated

1шт.

492-11025

LOCK WASHER,1/4"

Located under battery tray ASM, Not Illustrated

1шт.
