(07-090) - POWER TAKE-OFF LEVER AND CONNECTIONS, 785

Запчасти Case IH 785 (07-090) - POWER TAKE-OFF LEVER AND CONNECTIONS, 785 (04) - Drive Train

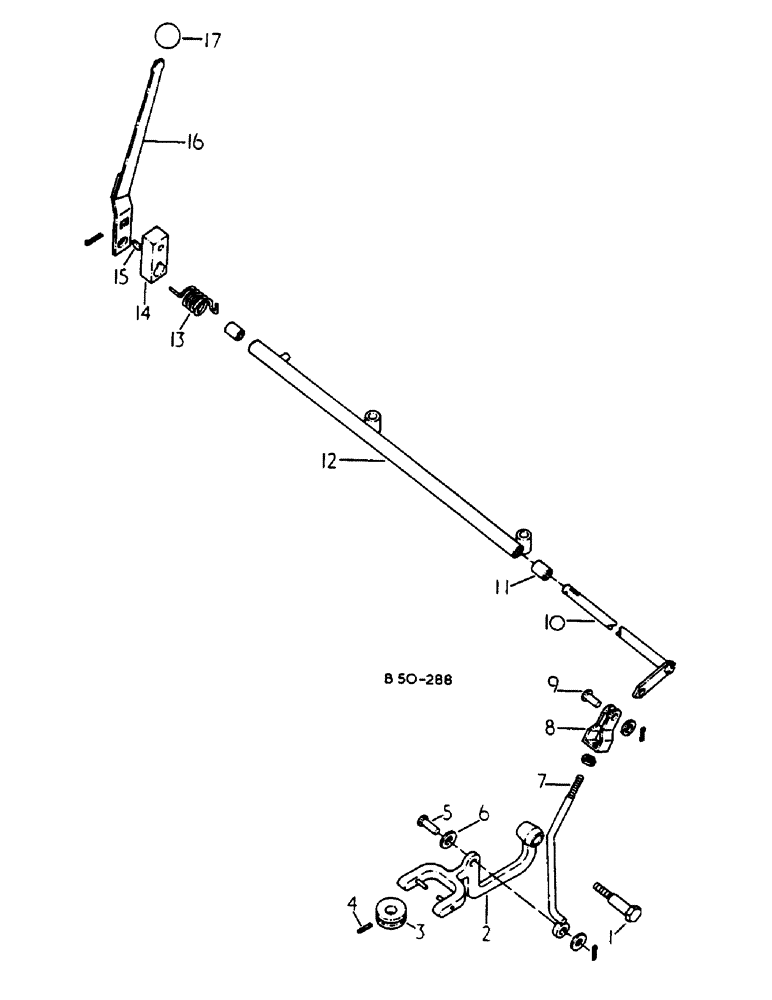

Схема запчастей Case IH 785 - (07-090) - POWER TAKE-OFF LEVER AND CONNECTIONS, 785 (04) - Drive Train
12
16
17
4
11
9
5
10
1
2
7
15
14
13
6
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

401754R1

BOLT,3/8" - 16 x 2.20"

BOLT, CONTROL ARM PIVOT SHAFT

1шт.

2

401749R2

LEVER ASSY.

CONTROL

1шт.

3

530813R2

GUIDE BUSHING

COLLAR, IPTO CONTROL

1шт.

4

25215R1

PIN,3/16" x 7/8", Coiled

1шт.

5

138084

SPLIT PIN/SAFETY PIN

3/8 X 1 CLEVIS

1шт.

103374

COTTER PIN,3/32" x 1"

1шт.

6

120394

WASHER,3/8", SAE

5/16 ID X .688 X .051 PLAIN

2шт.

7

3129234R1

ROD ASSY.

IPTO CONTROL

1шт.

425-115

NUT,5/16"-24, G5

2шт.

8

3129237R1

CLEVIS

IPTO CONTROL

1шт.

9

24660R1

CLEVIS PIN,5/16" x .719"

5/16 X .719 X .562 CLEVIS

1шт.

103374

COTTER PIN,3/32" x 1"

1шт.

10

3129240R1

SHAFT ASSY.

IPTO CONTROL CROSS OVER

1шт.

11

528839R1

BUSHING

2шт.

12

3129238R91

SUPPORT ASSY.

IPTO CONTROL SHAFT

1шт.

13

1500622C1

SPRING

IPTO LEVER RETURN, MACHINES W/CAB

1шт.

14

538719R1

PIVOT

HANDLE CONTROL

1шт.

103385

COTTER PIN,1/8" x 1"

1шт.

21903R1

WASHER

17/32 X 3/4 X .060 C-Z

1шт.

15

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

16

538720R1

LEVER ASSY.

IPTO ADJ.

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16-18 X 1-1/4 ZND

1шт.

80681

LOCK WASHER,5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

17

530090R1

KNOB

IPTO HAND LEVER

1шт.
