(15-03) - WHEELS AND TRACTION, REAR WHEEL RIM AND DISC, CAST, ROW CROP TRACTORS

Запчасти Case IH 784 (15-03) - WHEELS AND TRACTION, REAR WHEEL RIM AND DISC, CAST, ROW CROP TRACTORS Wheels & Traction

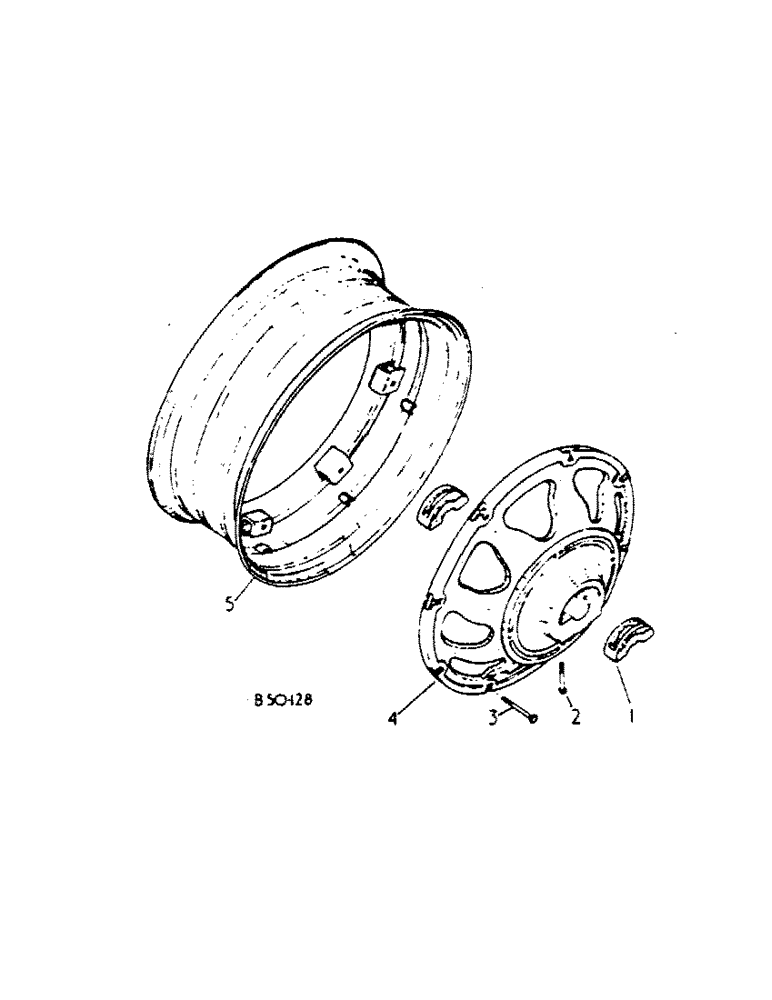

Схема запчастей Case IH 784 - (15-03) - WHEELS AND TRACTION, REAR WHEEL RIM AND DISC, CAST, ROW CROP TRACTORS Wheels & Traction
4
1
3
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

389539R1

CLAMP

rear wheel hub

4шт.

2

14-1480

BOLT,Hex, 7/8" - 14 x 5", Gr 5

SCREW, 7/8-19 x 4-3/4 hex hd cap

8шт.

3

381727R1

SCREW

BOLT, rim clamp w/9-42

16шт.

3

3073516R1

BOLT

rim clamp w/14-38

16шт.

363018R1

NUT

16шт.

4

388336R1

DISC

WHEEL, 42 in. rear disc, cast

2шт.

5

3123601R1

RIM

ASSY, rear wheel w-14-38

2шт.

5

392714R91

RIM

ASSY, rear wheel w9-42

2шт.
