(15-02[A]) - WHEELS AND TRACTION, REAR WHEELS, HEAVY DUTY DISC TYPE

Запчасти Case IH 784 (15-02[A]) - WHEELS AND TRACTION, REAR WHEELS, HEAVY DUTY DISC TYPE Wheels & Traction

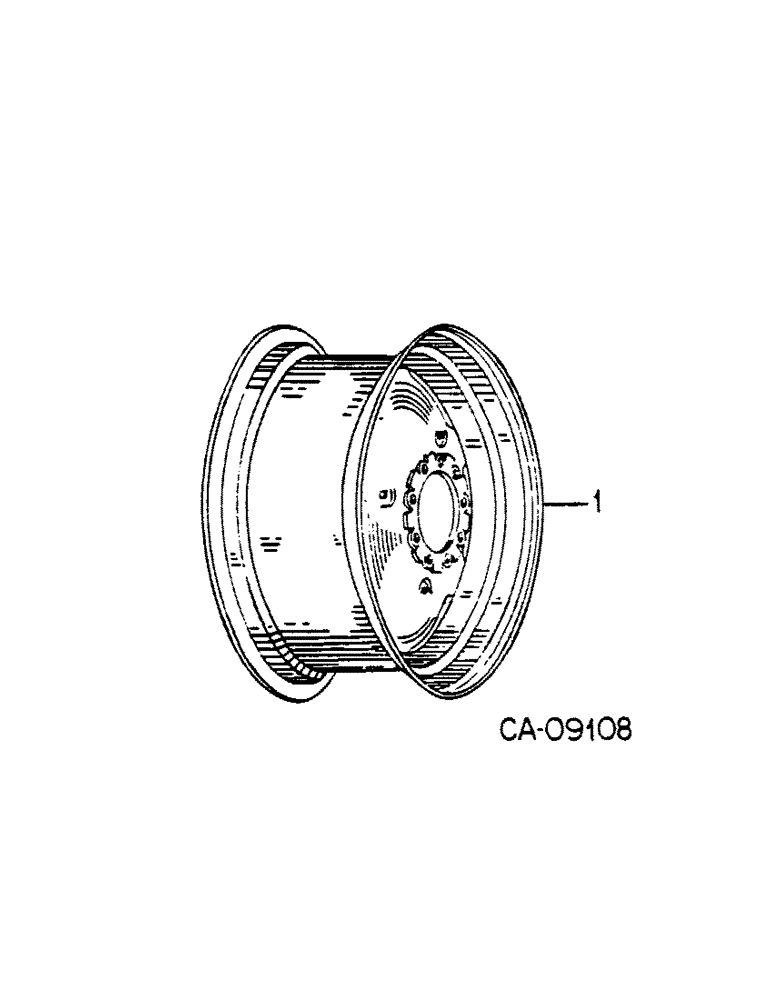

Схема запчастей Case IH 784 - (15-02[A]) - WHEELS AND TRACTION, REAR WHEELS, HEAVY DUTY DISC TYPE Wheels & Traction
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

376196R91

WHEEL

W12-24 int. w/disc

2шт.

1

376197R91

WHEEL ASSY.

WHEEL, W12-20 int. w/disc

2шт.

1

1288036C1

WHEEL ASSY.

WHEEL, W15L-24 int. w/disc

2шт.

27549R1

VALVE STEM

TR 618A

2шт.

1

1288037C1

WHEEL

W15L-28 int. w/disc

2шт.
