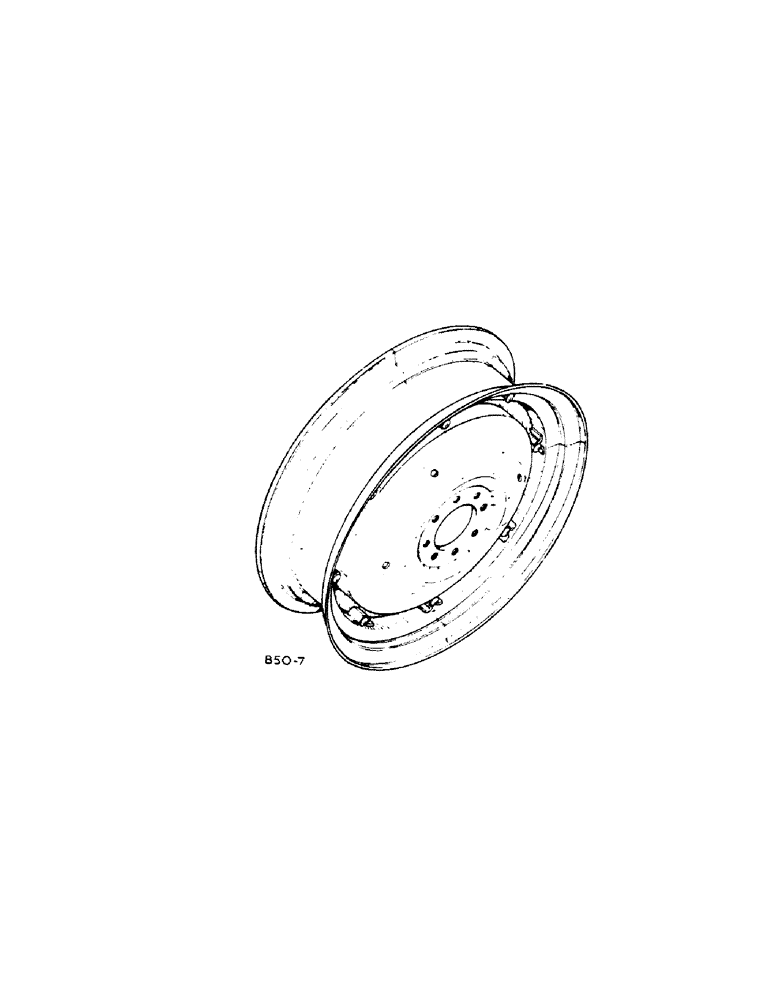

Запчасти Case IH 784 (15-01[B]) - WHEELS AND TRACTION, REAR WHEELS, EIGHT BOLT WHEEL TO RIM MOUNTING Wheels & Traction

1

527253R91

WHEEL

ASSY, DW14-30 rear

2шт.

406944R1

RIM

w/lug DW14-30 rear wheel

2шт.

406942R1

DISC

rear wheel

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel disc

16шт.

406953R1

NUT

rear wheel disc bolt

16шт.

406952R1

WASHER

rear wheel disc bolt

16шт.

1

3113317R91

WHEEL

ASSY, W14-34 rear, replaced by 1265237C91

2шт.

3113464R1

RIM

w/lug W14-34

2шт.

406948R1

WHEEL DISC

DISC, rear wheel

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel disc

16шт.

406953R1

NUT

rear wheel disc bolt

16шт.

406952R1

WASHER

rear wheel disc bolt

16шт.

1

1265237C91

WHEEL

ASSY, DW14-34 rear, replaced 3113317R91

2шт.

1265238C1

RIM

w/lugs DW14-34

2шт.

1265239C1

DISC, WHEEL

DISC, rear wheel

2шт.

1265255C1

BOLT

wheel disc

16шт.

30329R1

WASHER,M17.5 x 30 x 4, HT

17.3 x 30 x 4mm

16шт.

30170R1

NUT,M16, Cl 10

M16 PHC class 10

16шт.
