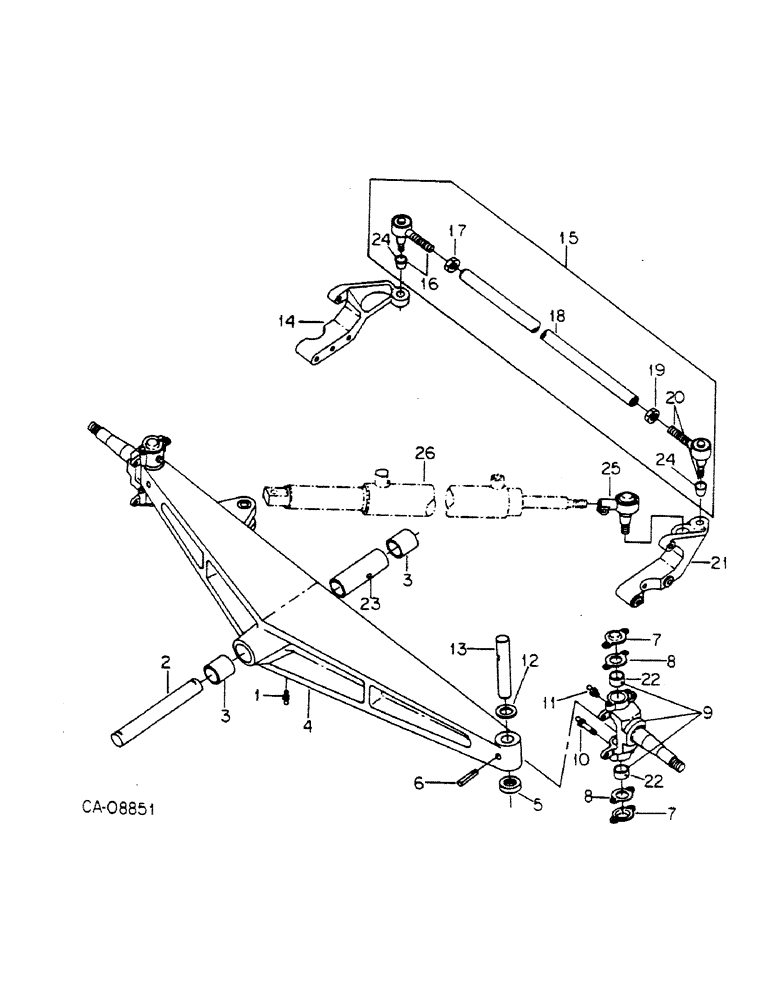

Запчасти Case IH 784 (14-10) - SUSPENSION, HEAVY DUTY CAST FRONT AXLE, UTILITY TRACTORS Suspension

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

2

85999C1

PIN

front axle pivot

1шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1/2 x 3-3/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

3

378813R1

BUSHING

axle

2шт.

4

378502R22

AXLE

ASSY, front, includes ref nos 3 and 23

1шт.

5

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

BEARING, steering knuckle thrust

2шт.

6

62798H

KEY

draw-king pin

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

70590R1

CAP

steering knuckle

4шт.

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

51124V

SCREW

steering knuckle cap

8шт.

8

70591R1

GASKET

steering knuckle cap

4шт.

9

112775R11

STEERING KNUCKLE

KNUCKLE ASSY, steering, or

2шт.

9

1213434C91

KNUCKLE

ASSY, steering, includes ref no. 22 and pin 107317

2шт.

107317

GROOVED PIN,3/16" x 1/2", Type A

Pin, Grooved, 3/16" x 1/2", Type A

1шт.

10

NLS

NO LONGER SERVICED

FITTING, 1/8 PTF short lub

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

12

61554R1

WASHER

SHIM, steering knuckle spacer light

1шт.

12

70586R1

SHIM

steering knuckle spacer med

1шт.

13

70594R91

KIT

king-pin pivot

2шт.

14

378400R1

ARM

steering knuckle RH

1шт.

271749

PLATE,Hex, 5/8" - 18 x 2 1/4", Gr 5

5/8-NF x 2-1/4 type 5

1шт.

414-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

5/8-NF x 3-3/4 type 5

2шт.

425-110

5/8-NF type 5

3шт.

15

ROD ASSY (NSS), tie, order components

1шт.

16

379327R91

END

ASSEMBLY - rod, right

1шт.

425-1910

SLOTTED NUT,5/8"-18, G5, Thk

NUT, 5/8-NF slt-thick type 5

1шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

17

379329R1

LOCK NUT

lock RH

1шт.

18

70689C1

TUBE,1.188" OD, 37.72" Length

connecting

1шт.

19

379328R1

LOCK NUT

lock LH

1шт.

20

379326R91

END

ASSEMBLY - rod, left

1шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

21

378399R1

ARM

steering knuckle LH

1шт.

414-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

5/8-NF x 2-1/4 type 5

1шт.

271755

ARM,Hex, 5/8" - 18 x 3 3/4", Gr 5

5/8-NF x 3-3/4 type 5

2шт.

121358

YOKE

5/8-NF type 5

3шт.

22

70589R1

BRONZE BUSHING,31.37mm ID x 34.66mm OD x 40.21mm L

BUSHING, steering knuckle

4шт.

23

530975R2

SPACER

1шт.

24

358900R1

SEAL

COVER, dust

2шт.

25

378817R91

BALL JOINT

END ASSY, power steering

1шт.

181646

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

3/8-NF x 1-3/4 type 5

1шт.

120369

NUT,3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

7/8 znd slt-thk type 5

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

26

CYLINDER ASSY, power steering, see group 10

1шт.
