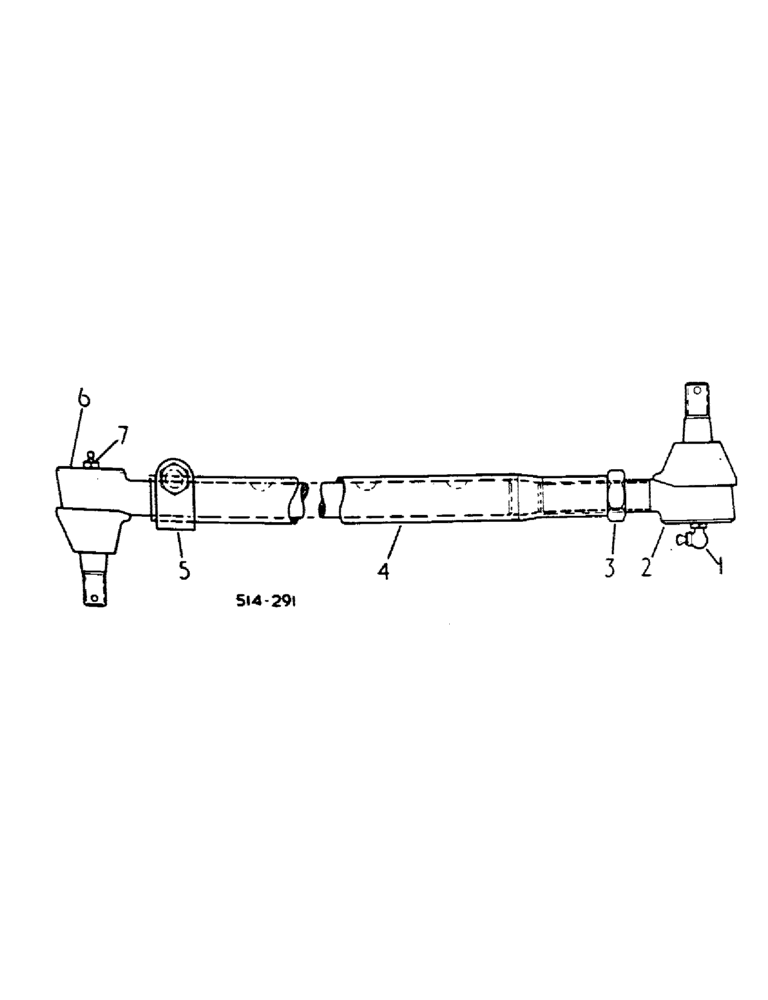

Запчасти Case IH 784 (14-09) - SUSPENSION, TIE ROD ASSEMBLY, ADJUSTABLE FRONT AXLE, STRAIGHT, ROW CROP TRACTORS, 52 TO 80 IN. TREAD Suspension

.

ROD ASSY, adj tie, order components (NSS)

2шт.

1

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

2

527658R91

BALL JOINT

END ASSY, RH

1шт.

2

527658R91GV

TIE-ROD

Value, Tie Rod End

1шт.

.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

.

358900R1

SEAL

COVER, dust

1шт.

3

390686R1

JAM NUT

11/16-18 hex jam

1шт.

4

67529C1

TUBE,0.766" ID, 1.005" OD, 16.21" Length

1шт.

5

43747D

CLAMP

1шт.

.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

7/16-20 x 1-3/4 cap

1шт.

.

9421096

LOCK WASHER,7/16"

1шт.

.

425-117

NUT,7/16"-20, G5

7/16-NF pln type 5

1шт.

6

65079C91

END

ASSY, LH

1шт.

.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Straight 1/4"-28 NPT x .54" lg

1шт.
