Запчасти Case IH 784 (14-07) - SUSPENSION, TIE ROD ASSEMBLY, ADJUSTABLE FRONT AXLE, STRAIGHT 57 TO 77 INCH TREAD UTILITY TRACTORS Suspension

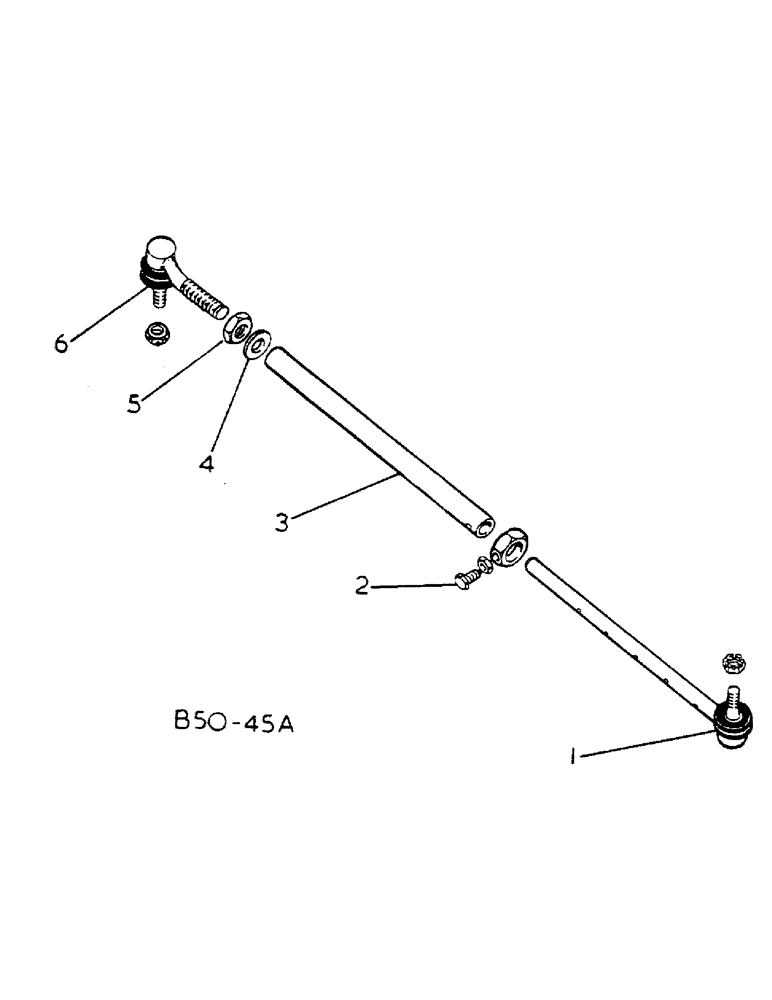

Схема запчастей Case IH 784 - (14-07) - SUSPENSION, TIE ROD ASSEMBLY, ADJUSTABLE FRONT AXLE, STRAIGHT 57 TO 77 INCH TREAD UTILITY TRACTORS Suspension
2
5
6
3
1
4

Артикул

Название

Примечание

Количество

3121427R92

ROD ASSY.

ROD ASSY, adjustable tie

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

1

3125171R1

BALL JOINT

END ASSY, LH

1шт.

2

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW, set

1шт.

3116410R1

LOCK NUT

NUT, lock

1шт.

3

3125172R1

TUBE,20.75 mm ID, 28 mm OD, 382 mm Length

ROD, intermediate

1шт.

4

3116411R1

LOCK WASHER

tab

1шт.

5

3116412R1

LOCK NUT

NUT, lock

1шт.

6

3116407R2

BALL JOINT

END ASSY, RH

1шт.

Выбрано товаров: 9
