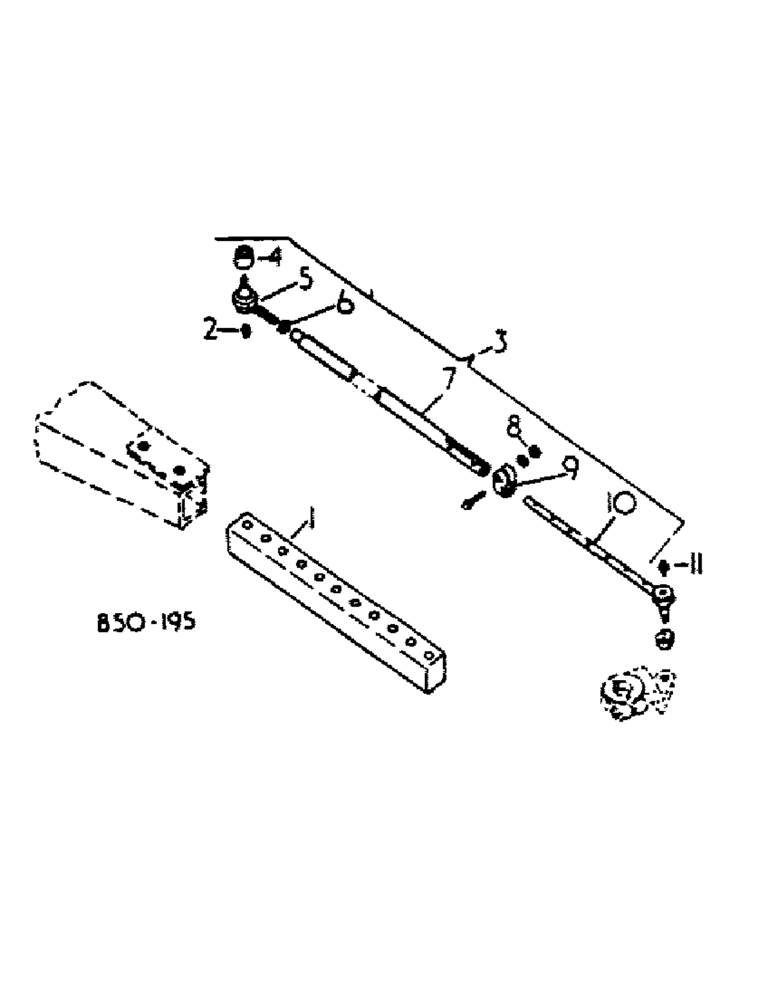

Запчасти Case IH 784 (14-04) - SUSPENSION, FRONT AXLE EXTENSION, TOBACCO SPECIAL, 88 TO 96 INCH TREAD ROW CROP TRACTORS Suspension

1

66755C92

EXTENSION

front axle

2шт.

18752R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

3/4 x 6-1/2 pln type 5

8шт.

220081

NUT

3/4 pln type 5

8шт.

2

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

2шт.

3

3125976R91

DRAG LINK

ROD ASSY, adjustable tie

2шт.

4

358900R1

SEAL

COVER, dust

4шт.

5

527658R91

BALL JOINT

END ASSY, RH

2шт.

5

527658R91GV

TIE-ROD

Value, Tie Rod End

2шт.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

6

390686R1

JAM NUT

jam 11/16 hex

2шт.

7

66756C2

TUBE,19.38 mm ID, 25.46 mm OD, mm Length

tie rod

2шт.

8

271505

BODY

7/16-20 hex

2шт.

9421096

LOCK WASHER,7/16"

2шт.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

7/16-20 x 1-3/4 cap

2шт.

9

43747D

CLAMP

2шт.

10

65079C91

END

ASSY, long-end LH

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Straight 1/4"-28 NPT x .54" lg

2шт.
