Запчасти Case IH 784 (12-47) - POWER, LUBRICATING OIL FILTER Power

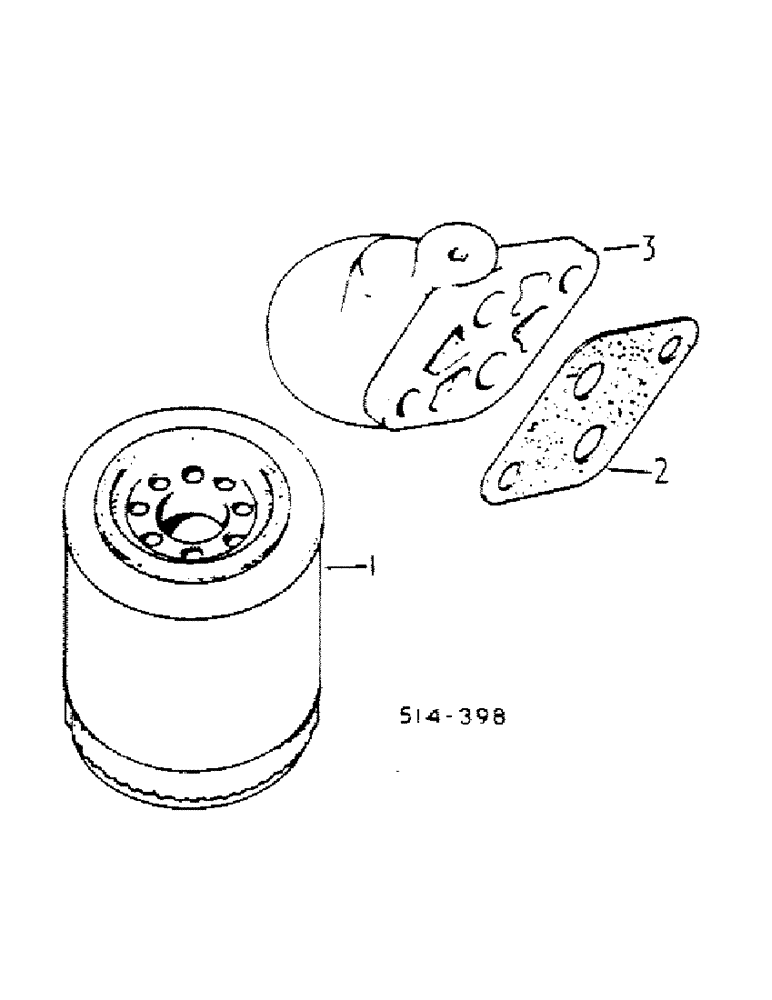

Схема запчастей Case IH 784 - (12-47) - POWER, LUBRICATING OIL FILTER Power
3
1
2

Артикул

Название

Примечание

Количество

1

3136046R93

FILTER, ENGINE OIL

FILTER, oil

1шт.

Read service bulletin for this P/N 3136046R93, as shown; dealer may want or need longer oil filter.

1шт.

2

3055237R1

GASKET

oil filter socket

1шт.

3

3136047R1

HEAD

SOCKET, oil filter

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3144513R1

SPRING WASHER

DISC, spring

2шт.

444687

PLUG,Hex Soc, 1/8"-27

Pipe, For blanking off oil pressure switch Hex Soc, 1/8"-27

1шт.

Выбрано товаров: 7
