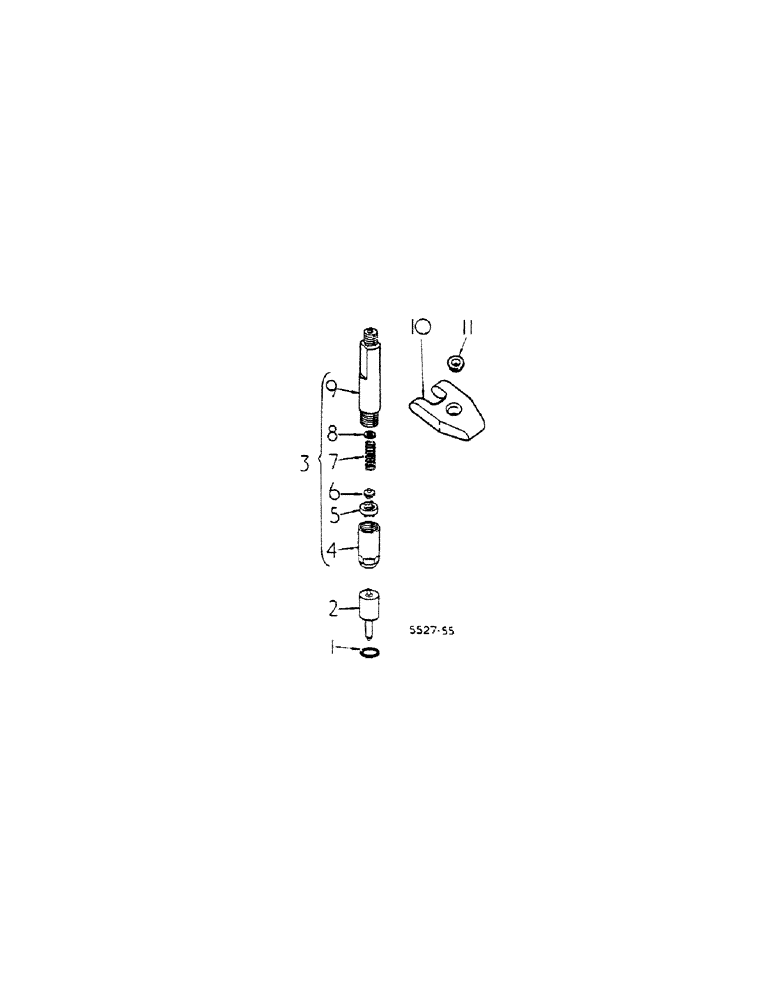

Запчасти Case IH 784 (12-38) - POWER, INJECTION NOZZLE HOLDER AND NOZZLE Power

NSS

NOT SOLD SEPARAT

HOLDER, complete injection nozzle, complete with nozzle, order individual components (NSS)

4шт.

1

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

O-RING

1шт.

2

3218251R2

NOZZLE CAP

NOZZLE

1шт.

2

735255C91

REMAN-FUEL INJECTOR

NOZZLE ASSY, injection, remanufactured, includes ref no 2 and 3

1шт.

2

1934199C1

CORE-FUEL INJECTOR

Return Number, Injection Nozzle

1шт.

3

3218247R92

HOLDER

HOLDER, nozzle, consists of items 4 thru 9 incl.

1шт.

4

3218388R1

NUT

NUT, nozzle cap

1шт.

5

3218387R1

SPACER

SPACER

1шт.

Ref.5 in the illustration a glass bowl is shown. Part Number for the glass fuel bowl is P/N 3144478R1.

1шт.

6

3218386R2

SPACER

PIN, pressure

1шт.

7

3218385R2

SPRING

SPRING, pressure

1шт.

8

3218657R1

SHIM

SHIM, .500mm

1шт.

8

3218658R1

SHIM

SHIM, .525mm

1шт.

8

3218659R1

SHIM

SHIM, .550mm

1шт.

8

3218660R1

SHIM

SHIM, .575mm

1шт.

8

3218661R1

SHIM

SHIM, .600mm

1шт.

8

3218662R1

SHIM

SHIM, .700mm

1шт.

8

3218663R1

SHIM

SHIM, .800mm

1шт.

8

3218664R1

SHIM

SHIM, .900mm

1шт.

9

3218389R1

BODY

BODY

1шт.

10

3218128R1

RETAINER

RETAINER

1шт.

24477R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

BOLT, Hex, 5/16"-18 x 1", G8, Full Thd

1шт.

11

3218129R1

WASHER

WASHER, retainer bolt

1шт.
