(12-32) - POWER, VALVE HOUSING COVER, TRACTORS WITH SIDE COVER BREATHER

Запчасти Case IH 784 (12-32) - POWER, VALVE HOUSING COVER, TRACTORS WITH SIDE COVER BREATHER Power

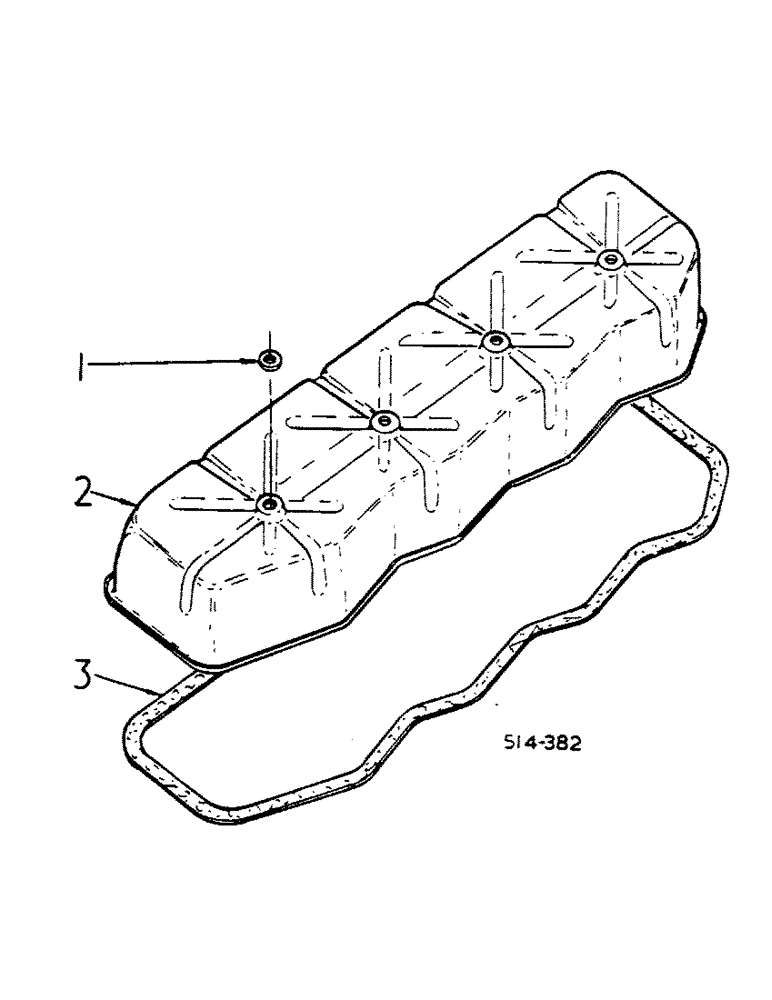

Схема запчастей Case IH 784 - (12-32) - POWER, VALVE HOUSING COVER, TRACTORS WITH SIDE COVER BREATHER Power
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

disc valve housing cover

4шт.

2

3055181R1

COVER

ASSY, valve housing

1шт.

3138637R1

CUP WASHER

WASHER, valve housing cover

4шт.

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

Replaces stud 3055223R1 Hex, 5/16"-18 x 4 1/2", G5

4шт.

3

3138642R1

GASKET

valve housing cover

1шт.
