(12-25) - POWER, CRANKCASE SIDE COVER, TRACTORS WITH VALVE COVER BREATHER

Запчасти Case IH 784 (12-25) - POWER, CRANKCASE SIDE COVER, TRACTORS WITH VALVE COVER BREATHER Power

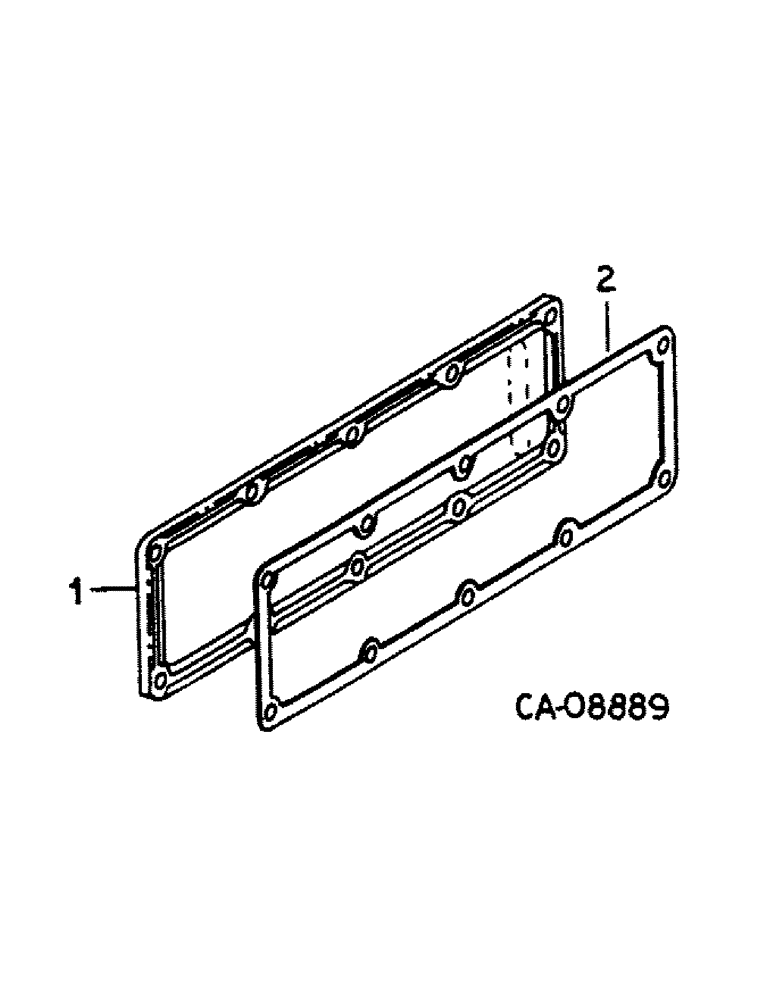

Схема запчастей Case IH 784 - (12-25) - POWER, CRANKCASE SIDE COVER, TRACTORS WITH VALVE COVER BREATHER Power
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3132155R2

COVER

crankcase side

1шт.

179814

SPACER

5/16 x 5/8 pln type 5

10шт.

3050129R1

LOCK WASHER

WASHER, lock

10шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

8.5 x 19 x 2.5mm

10шт.

2

3055393R3

GASKET

side cover

1шт.

Выбрано товаров: 5
