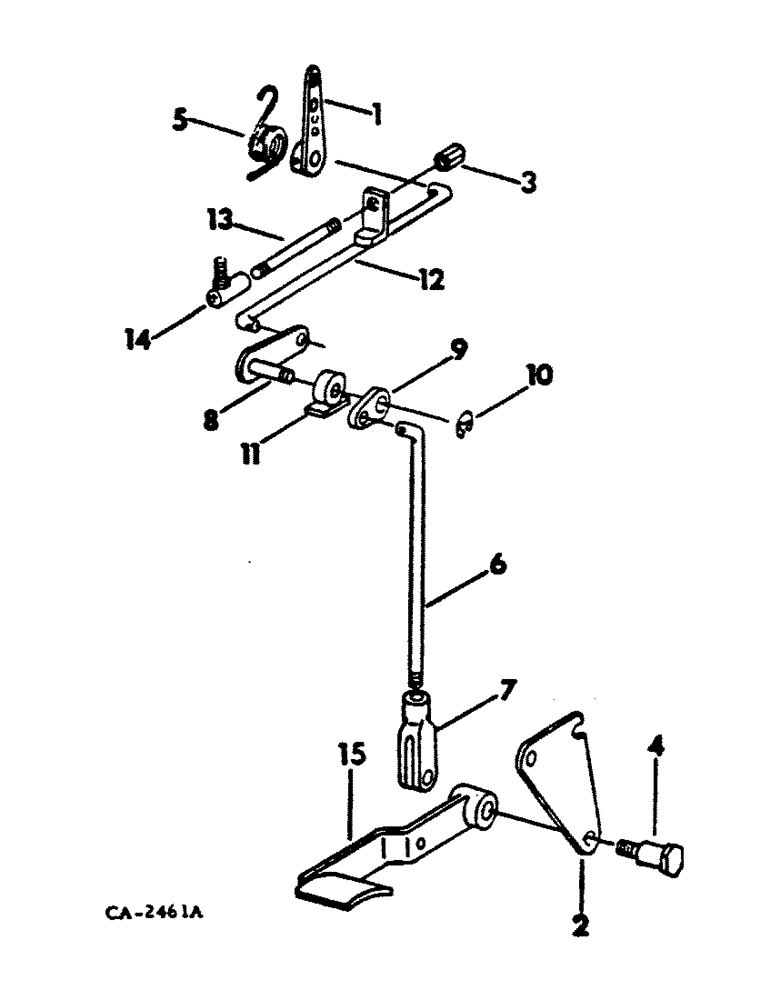

Запчасти Case IH 784 (12-16) - POWER, FOOT PEDAL ACCELERATOR, LINKAGE TYPE, INBOARD MOUNTED PEDAL Power

1

539572R2

LEVER

ASSY, idler arm

1шт.

2

528754R2

SUPPORT

BRACKET, foot accelerator pedal support

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

3

528776R1

NUT

foot accelerator pick-up rod swivel

1шт.

4

532965R3

BOLT,3/8" - 16 x 1.7"

foot accelerator pedal pivot

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

5

539012R1

SPRING

torsion

1шт.

6

528759R4

ROD

accelerator pull

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 pln cot

2шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

7

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-28 x 2 pln lt adj, or

1шт.

7

1500842C1

YOKE

CLEVIS, adjustable

1шт.

138083

PIN

1/4 x .770 clevis

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 pln cot

1шт.

8

528760R3

ARM

ASSY, bellcrank

1шт.

9

528764R3

LEVER

bellcrank

1шт.

10

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

11

532967R2

ARM

ASSY, actuating

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

12

528767R1

ROD ASSY.

ROD ASSY, bellcrank pull

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 pln cot

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

2шт.

13

528775R1

ROD

accelerator pick-up

1шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

2шт.

14

19318R1

BALL JOINT

JOINT, 1/4 pln type F ball

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

1шт.

15

69409C91

PACKAGE

foot accelerator, consists of (1) pedal (NSS), (1) pad (NSS), (1) instruction (NSS)

1шт.
