(12-11) - POWER, FUEL SHUT-OFF CONTROLS, SERIAL NO. 7113 AND ABOVE

Запчасти Case IH 784 (12-11) - POWER, FUEL SHUT-OFF CONTROLS, SERIAL NO. 7113 AND ABOVE Power

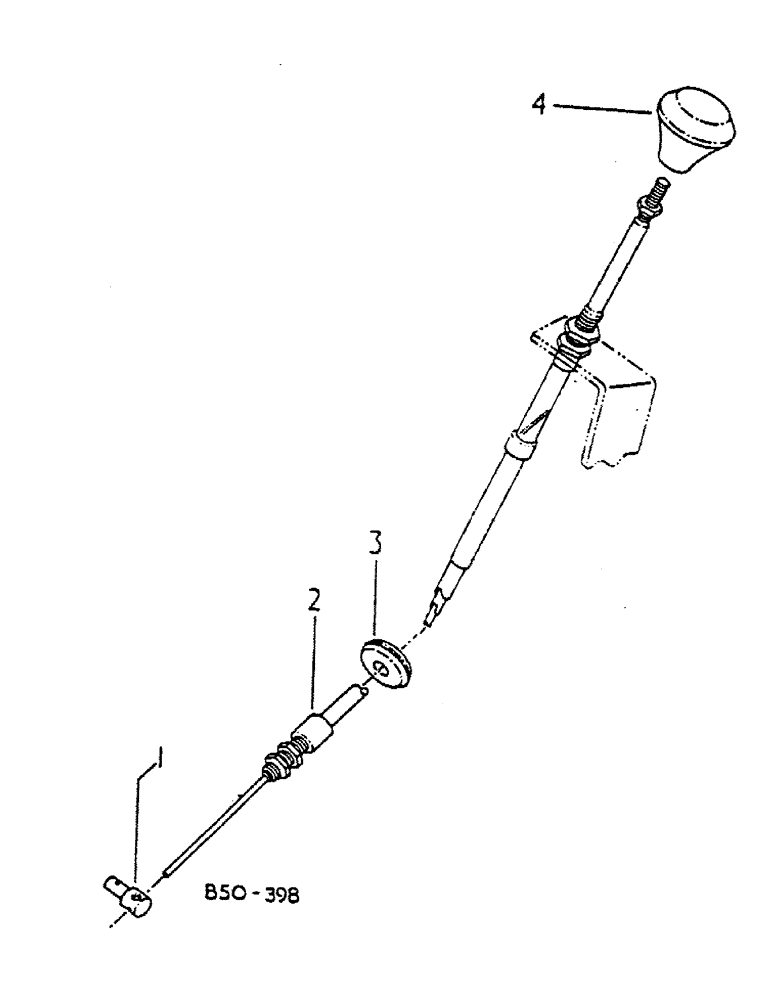

Схема запчастей Case IH 784 - (12-11) - POWER, FUEL SHUT-OFF CONTROLS, SERIAL NO. 7113 AND ABOVE Power
4
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

787190R1

COLLAR

PIVOT, fuel shut-off lever swivel, replaces 396388R1

1шт.

2

3234947R2

CABLE

fuel shut-off control, replaces 3129712R1

1шт.

1288353C1

BOOT

1шт.

3

117959

GROMMET,5/16" ID x .719" x .062"

5/16 nominal diameter, .719 O.D., .062 groove width, .312 thick, .328 hole diameter, (Not used)

1шт.

4

3221357R1

BUTTON

KNOB, fuel shut-off

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, cable lock

1шт.

Выбрано товаров: 0
