(12-04[A]) - POWER, AIR CLEANER ASSEMBLY, COOPERS, SERIAL NO. 1503 AND ABOVE

Запчасти Case IH 784 (12-04[A]) - POWER, AIR CLEANER ASSEMBLY, COOPERS, SERIAL NO. 1503 AND ABOVE Power

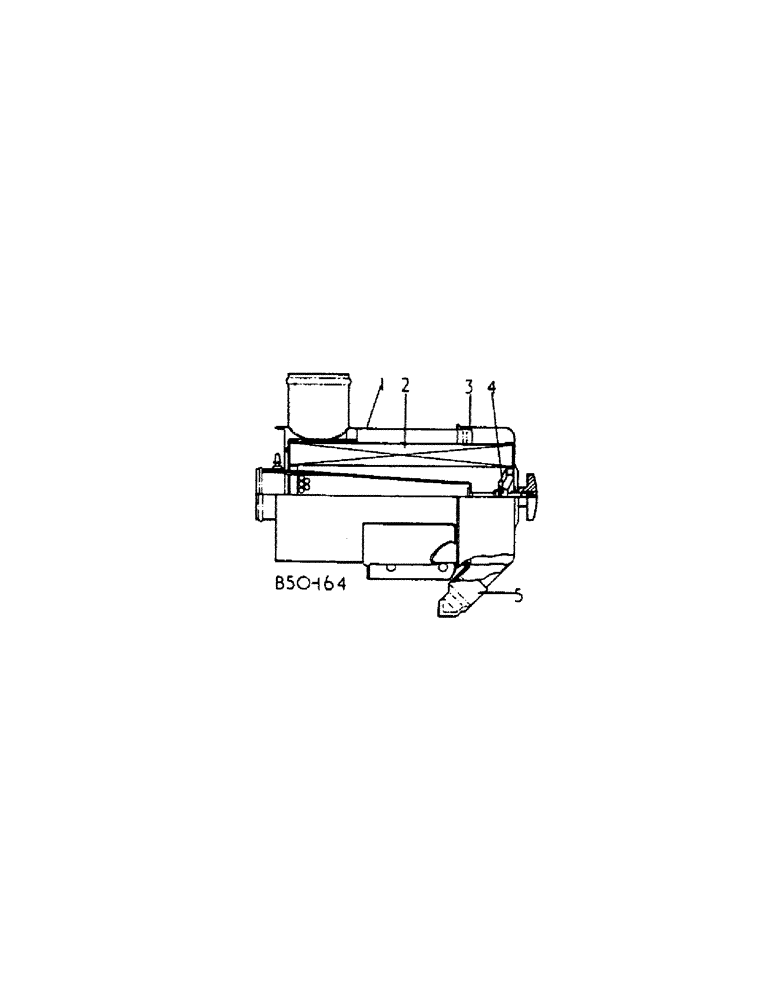

Схема запчастей Case IH 784 - (12-04[A]) - POWER, AIR CLEANER ASSEMBLY, COOPERS, SERIAL NO. 1503 AND ABOVE Power
2
4
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3125198R93

AIR CLEANER

CLEANER ASSY, air, order 1265217R91

1шт.

1

BODY ASSY

1шт.

2

3125199R2

AIR FILTER

ELEMENT ASSY, or

1шт.

Ref. 2 P/N 3125199R2 is Coopers AZA 361 - 12655510C1 is Donaldson P14-8732 or European P13-8338.

1шт.

3

3125200R2

COVER ASSY

ELEMENT ASSY

1шт.

1900091C1

GASKET

COVER ASSY

1шт.

4

3124435R1

NUT

NUT AND GASKET ASSY

1шт.

5

3124432R1

DUST VALVE

1шт.
