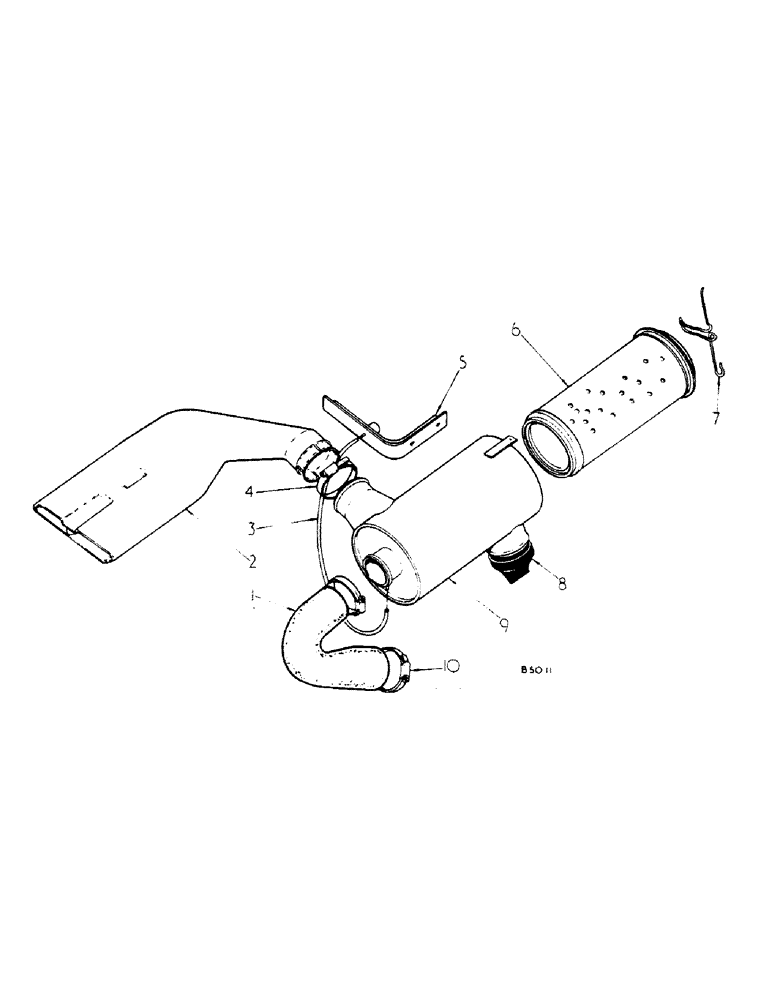

Запчасти Case IH 784 (12-01) - POWER, AIR CLEANER AND CONNECTIONS, SERIAL NO. 1502 AND BELOW Power

1

402622R1

INTAKE AIR HOSE,69.80 mm ID x 194.30 mm

- Air Cleaner Outlet 69.80 mm ID x 194.30 mm

1шт.

2

529864R1

DUCT

air inlet

1шт.

TUBE, air cleaner restriction ind, use 230mm, 9 inches, from bulk roll marked 990015C1

1шт.

4

21423R1

CLAMP

3-5/16 hose

1шт.

5

3121420R1

SUPPORT

BRACKET, air cleaner mounting

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

529854R1

ELEMENT

ASSY

1шт.

7

3118679R1

RETAINER

CLAMP, air cleaner

1шт.

8

529855R1

VALVE

dust unloader

1шт.

9

CLEANER ASSY, air, includes items 6, 7 and 8

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Furnish 3125198R92 3/8"

2шт.

10

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, no. 44 hose

2шт.
