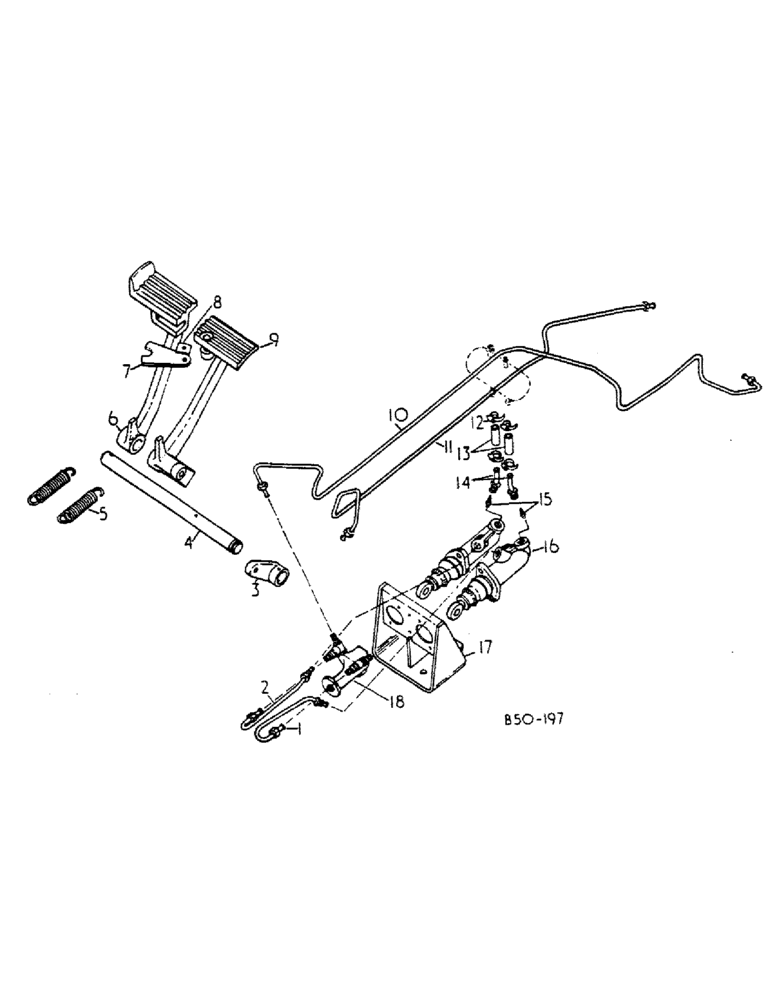

Запчасти Case IH 784 (04-03) - BRAKES, BRAKE CYLINDER AND CONNECTIONS, TRACTOR WITH SERIAL NO. 3108 AND ABOVE (5.1) - BRAKES

1

530851R2

TUBE

ASSY, equalizer LH

1шт.

2

530852R1

TUBE

ASSY, equalizer RH

1шт.

3

3125228R1

ARM

RH brake pedal, Serial Range: 3108-7266

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

2шт.

3

1500755C1

ARM

brake pedal RH, Start Serial: 7267

1шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

4

3125229R1

SHAFT

pedal support, Serial Range: 3108-7266

1шт.

4

1500753C1

SHAFT

pedal support, Start Serial: 7267

1шт.

5

3125230R1

SPRING

brake pedal return

2шт.

6

399741R4

PEDAL

RH brake, Serial Range: 3108-7266

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

6

1500752C1

PEDAL

RH brake, Start Serial: 7267

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

124551

SCREW

1/4 x 7/8 SAE A Woodruff

2шт.

399744R1

BOLT

BOLT, brake pedal adjusting

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 pln but/hd sol

1шт.

8

51293D

SPRING

brake pedal lock tension

1шт.

9

3125226R91

PEDAL ASSY.

PEDAL ASSY, LH brake, bushing used to mount pedal is 539834R1

1шт.

399744R1

BOLT

BOLT, brake pedal adjusting

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 hole 65D lub

1шт.

10

66093C1

BRAKE LINE

TUBE ASSY, brake LH, Z pattern shift

1шт.

10

3129260R1

TUBE ASSY.

TUBE ASSY, brake LH, H pattern shift

1шт.

11

66094C1

BRAKE LINE

TUBE ASSY, brake RH

1шт.

12

3125239R1

COLLAR

CLAMP, worm drive hose

4шт.

13

3125843R1

HOSE,7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

2шт.

14

3125836R1

TUBE ASSY.,23, 35 mm Length

TUBE ASSY, brake cylinder supply

2шт.

15

537849R2

SCREEN

AND ORIFICE ASSY, brake reservoir tube

2шт.

16

527542R92

CYLINDER

ASSY, master brake

2шт.

16

527542R92GV

BRAKE CYLINDER

Value, Brake, Master Cylinder Assy.

2шт.

Piece between Ref. 16, P/N 527542R92 and Ref. 17, P/N 3125224R1 is a cylinder, P/N 1287843C91, (P/N 527542R92) - Seal Kit for Brake Master 3125824R1

1шт.

71925C1

HOSE

master brake cyl retaining

1шт.

71926C1

BELLOWS

INSULATOR, brake cyl dust

1шт.

3125824R1

SEAL KIT

KIT, seal

1шт.

17

3125224R1

BRACKET

ASSY, brake cyl mounting

1шт.

Piece between Ref. 16, P/N 527542R92 and Ref. 17, P/N 3125224R1 is a cylinder, P/N 1287843C91.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

5/16-NF pln type 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

530374R92

VALVE

ASSY, brake equalizer

1шт.

530373R1

WASHER

equalizer valve

2шт.

9411128

TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run

adj str thrd 90 deg.

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

68434C93

PACKAGE

equalizer valve o-ring and seal service, consists of check balls, e-ring, o-rings, plug, seals and springs

1шт.
