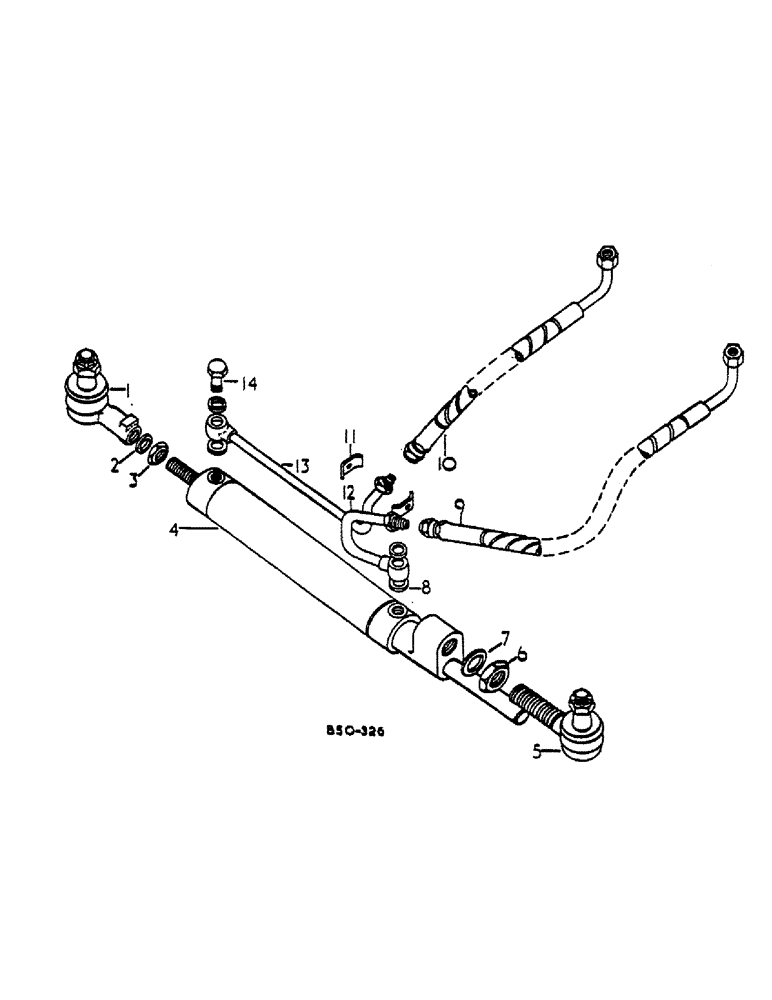

Запчасти Case IH 784 (10-26) - HYDRAULICS, POWER STEERING, ALL WHEEL DRIVE, ZF AXLE (07) - HYDRAULICS

1

3146035R92

BALL JOINT

JOINT, ball

1шт.

Used with cylinder 3146036R94

1шт.

1

742968C91

BALL JOINT

JOINT, ball

1шт.

Used with cylinder 742967C91 or 1282141C91

1шт.

2

934071R1

LOCK WASHER

WASHER, J21 ITT lock

1шт.

Used with cylinder 3146036R94

1шт.

2

934846R1

LOCK WASHER,Serr, M25

WASHER, J25 ITT lock

1шт.

Used with cylinder 742967C91 or 1282141C91

1шт.

3

933707R1

NUT,Thin, M20 x 1.5

M20 x 1.5 hex jam

1шт.

Used with cylinder 3146036R94

1шт.

3

934262R1

THIN NUT,Thin, M24 x 1.5

M24 x 1.5 hex jam

1шт.

Used with cylinder 742967C91 or 1282141C91

1шт.

4

742967C91

STEERING CYLINDER

CYLINDER ASSY, power steering, replaces 3146036R94

1шт.

For service on 3146036R94, also order Ref. no. 1, 2, and 3.

1шт.

742970C91

GASKET KIT

KIT, o-ring and seal service, or

1шт.

4

1282141C91

CYLINDER

ASSY, power steering

1шт.

1282147C1

PACKAGE

KIT, o-ring and seal service, see parts catalog cyl-1 for service parts

1шт.

5

3141529R91

BALL JOINT

JOINT, ball

1шт.

6

934070R1

THIN NUT,Thin, M30 x 1.5

M30 x 1.5 hex jam

1шт.

7

934072R1

LOCK WASHER,Serr, M31

WASHER, J21 internal tooth lock

1шт.

8

933155R1

SEALING RING,M16 x 20 x 1.5

Packing M16 x 20 x 1.5

4шт.

9

3129985R1

HOSE ASSY.

HOSE ASSY, steering cyl RH hyd

1шт.

10

3129984R1

HOSE ASSY.

HOSE ASSY, steering cyl LH hyd

1шт.

11

3129983R1

CLAMP

tube

2шт.

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

M6 x 25 class 8.8

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

30281R1

NUT,M6, Cl 10

M6 class 10

1шт.

12

3129982R1

TUBE ASSY.

TUBE ASSY, steering cyl RH

1шт.

13

3129981R1

TUBE ASSY.

TUBE ASSY, steering cly LH

1шт.

14

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

2шт.
