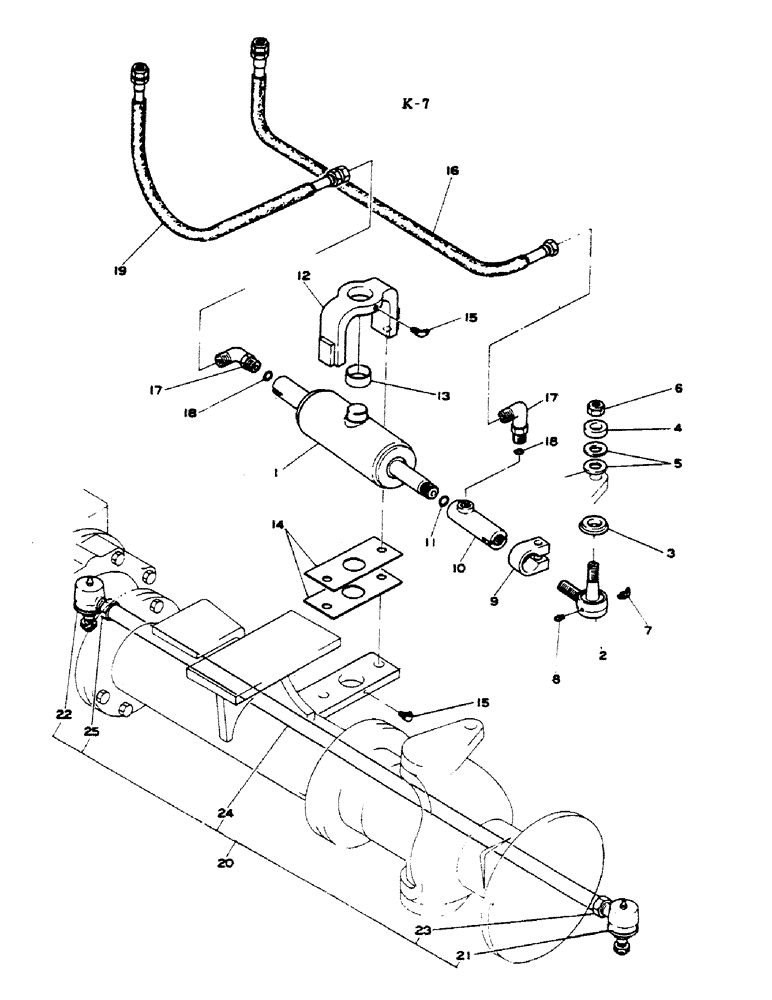

Запчасти Case IH 784 (10-24) - HYDRAULICS, POWER STEERING, ALL WHEEL DRIVE, KIMCO (07) - HYDRAULICS

1

984785C93

CYLINDER BLOCK

CYLINDER ASSY, steering, Kimco

1шт.

1004716C1

KIT

o-ring and seal service

1шт.

1

3125346R91

CYLINDER ASSY.

CYLINDER ASSY, steering

1шт.

55355C1

KIT, o-ring and seal service, see parts catalog cyl-1 for service parts

1шт.

2

1004723C1

BALL JOINT

BALL, socket

1шт.

3

984623C1

SEAL

dust

1шт.

4

189074H1

SOCKET

WASHER

1шт.

5

25538R1

WASHER

.812 x 1.500 x .134 PHC hdn

1шт.

6

144423H

LOCK NUT,5/8" - 18, GC

NUT, LOCK, 5/8"-18, GC

1шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, grease

1шт.

8

444687

PLUG,Hex Soc, 1/8"-27

Auto, Pipe Hex Soc, 1/8"-27

1шт.

9

890356H1

CLAMP

includes bolt and nut

1шт.

181436

BODY,Hex, 1/2" - 20 x 2 1/4", Gr 5

1/2-NF x 2-1/4 pln type 5

1шт.

23439R1

LOCK NUT,1/2"-20, GC

NUT, 1/2-NF CAD P/T lock type 8

1шт.

10

984671C1

ADAPTER

1шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

12

984673C2

ANCHOR

or

1шт.

12

3125337R91

BOLT

1/2 x 1-3/8 PHC type 8

2шт.

131101

LOCK WASHER

1/2"

2шт.

13

379748R1

BUSHING

2шт.

14

984875C1

SHIM

1.0mm

1шт.

14

984876C1

SHIM

0.5mm

1шт.

15

1005530C1

FITTING

grease

2шт.

16

984788C1

HOSE ASSY.

HOSE ASSY

1шт.

17

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

2шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

19

984789C1

HOSE ASSY.

HOSE ASSY

1шт.

20

984133C6

TIE-ROD

ROD ASSY, tie

1шт.

21

984716C2

END

tie rod LH

1шт.

125258

SLOTTED NUT,9/16"-18, G5

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

984749C1

SEAL

dust

1шт.

974749C1

FITTING

grease

1шт.

22

984134C4

END

tie rod RH

1шт.

125258

SLOTTED NUT,9/16"-18, G5

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

984749C1

SEAL

dust

1шт.

974749C1

FITTING

grease

1шт.

23

984278R1

NUT, LH, or

1шт.

23

890356H1

CLAMP

1шт.

80289R1

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 8

1/2-NF x 2-1/2 PHC type 8

1шт.

23439R1

LOCK NUT,1/2"-20, GC

NUT, 1/2-NF CAD P/T lock type 8

1шт.

24

984226C4

TUBE

tie rod

1шт.

25

530061R1

BOLT (SPREADER)

NUT, RH, or

1шт.

25

890356H1

CLAMP

1шт.

80289R1

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 8

1/2-NF x 2-1/2 PHC type 8

1шт.

23439R1

LOCK NUT,1/2"-20, GC

NUT, 1/2-NF CAD P/T lock type 8

1шт.
