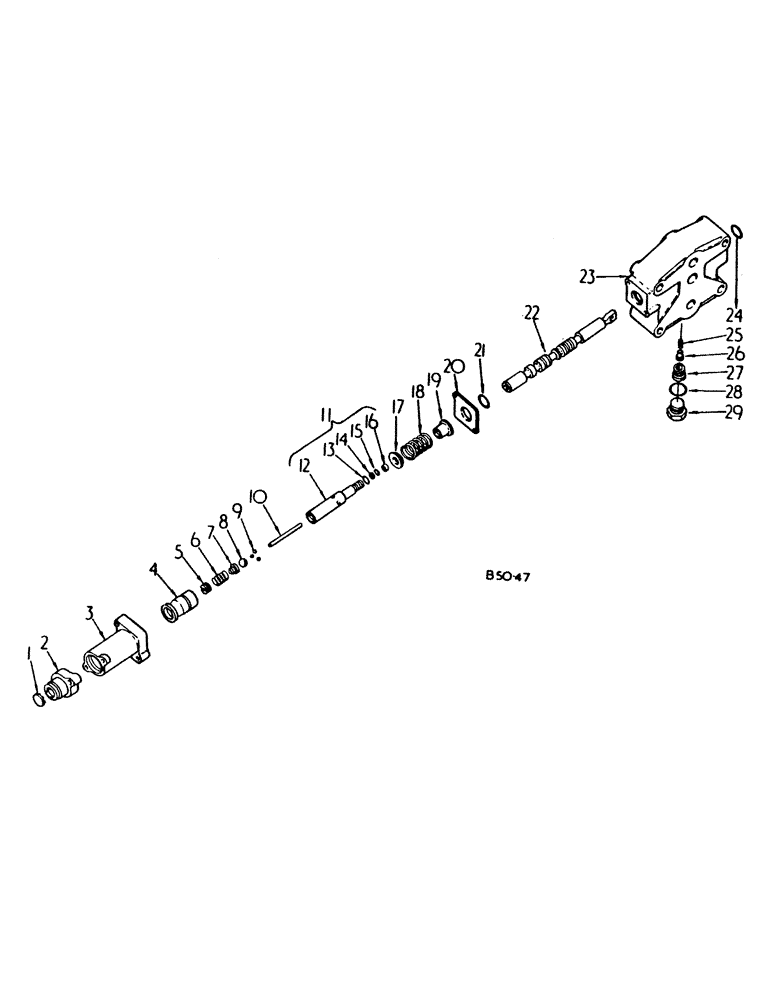

Запчасти Case IH 784 (10-22) - HYDRAULICS, SINGLE AUXILIARY HYDRAULIC VALVE (07) - HYDRAULICS

62464C94

VALVE

hyd open center control

1шт.

1

432539

HOLE PLUG BUTTON,7/16"

PLUG, 7/16 stl button

1шт.

2

62482C1

CAP

retaining

1шт.

26629R1

12 PT SCREW,Flg, 1/4" - 20 x 1"

SCREW, 1/4 x 1.000 PHC type 8 12 PT flg

2шт.

3

62478C1

HOUSING

sleeve

1шт.

26629R1

12 PT SCREW,Flg, 1/4" - 20 x 1"

SCREW, 1/4 x 1.000 PHC type 8 12 PT flg

2шт.

5

377803R1

PLUG

spring retaining

1шт.

6

114032C1

SPRING

detent

1шт.

7

62480C1

WASHER

detent actuating ball

1шт.

8

16013R1

BALL

13/32 cr-stl detent actuating

1шт.

9

16007R1

BALL

7/32 cr-stl detent

3шт.

10

529905R1

PISTON

unlatching

1шт.

11

62474C91

BODY

actuator assy, consists items 12-16 incl.

1шт.

12

BODY, not serviced separately

1шт.

13

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube

1шт.

14

529903R1

WASHER

back up

1шт.

15

21587R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

1/8 x 1/4 x 1/16

1шт.

16

529904R1

RETAINER

o-ring

1шт.

17

62473C2

RETAINER

centering spring

1шт.

18

62472C1

SPRING

centering

1шт.

19

62471C1

SPRING CUP

CUP, centering spring

1шт.

20

1252320C1

RETAINER

o-ring, replaces 62469C1

1шт.

1263497C1

WASHER,16.02mm ID x 20.32mm OD x 0.51mm Thk

RING, retaining

1шт.

21

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32 valve spool

1шт.

22

SPOOL, valve, not serviced separately

1шт.

23

BODY, valve, not serviced separately

1шт.

24

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

25

62470C1

SPRING

check valve

1шт.

26

108867C1

VALVE POPPET

VALVE, reverse flow check poppet

1шт.

27

108868C1

SEAT

reverse flow check valve

1шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

29

9410359

PLUG

1/2 OD tube

1шт.
