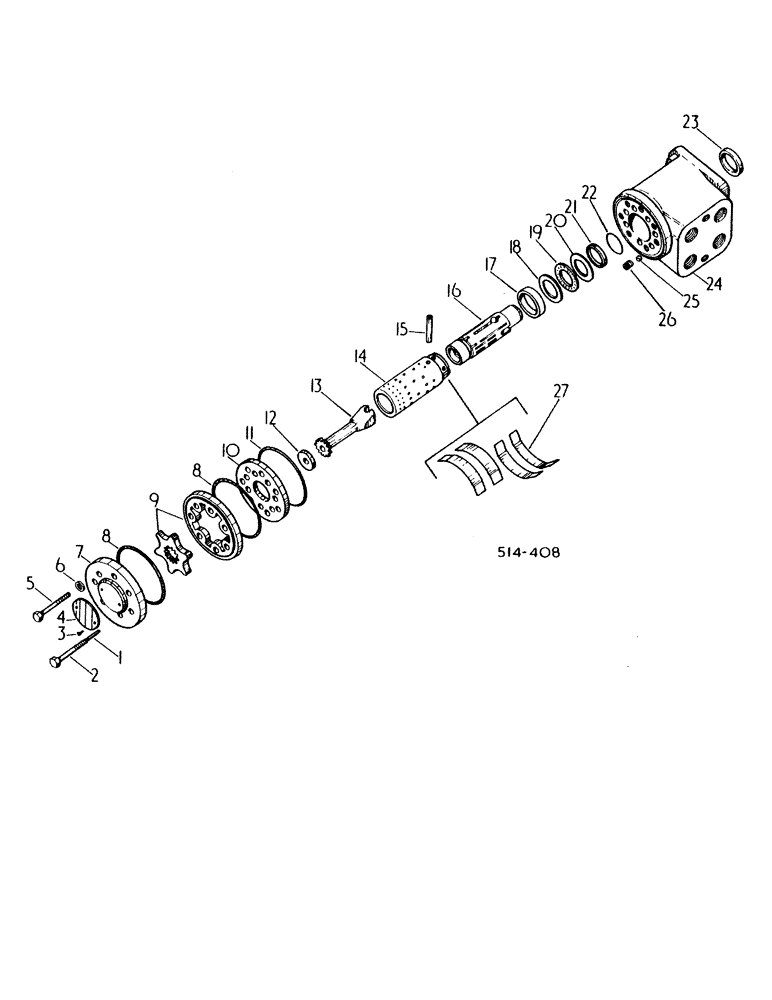

Запчасти Case IH 784 (10-20) - HYDRAULICS, INTEGRAL HYDROSTATIC POWER STEERING VALVE (07) - HYDRAULICS

67698C93

VALVE

ASSY, integral power steering

1шт.

1

3112271R1

PIN, ROLL

ed

1шт.

2

SCREW

1шт.

3

217910

SCREW

2шт.

4

PLATE, rating

1шт.

5

3146908R1

BOLT,M8 x 1 x 35mm

SCREW, plain

6шт.

5

3146907R1

BOLT,M8 x 1 x 35mm, Drilled

SCREW, driller

1шт.

6

WASHER

7шт.

Order package 1500443C91

1шт.

7

1500444C4

CAP, end

1шт.

8

O-RING

2шт.

Order package 1500443C91

1шт.

9

538918R1

ROTOR ASSY.

SET, rotor, consists of items 12 and 13

1шт.

10

3112276R1

PLATE

valve

1шт.

11

O-RING

1шт.

Order package 1500443C91

1шт.

12

538916R1

SPACER

1шт.

13

538915R1

DRIVE SHAFT

DRIVE

1шт.

14

SLEEVE

1шт.

Order package 1500443C91

1шт.

15

3112269R1

PIN

cross

1шт.

16

SLEEVE

1шт.

17

3112264R1

RING

1шт.

18

RACE, bearing, order bearing assy 3234338R91

1шт.

19

BEARING, needle, order bearing assy 3234338R91

1шт.

20

WASHER, axial, order bearing assy 3234338R91

1шт.

21

RING, pin

1шт.

Order package 1500443C91

1шт.

22

O-RING

1шт.

Order package 1500443C91

1шт.

23

RING, seal

1шт.

Order package 1500443C91

1шт.

24

HOUSING, consists of items 14 and 16

1шт.

25

3112270R1

BALL

steel

1шт.

26

3112272R1

BUSHING

threaded

1шт.

27

SPRING, leaf, see note

4шт.

3234338R91

BEARING SET

ASSY, consists of ref no. 18, 19 and 20

1шт.

1500443C91

SEAL KIT

PACKAGE, seal and spring service, consists of ref no. 6, 8, 11, 14, 21, 22, 23 and 27

1шт.
