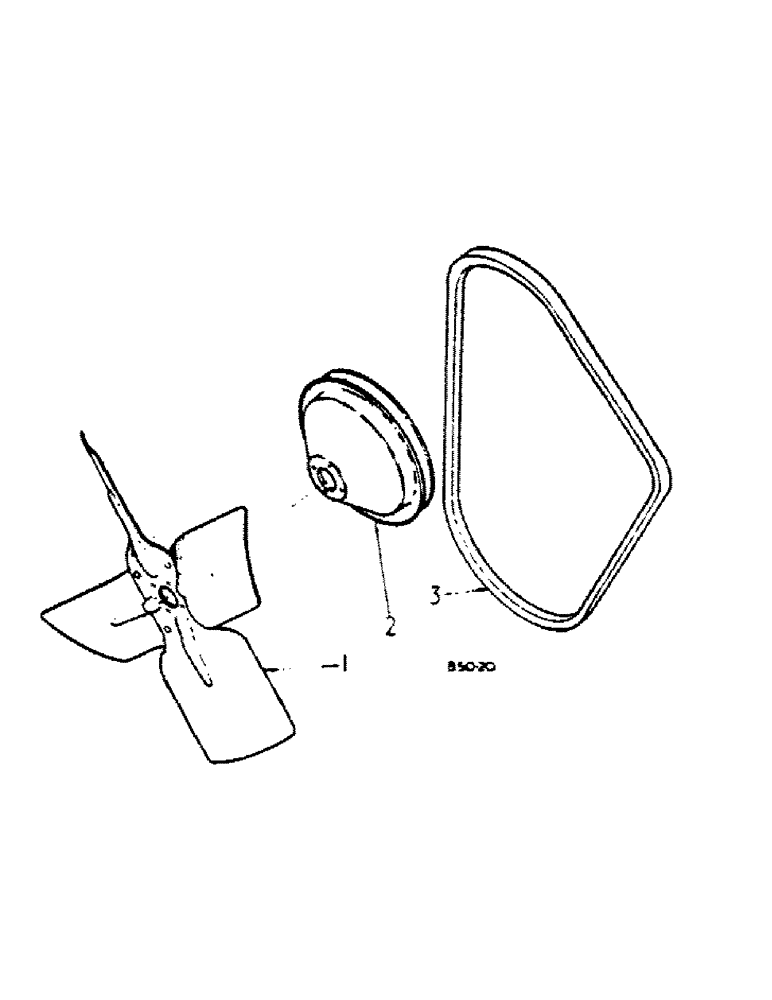

Запчасти Case IH 784 (06-04) - COOLING, FAN Cooling

1

1275810C1

FAN

BLADE ASSY, fan, 5 blade, Replaces: 4 blade fan

1шт.

1

527473R1

FAN

BLADE ASSY, fan, 6 blade, tractors with 17 GPM internal pump, Start Serial: 9413

1шт.

181312

BOLT,Hex, 1/4" - 28 x 11/16", Gr 5

1/4NF x 11/16 pln type 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

401124R1

PULLEY

water pump

1шт.

3

3129140R1

V-BELT,13.70 mm W

Pulley, Replaces P/N 527470R1 13.70 mm W

1шт.
