(10-02) - HYDRAULICS, STEERING WHEEL

Запчасти Case IH 784 (10-02) - HYDRAULICS, STEERING WHEEL (07) - HYDRAULICS

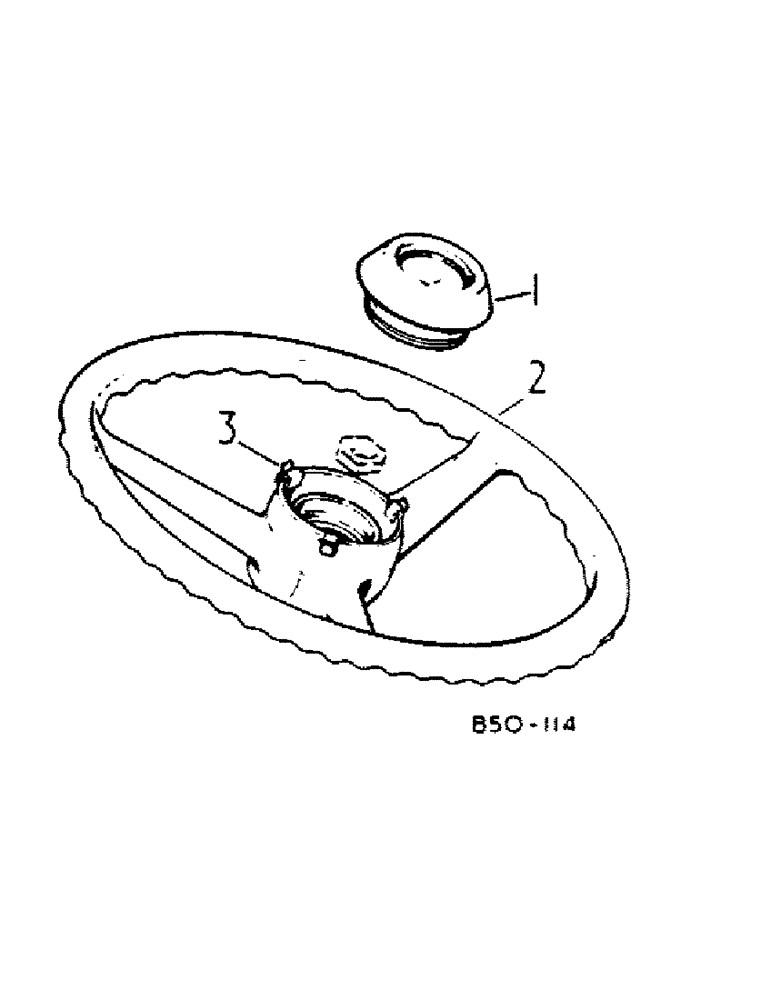

Схема запчастей Case IH 784 - (10-02) - HYDRAULICS, STEERING WHEEL (07) - HYDRAULICS
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

68837C1

CAP

steering wheel

1шт.

2

3123302R91

HANDWHEEL

WHEEL, .408mm dia steering, low dish, low profile tractors

1шт.

2

385156R1

WHEEL (STEERING)

WHEEL, .408mm dia. steering

1шт.

2

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

3

3123598R1

CLIP,ELECTRICAL

CLIP, retaining

3шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.
