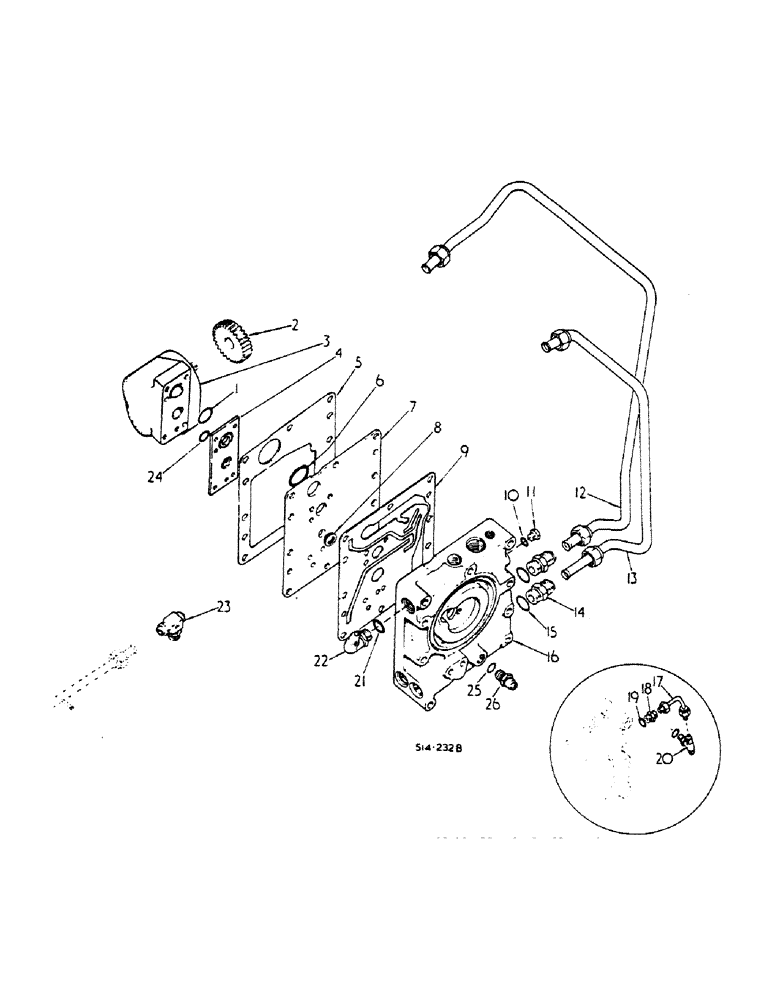

Запчасти Case IH 784 (10-01) - HYDRAULICS, HYDRAULIC POWER SUPPLY AND MULTIPLE CONTROL VALVE (07) - HYDRAULICS

1

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 x 1-1/4 x 3/32, pump section port

1шт.

2

59369C1

GEAR

hyd pump driven, 23T, 15 GPM pump

1шт.

2

406764R1

PINION

GEAR, hyd pump driven, 27T, 12 GPM pump

1шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-NF P/T lock type 5

1шт.

2

110523C1

GEAR

hydraulic pump driven, 23T, 17 GPM pump

1шт.

18536R1

LOCK NUT,5/8"-18, G5

NUT, 5/8-NF P/T lock type 5

1шт.

3

66513C92

PUMP, HYDRAULIC

PUMP ASSY, hyd gear, 12 GPM, Cessna 200900 lak, replaces 67248C91, 128180C91

1шт.

373244R91

SEAL

SEAL, pump shaft oil

1шт.

371523R1

SPRING

ball check

1шт.

16007R1

BALL

7/32

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

3

406763R92

HYDRAULIC PUMP

PUMP ASSY, hyd gear, 12 GPM, Plessey

1шт.

3

84573150R

REMAN-HYD PUMP

784 INTERNATIONAL DIESEL TRACTOR (NORTH AMERICA), PUMP ASSY, hyd gear, 12 GPM, Plessey (1/79-12/81), Reman for New PN 406763R92

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

pump mounting bolt

4шт.

3

66513C92

PUMP, HYDRAULIC

PUMP ASSY, hyd gear, 15 GPM, Plessey, for tractors with IPTO

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

1шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

pump mounting bolt

4шт.

3

110509C91

PUMP

ASSY, hyd gear, 17 GPM, Cessna

1шт.

3

84573150R

REMAN-HYD PUMP

784 INTERNATIONAL DIESEL TRACTOR (NORTH AMERICA), ASSY, hyd gear, 17 GPM, Cessna (1/79-12/81), Reman for New PN 110509C91

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

pump mounting bolt

4шт.

4

59370C1

LARGE PLATE

PLATE, pump mounting, 15 GPM pump

1шт.

5

401736R3

GASKET

multiple control valve hv

1шт.

6

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 x 1-3/4 x 1/8 inlet port

1шт.

7

405458R2

LARGE PLATE

PLATE, multiple control valve

1шт.

8

387926R2

RING

rectangular

1шт.

9

65000C3

GASKET

multiple control valve body

1шт.

10

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

11

9410356

PLUG

7/16-20 str thd o-ring boss

1шт.

12

66761C1

TUBE ASSY.

TUBE ASSY, draft control return

1шт.

13

66764C1

PIPE

TUBE ASSY, multiple control valve, by-pass

1шт.

Ref.13 For Hydro Machines Use P/N 2725954R1. Non Hydro machines use P/N 2725960R1 European machines P/N 66760C1.

1шт.

14

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short swivel

2шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

16

57714C95

VALVE

ASSY, multiple control, for components see heading, multiple control valve

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

9шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 pln type 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

17

539835R1

TUBE ASSY.

TUBE ASSY, IPTO pressure, tractor w/IPTO

1шт.

18

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

UNION, 7/16-20 C-Z 37 deg hyd flared, tube short swivel, tractors w/IPTO

1шт.

19

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Tractors with IPTO

2шт.

20

9411115

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

7/16-20 C-Z 37 deg hyd flared tube, includes ca[

1шт.

9403369

CAP,37 Degree, 7/16"-20

7/16-20 C-Z 37 deg hyd flared, tube, tractors w/IPTO

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

22

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 C-Z deg hyd flared, tube adj str thd 90 deg

1шт.

23

534773R3

ELBOW

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

24

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 x 7/8 x 3/32, pump pressure port

1шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

26

57577C1

CHECK VALVE

VALVE, check

1шт.

73234C91

PACKAGE,SERVICE

KIT, o-ring an gasket, for pump 128180C91

1шт.

67249C91

SEAL KIT

KIT, o-ring and gasket, for pump 67248C91

1шт.

1502030C1

SEAL KIT

PACKAGE, seal kit, replaces 534262R91, for pump 66513C92 and 406763R92

1шт.

70230C1

SEAL KIT

KIT, seal pack, for pump 66513C92

1шт.

69355C1

SEAL

hydraulic pump, used w/pump 66513C92

1шт.

69354C1

SEAL

hydraulic pump, used w/pump 67248C91 and 110509C91

1шт.

69352C1

SEAL

hydraulic pump, used w/pump 406763R92

1шт.

3123364R1

SEAL

hydraulic pump, used w/pump 128180C91

1шт.

69351C1

GLUE

ADHESIVE, 1 oz tube

1шт.

537517R1

WASHER

pump identification

1шт.
