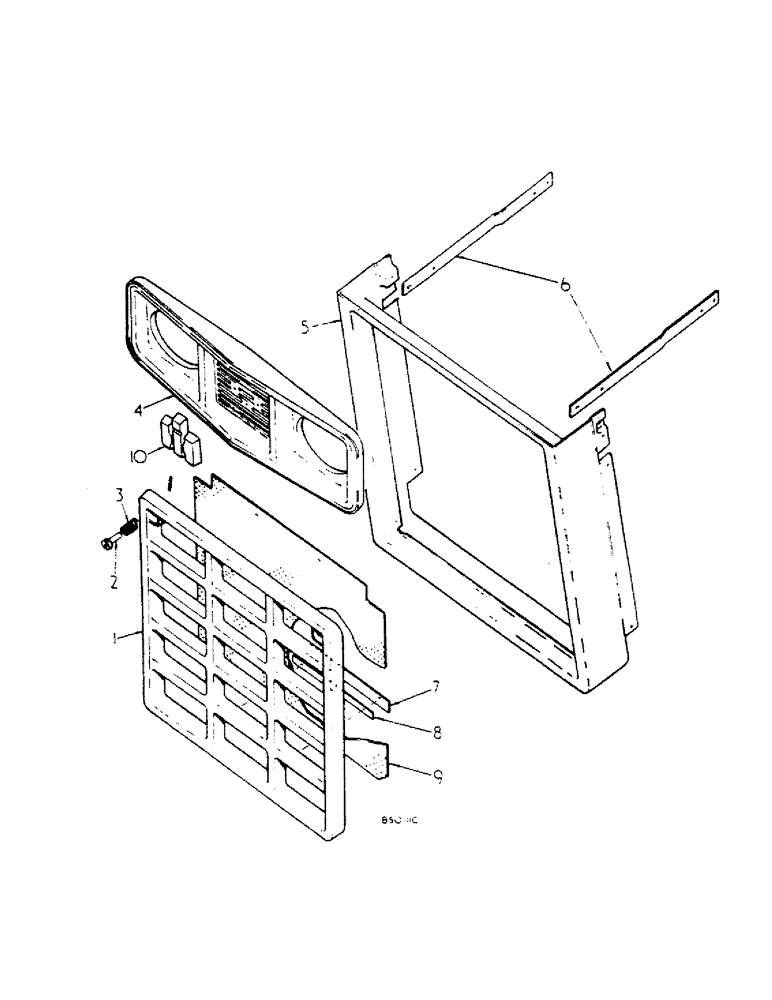

Запчасти Case IH 784 (06-03) - COOLING, RADIATOR GRILLE Cooling

1

3121678R1

GRILLE

radiator, 460mm x 545mm, used w/lower grille housing 3121233R1

1шт.

1

3121672R1

GRILLE

radiator, 400mm x 440mm, used w/lower grille housing 3121231R1

1шт.

2

3113470R1

PIN

LATCH, grille, includes pins and washers

2шт.

26052R1

PIN,3/16" x 1 1/2", Coiled

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

3

532180R1

SPRING

grille latch

2шт.

4

3121675R1

GRILLE ASSY

upper

1шт.

107377H

LOCK NUT,#10-32, GB

NUT, LOCK, #10-32, GB

8шт.

120391

WASHER,#10

.219 x .500 x .036

8шт.

5

3121233R1

HOUSING

lower grille, tractors with cast bolster with 3 side mtg holes

1шт.

5

3121231R1

HOUSING

lower grille, tractors with cast bolster with 4 side mtg holes, tractors w/fabricated bolster

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Tractors w/cast bolster Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

120396

WASHER

.531 x 1.062 x .074, tractors w/cast bolster

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5, tractors w/ fabricated bolster

2шт.

20803R1

WASHER

.406 x 1.000 x .105, tractors w/ fabricated bolster

2шт.

6

3121234R1

SUPPORT

BAR, grille tie, used w/lower grille housing 3121233R1

1шт.

6

3121232R1

SUPPORT

BAR, grille tie, used w/lower grille housing 3121231R1

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

109084

NUT,1/4"-20, G5

2шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

2шт.

7

3121653R1

BRACKET

grille retaining

1шт.

8

3121654R1

BAR

grille retaining

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

#10NF x 1/2 znp P/HDS mach

2шт.

23505R1

WASHER

.281 x .625 x .054

2шт.

9

3121679R1

SIEVE

SCREEN, grille, used w/lower grille housing 3121233R1

1шт.

9

3121673R1

SCREEN

grille, used w/lower grille housing 3121231R1

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

SCREW, 10-24 x 1/2 hex washer hd tap, or

4шт.

9

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 x 1/2 hex, random sltd

4шт.

10

120397C1

EMBLEM CASE/IH

PRODUCT-GRAPHIC, IH grille

1шт.

163216

SHIELD

no. 10-16 x 1/2 P/HDCR tap

4шт.
