Запчасти Case IH 784 (08-06) - ELECTRICAL, CRANKING MOTOR, BOSCH (06) - ELECTRICAL

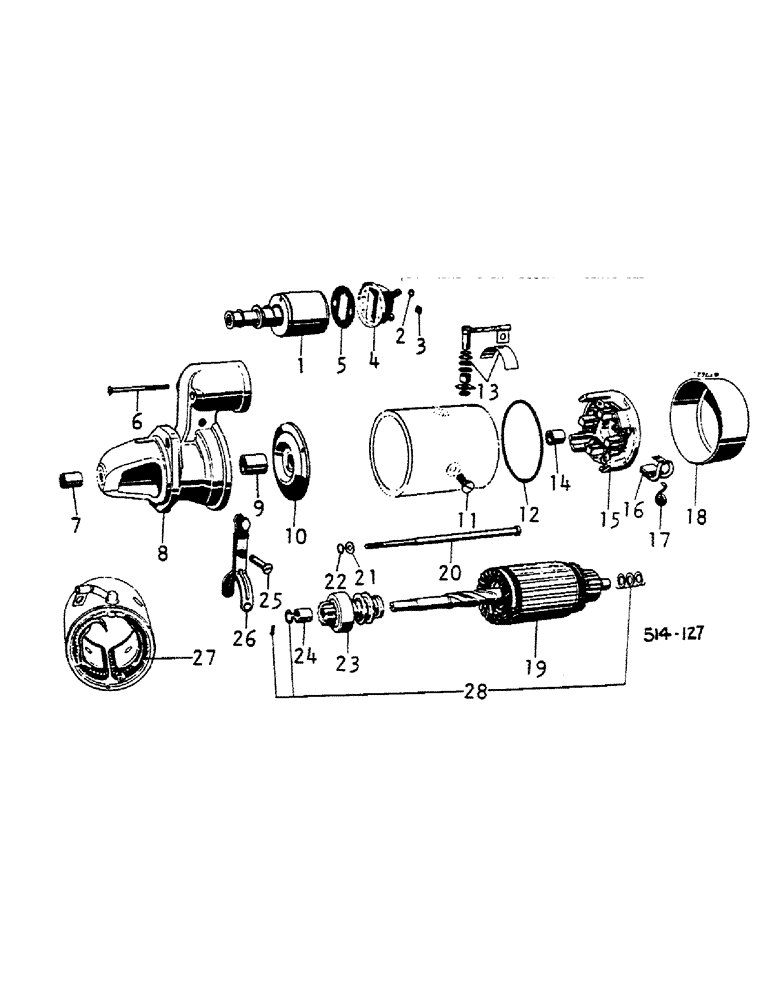

Схема запчастей Case IH 784 - (08-06) - ELECTRICAL, CRANKING MOTOR, BOSCH (06) - ELECTRICAL
3
13
6
24
1
7
18
21
27
23
20
10
26
9
4
2
8
25
14
15
11
16
5
22
17
28
12
19

Артикул

Название

Примечание

Количество

529965R93

STARTING MOTOR

STARTER MOTOR, Bosch 4PS, Bosch no. 00-001-362-310 replaces no. 00-001-359-045-R91 and 00-001-367-042-R92

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

537143R1

TERMINAL CONNECTOR,Male

TERMINAL, Male

1шт.

1

3113013R91

RELAY

SWITCH, solenoid

1шт.

Used with 529965R91

1шт.

1

3078963R1

SOLENOID SWITCH

SWITCH, solenoid

1шт.

Used with 529965R92 and R93

1шт.

2

WASHER, relay cover

2шт.

3

3132763R1

TERMINAL CONNECTOR

PLATE, relay cover

4шт.

4

COVER, relay

1шт.

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

relay cover

1шт.

100016

NUT,M10 x 1.5, Cl 8

Relay Cover M10, Cl 8

2шт.

934075R1

LOCK WASHER,M10

Relay cover M10

2шт.

5

RING, packing relay cover

1шт.

6

931100R1

SCREW,M6 x 50mm, Cl 4.8

switch

2шт.

Used with 529965R91

1шт.

6

3078974R1

SCREW

switch

3шт.

Used with 529965R92 and R93

1шт.

7

3113008R1

BUSHING

bearing

1шт.

Used with 529965R91

1шт.

7

3055738R1

BUSHING

bearing

1шт.

Used with 529965R92 and R93

1шт.

8

3113007R91

DRIVE ASSY.

DRIVE ASSY, end

1шт.

Used with 529965R91

1шт.

8

3129633R1

HOUSING

DRIVE ASSY, end

1шт.

Used with 529965R92 and R93

1шт.

9

3132441R1

BUSHING

bearing

1шт.

Used with 529965R91

1шт.

9

3078967R1

BUSHING

bearing

1шт.

Used with 529965R92 and R93

1шт.

10

3132440R1

SUPPORT

BEARING, intermediate

1шт.

Used with 529965R91

1шт.

10

3079253R1

BALL BEARING

intermediate

1шт.

Used with 529965R92 and R93

1шт.

11

3078334R1

SCREW

retainer

4шт.

Used with 529965R91

1шт.

11

3129639R1

SCREW

retainer

4шт.

Used with 529965R92 and R93

1шт.

12

3132450R1

O-RING

RING, packing commutator end

1шт.

Used with 529965R91

1шт.

13

3132464R91

TERMINAL CONNECTOR

SET, terminal parts

1шт.

Used with 529965R91

1шт.

13

3079173R91

KIT

SET, terminal parts

1шт.

Used with 529965R92 and R93

1шт.

14

3132446R1

BUSHING

commutator end

1шт.

Used with 529965R91

1шт.

14

3079170R1

BUSHING

commutator end

1шт.

Used with 529965R92 and R93

1шт.

15

3113011R91

FRAME ASSY

commutator end

1шт.

Used with 529965R91

1шт.

15

3129632R91

END ASSY.

FRAME ASSY, commutator end

1шт.

Used with 529965R92 and R93

1шт.

16

3078754R91

COMMUTATOR BRUSH

SET, brush

1шт.

Used with 529965R91

1шт.

16

3079359R91

BRUSH, COMMUTATOR

SET, brush

1шт.

Used with 529965R92 and R93

1шт.

3079174R1

HOLDER

brush

1шт.

17

3132448R1

VALVE SPRING

SPRING, brush

2шт.

Used with 529965R91

1шт.

17

3079420R1

SPRING

brush

4шт.

Used with 529965R92 and R93

1шт.

18

3132449R1

COVER

end

1шт.

Used with 529965R91

1шт.

18

3079177R1

CAP

COVER, end

1шт.

Used with 529965R92 and R93

1шт.

3079426R1

SCREW

2шт.

19

3132444R1

X

ARMATURE

1шт.

Used with 529965R91

1шт.

19

3079252R1

ARMATURE

1шт.

Used with 529965R92 and R93

1шт.

20

3132759R1

BOLT

PIN, threaded housing

2шт.

Used with 529965R91

1шт.

933987R1

LOCK WASHER,M6

WASHER, lock

2шт.

20

3079172R1

STUD

thru

2шт.

Used with 529965R92 and R93

1шт.

3079176R1

WASHER

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

21

3113009R1

WASHER

1шт.

Used with 529965R91

1шт.

22

3132760R1

BUSHING

RING, packing

1шт.

Used with 529965R91

1шт.

23

3078980R91

DRIVE

ASSY

1шт.

Used with 529965R91

1шт.

23

3129631R1

DRIVE ASSY.

DRIVE ASSY

1шт.

Used with 529965R92 and R93

1шт.

24

3132443R1

BUSHING

1шт.

Used with 529965R91

1шт.

24

3079254R1

BUSHING

1шт.

Used with 529965R92 and R93

1шт.

25

3132758R1

SCREW

1шт.

Used with 529965R91

1шт.

25

3079251R1

BOLT

lever

1шт.

Used with 529965R92 and R93

1шт.

26

3132432R1

LEVER

engaging

1шт.

Used with 529965R91

1шт.

26

3078965R1

LEVER

engaging

1шт.

Used with 529965R92 and R93

1шт.

933983R1

LOCK WASHER,M6

WASHER, lock

1шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

27

3078072R91

KIT

COIL, field

1шт.

Used with 529965R91

1шт.

27

3079356R1

COIL

field, see note B

1шт.

Used with 529965R92 and R93

1шт.

28

3132465R91

PACKAGE

SET, armature parts

1шт.

Used with 529965R91

1шт.

1273635C1

COVER, solenoid

1шт.
