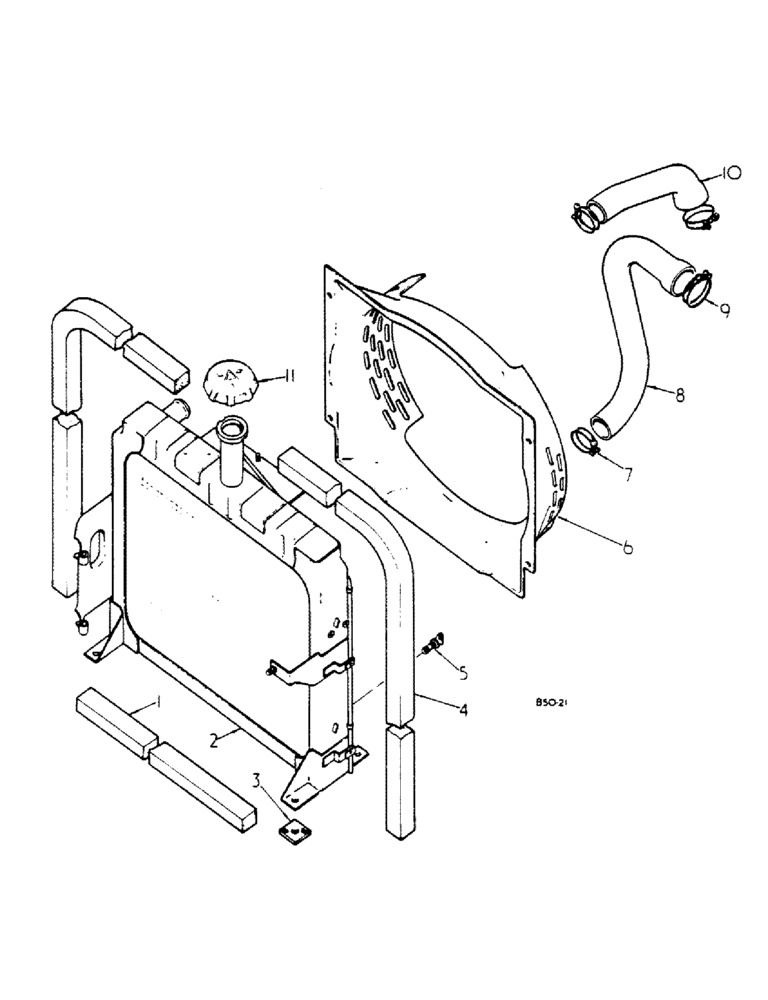

Запчасти Case IH 784 (06-02) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

537162R1

FILLING STRIP

GASKET, lower radiator

1шт.

2

3121414R92

RADIATOR

ASSY.

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1 pln type 5

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

142745

NUT, WING

NUT, 5/16 wing

1шт.

496-21047

WASHER

.469 x .922 x .051 pln

4шт.

3

47240D

PAD

radiator

4шт.

4

73217C1

FILLING STRIP

GASKET, radiator baffle, bulk length 48.0 in.

2шт.

5

3113083R1

PLUG, DRAIN

1шт.

6

527475R2

HOUSING

SHROUD, fan

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

4шт.

7

39149H

HOSE CLAMP

CLAMP, hose

2шт.

8

402205R1

LARGE HOSE,50.80 mm ID x 213.90 mm, SAE 100R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A OR SAE 20R4 CLASS D1, Outlet 50.80 mm ID x 213.90 mm, SAE 100R2

1шт.

8

402205R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

9

39205H

CLAMP

hose, or

2шт.

9

706082R91

CLAMP

hose

2шт.

10

402207R1

LARGE HOSE,50.80 mm ID x 179.83 mm, SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Inlet 50.80 mm ID x 179.83 mm, SAE 20R2

1шт.

10

402207R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

11

532029R1

CAP ASSY.

CAP ASSY, radiator

1шт.

11

1500626C91

PLUG

CAP AND COVER ASSY, radiator

1шт.
