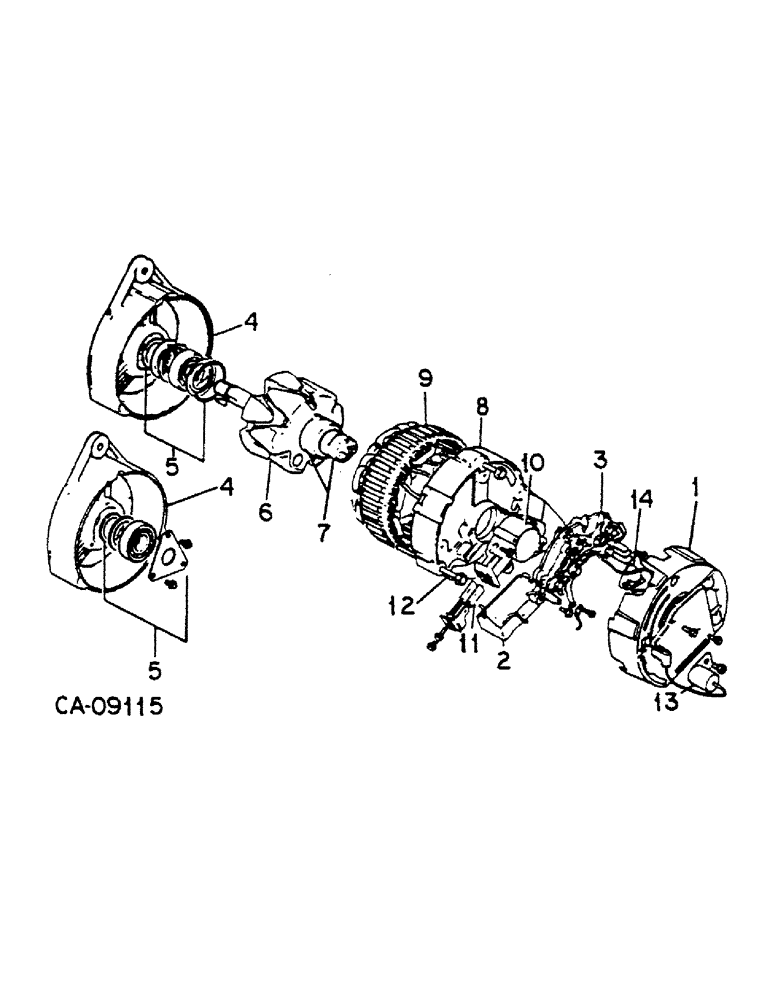

Запчасти Case IH 784 (08-04) - ELECTRICAL, ALTERNATOR, LUCAS MODEL A133-75 (06) - ELECTRICAL

84028C91

ALTERNATOR

75 amp, less fan, Lucas no. 24176

1шт.

1

84105C1

COVER

1шт.

2

84106C1

REGULATOR

1шт.

3

245537C1

RECTIFIER

1шт.

4

84107C1

BRACKET

drive end

1шт.

5

84108C1

PACKAGE

KIT, drive end bearing

1шт.

6

84109C1

ROTOR

ASSY

1шт.

7

245541C1

WHEEL BEARING KIT

KIT, slip ring and bearing

1шт.

245542C1

RING

slip

2шт.

8

84110C1

BRACKET

slip ring end

1шт.

9

84111C1

STATOR

1шт.

10

245545C1

BRUSH HOLDER

BOX, brush

1шт.

11

84112C1

BRUSH SET

SET, brush

1шт.

12

3122941R1

BOLT

fixing

3шт.

13

84115C1

ARMATURE

CAPACITOR, suppression

1шт.

14

(Not used)

1шт.

84051C1

FAN

1шт.

84150C1

SPACER

WASHER, fan

3шт.

245548C1

PACKAGE

KIT, misc. parts

1шт.

84113C1

PACKAGE

KIT, terminal

1шт.

P/N 84113c1 terminal kit that repairs the armature of the lucas alternator, P/N245548c1 is a kit of various parts that repairs the rectifier of this lucas alternator.

1шт.

245549C1

PACKAGE

KIT, screw

1шт.

84114C1

PACKAGE

KIT, spacer

1шт.
