Запчасти Case IH 784 (13-17) - SUPERSTRUCTURE, PLATFORMS AND SUPPORTS (05) - SUPERSTRUCTURE

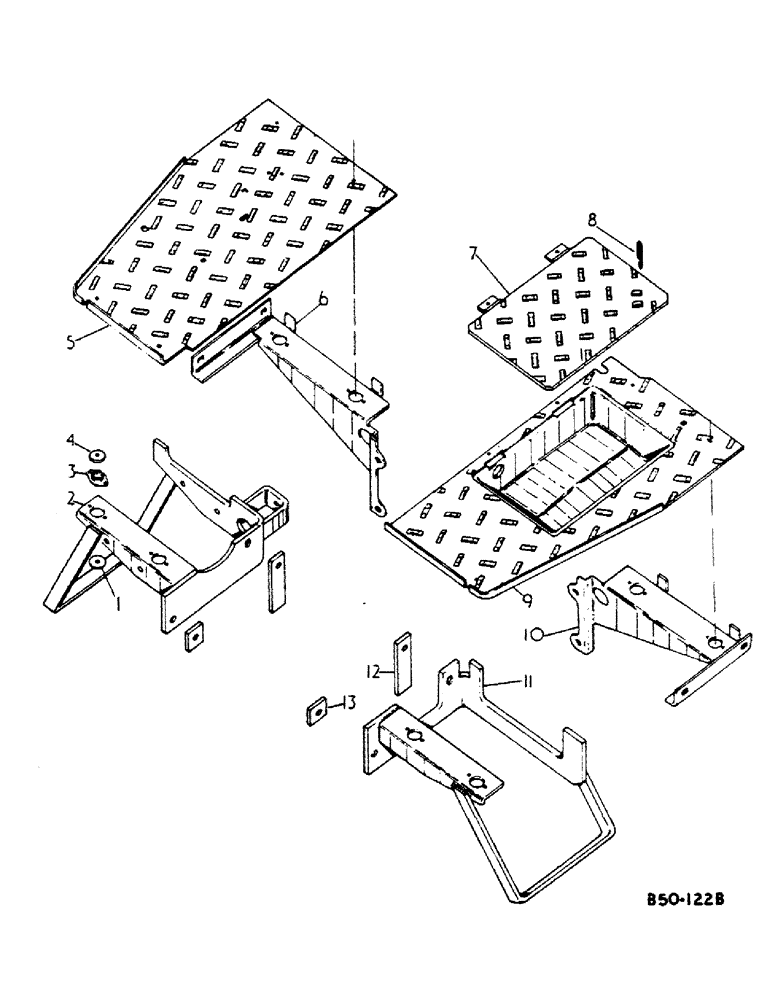

Схема запчастей Case IH 784 - (13-17) - SUPERSTRUCTURE, PLATFORMS AND SUPPORTS (05) - SUPERSTRUCTURE
5
1
11
3
7
12
9
2
4
8
13
10
6

Артикул

Название

Примечание

Количество

1

3123710R1

WASHER

snubbing

8шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

8шт.

120622

NUT,#8-32

8шт.

2

1265128C1

SUPPORT

ASSY, platform RH

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

3123709R1

SHOCK ABSORBER

ABSORBER

8шт.

159287

SCREW,Cross Pan Hd, #6 - 32 x 3/8"

no. 6 x 3/8 PHC P/HDCR mach

16шт.

492-11006

LOCK WASHER,#6

Lock, #6

16шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

16шт.

4

3123710R1

WASHER

snubbing

8шт.

159675

SCREW,Cross Pan Hd, #8 - 32 x 1"

8 x 1 znp P/HD CR mach

8шт.

NLS

NO LONGER SERVICED

.188 x .438 x .036

8шт.

5

3123690R1

PLATFORM

ASSY, RH

1шт.

6

3123703R1

SUPPORT

ASSY, platform rear RH

1шт.

6

3125194R1

SUPPORT

ASSY, platform rear RH, all wheel drive w/Kimco axle

1шт.

6

1500041C2

SUPPORT

ASSY, platform rear RH, all wheel drive w/ZF axle

1шт.

324257R1

BOLT, 1/2-13 x 1-3/4 hex-hd, support to clutch housing

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln), Support to fenders 3/8"

2шт.

7

538421R1

COVER ASSY

tool box

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp P/HDS mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

8

528917R1

RING

finger pull

1шт.

9

3123689R1

PLATFORM

ASSY, LH

1шт.

10

3123702R1

SUPPORT

ASSY, platform rear LH

2шт.

324257R1

BOLT, 1/2-13 x 1-3/4 hex hd

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln), Support to fenders 3/8"

2шт.

11

3123694R3

SUPPORT

ASSY, platform LH

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

(Not used this application)

1шт.

13

(Not used this application)

1шт.

Выбрано товаров: 43
