Запчасти Case IH 784 (13-12) - SUPERSTRUCTURE, SEAT, WITH BEFORE AND AFTER AND HEIGHT ADJUSTMENT, BOSTROM (05) - SUPERSTRUCTURE

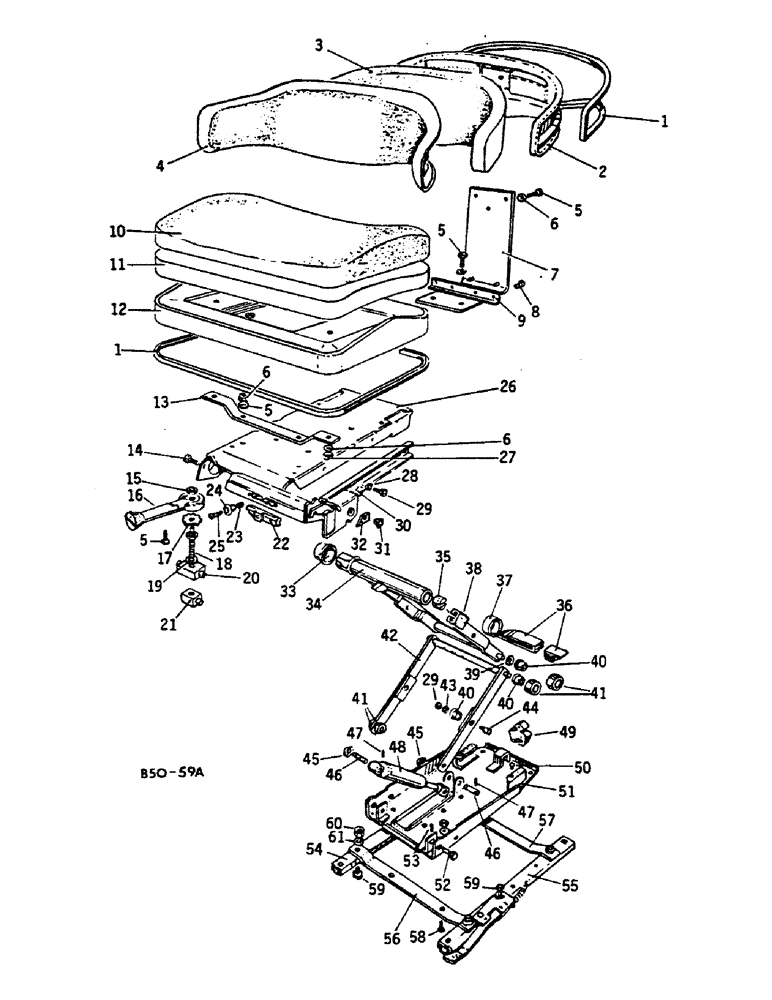

Схема запчастей Case IH 784 - (13-12) - SUPERSTRUCTURE, SEAT, WITH BEFORE AND AFTER AND HEIGHT ADJUSTMENT, BOSTROM (05) - SUPERSTRUCTURE
23
59
25
43
14
40
17
35
50
58
38
57
56
24
18
4
12
29
52
5
5
60
5
45
47
47
46
48
6
42
22
26
33
6
9
37
45
16
51
7
53
28
31
34
21
10
41
44
1
61
39
32
41
3
13
6
20
49
19
55
59
15
5
40
40
27
30
46
54
29
11
8
36
2
1

Артикул

Название

Примечание

Количество

3121421R99

SEAT ASSY, deluxe suspension, PVC

1шт.

3123336R1

BACKREST

CUSHION ASSY, back, PVC, consists of ref nos. 1 thru 4

1шт.

1

STRIP, edging, not serviced separately, order cushion assy, 3123336R1 or 3123332R1

1шт.

2

PAN, seat back, not serviced separately, order cushion assy, 3123336R1

1шт.

3

CUSHION, foam seat back, not serviced separately, order cushion assy, 3123336R1

1шт.

4

COVER, seat back cushion, PVC, not serviced separately, order cushion assy, 3123336R1

1шт.

5

30001R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

SCREW, M8-16

9шт.

6

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

11шт.

7

3123331R1

SUPPORT

seat back

1шт.

8

3125163R1

RIVET

pop

4шт.

9

3125164R1

BRACKET

1шт.

3123332R1

CUSHION, SEAT

CUSHION ASSY, PVC, consists of ref nos. 1 and 10 thru 12

1шт.

10

COVER, seat, PVC or fabric, not serviced separately, order cushion assy, 3123332R1

1шт.

11

CUSHION, foam seat, not serviced separately, order cushion assy, 3123332R1

1шт.

12

PAN, seat, not serviced separately, order cushion assy 3123332R1

1шт.

13

3123334R1

SUPPORT

BRACKET, seat tilt

1шт.

14

3123312R1

SCREW

M8 x 1.25 x 16 taptite

1шт.

15

3123326R1

NUT

clamp

1шт.

16

3123327R1

HANDLE

ASSY

1шт.

17

538570R1

GEAR

1шт.

18

3123325R1

BOLT

adjuster

1шт.

19

3123322R1

THRUST WASHER

1шт.

20

3123323R1

TRUNNION

adjuster, large

1шт.

21

3123324R1

TRUNNION

adjuster, small

1шт.

22

3123307R1

SLIDE

seat adjusting

1шт.

23

3220537R1

SPRING

slider

1шт.

24

3123309R1

BUTTON

KNOB, slider

1шт.

25

3220548R1

SCREW

M6 x 25

1шт.

26

3123313R1

SEAT PLATE

PLATE, top

1шт.

27

934310R1

NUT,M8, Cl 8

M8

10шт.

28

933965R1

LOCK WASHER,M10

2шт.

29

3123317R1

BOLT

2шт.

30

3123314R1

SHROUD ASSY.

SHROUD ASSY, RH

1шт.

31

538695R1

PLUG

end

1шт.

32

3220525R1

INDICATOR

1шт.

33

3123316R1

BUSHING

BEARING, 4mm

1шт.

34

3123315R1

LEVER

center

1шт.

35

3220529R1

RETAINER

1шт.

36

3129922R1

BAR

torsion, set of 5

1шт.

37

3109331R1

FLANGED BEARING

BEARING

1шт.

38

3220519R1

STOP

limit

2шт.

39

538565R1

WASHER

4шт.

40

3123319R1

BUSHING

BEARING

8шт.

41

3123320R1

ROLLER BEARING

4шт.

42

3220517R1

ARM

LEVER, outer

1шт.

43

934309R1

LOCK WASHER,M8

2шт.

44

3123321R1

PIVOT PIN

PIN, pivot

2шт.

45

934309R1

LOCK WASHER,M8

2шт.

46

538578R1

PIN

damper

2шт.

47

538578R1

PIN

roll

2шт.

48

3123329R1

SHOCK ABSORBER

DAMPER

1шт.

49

3220516R1

STOP

BUMPER

1шт.

50

3123308R1

BUMPER

BUTTON, bumper

2шт.

51

3220524R1

PLATE

base

1шт.

52

3123318R1

PIVOT PIN

PIN, pivot

2шт.

53

3125165R1

PIN, ROLL

3mm

2шт.

54

3123304R1

RAIL

slide RH, free

1шт.

55

3123303R1

RAIL

slide LH, adj

1шт.

3123376R1

BRACKET

stop

1шт.

56

3123305R1

BRACKET

STRAP, mounting, front

1шт.

57

3123306R1

BRACKET

STRAP, mounting, rear

1шт.

58

931237R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8

M8 x 20 csk

4шт.

59

30001R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

SCREW, M8 x 16

3шт.

60

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

61

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3123310R1

DECAL

PRODUCT GRAPHIC, instruction

1шт.

3123311R1

DECAL

PRODUCT GRAPHIC, descriptive

1шт.

3123328R1

DECAL

PRODUCT GRAPHIC, serial no.

1шт.

3123335R1

DECAL

PRODUCT GRAPHIC, TS-3

1шт.

3220518R1

PRODUCT GRAPHIC

+/-

1шт.

3220526R1

DECAL

PRODUCT GRAPHIC, bostrom

1шт.
